Tripod for Phones (100% 3D-printable)
por Sven Brähmer en Printables
A foldable "medium size" Tripod mainly for phones that is fully 3D-printable!
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Sven Brähmer.
Archivos (21)
- Tripod_Vice_Base.stl STL · 7,5 MB
- Tripod_Vice_Pusher.stl STL · 423 KB
- Tripod_Vice_Screw.stl STL · 9,6 MB
- Tripod_Ball-Joint_Base.stl STL · 5,8 MB
- Tripod_Ball-Joint_Base_Support.stl STL · 3 KB
- Tripod_Ball-Joint_Pusher_1.stl STL · 448 KB
- Tripod_Ball-Joint_Pusher_2.stl STL · 448 KB
- Tripod_Ball-Joint_Screw.stl STL · 5,2 MB
- Tripod_Base.stl STL · 6,3 MB
- Tripod_Leg.stl STL · 1,6 MB
- Tripod_Leg_Screw.stl STL · 921 KB
- Tripod_Leg_Pin.stl STL · 95 KB
- Tripod_Foot.stl STL · 2,3 MB
- Tripod_Vice_Pusher_0.2mm_PETG_MINI_1h29m.gcode GCODE · 2,4 MB
- Tripod_Vice_Base_0.2mm_PETG_MINI_3h39m.gcode GCODE · 6,1 MB
- Tripod_Leg_0.2mm_PETG_MINI_3h24m.gcode GCODE · 3,1 MB
- Tripod_Foot_0.2mm_PETG_MINI_2h13m.gcode GCODE · 4,7 MB
- Tripod_Base_0.2mm_PETG_MINI_4h10m.gcode GCODE · 5,5 MB
- Tripod_Ball-Joint_Screw_0.2mm_PETG_MINI_3h27m.gcode GCODE · 8,7 MB
- Tripod_Ball-Joint_Base_Support_0.2mm_PETG_MINI_2h12m.gcode GCODE · 5,5 MB
- Tripod_Ball-Joint_Base_0.2mm_PETG_MINI_4h2m.gcode GCODE · 7,2 MB
- Categoría
- Tecnología
- Formatos
- STL, GCODE
- Descargas
- 2,569
- Publicado
Sobre este modelo

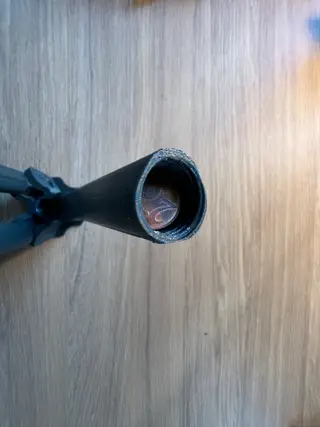

I brought a new phone a while ago and I wanted to print a Tripod to take pictures of the night sky. However, I didn´t quite find anything that I wanted, so I decided to design my own. This is my first project I upload so I don´t really know how well it prints with other printers and so on. The tolerances are relatively tight and quite a few parts need to fit so it´s not tooo easy to print I´d say. However, I would like some feedback, to know what I could improve. NOTE: Screws and Pins should be printed with 100% Infill, for better stability. “Tripod_Ball-Joint_Base” should be printed vertically with the threading at the bottom (support on build plate). “Tripod_Vice_Base” also vertically with the “Ball” at the top (support on build plate). “Tripod_Leg” horizontally with support on build plate. PETG/ABS… is recommend, it should work in PLA, however I don´t think it is the right Material for a Tripod. (I printed in Prusament PETG) Also, you can use the hole in the Leg to put 1 or 2 Cent coins in it, to lower the center of mass and ultimately the stability of the Tripod.
Descripción original del autor, publicada en Printables.
