Tripod adapter for Peak Design plate v3
por rorys3D en Printables

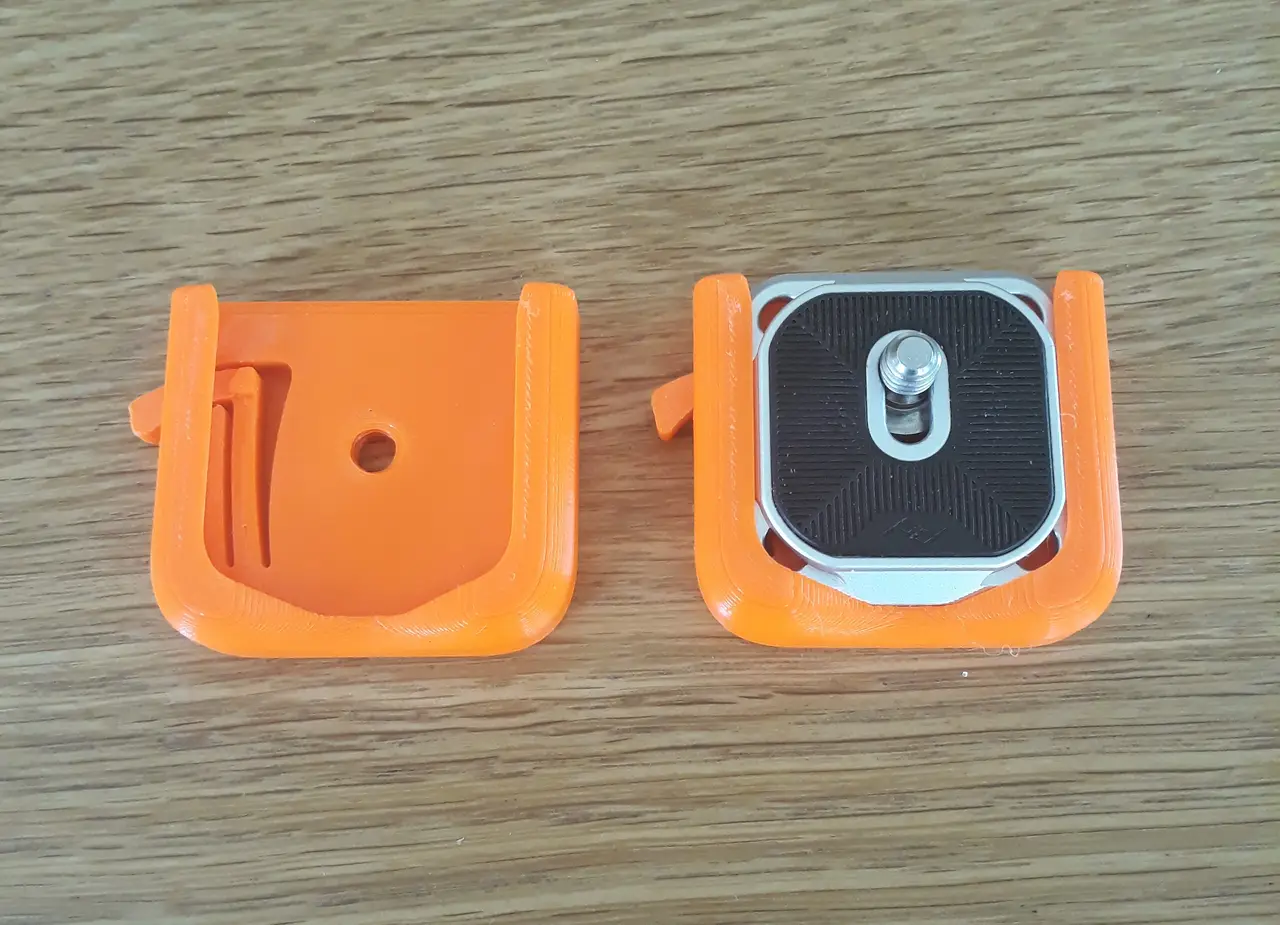

Tripod adapter for Peak Design plate with latch and button on compliant lever integrated into print.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a rorys3D.
Archivos (5)
- Categoría
- Tecnología
- Formatos
- STL, 3MF, STP, GCODE
- Descargas
- 360
- Publicado
Sobre este modelo
Tripod adapter for Peak Design plate v3 has integrated latch and easily accessible eject button on compliant lever. The adapter has standard ¼" (6,35mm) threaded hole for tripod mounting. There is also screw mount adapter in the files (added 22/07/07). There are inside slots in the model to add perimeters and reinforce the model where needed, so please don't remove them. Printing: It is better to use PETG due to it's flexibility. I used 3 perimeters and Thick bridges option ON. Then you need to turn on supports because of the button that protrudes from the body. Post processing: 1/ remove support that's under the button 2/ push a lot on the button to break it from the body
