Tridemorph 3D Molecular Model — CAS 24602-86-6

Tridemorph (C19H39NO, CAS 24602-86-6) — a free educational 3D molecular model for teachers and students, by MolGod.org. No legend required: the element symbol is engraved on each atom.

Turn the model in your hand to see the shape of Tridemorph: one 6-membered ring, and 60 bonds in total (all of them single). Give each pair of students the model and a blank sheet: recording every engraved symbol should lead them to 19 C + 39 H + 1 N + 1 O, which is 60 atoms. Functional groups to find on the model: ether linkage (C-O-C) and tertiary amino group (-NR2). No R/S label is assigned here, although Tridemorph contains two stereocentres: ask the class which arrangements are possible. It makes chirality, enantiomers and CIP (R/S) rules, as well as amines and basicity easier to see.

This model is part of the free MolGod.org collection of engraved molecules for education. Teachers: the engraved symbols let students work with the model without a separate key.

Full record and more free models: https://molgod.org/molecule/24602-86-6/?utm_source=myminifactory&utm_medium=referral&utm_campaign=edu-3d-models Licence & provenance: https://molgod.org/licenses/stl/24602-86-6/ Same file on Wikimedia Commons: https://commons.wikimedia.org/wiki/File:Tridemorph-3D-molecular-model-engraved-CAS-24602-86-6.stl

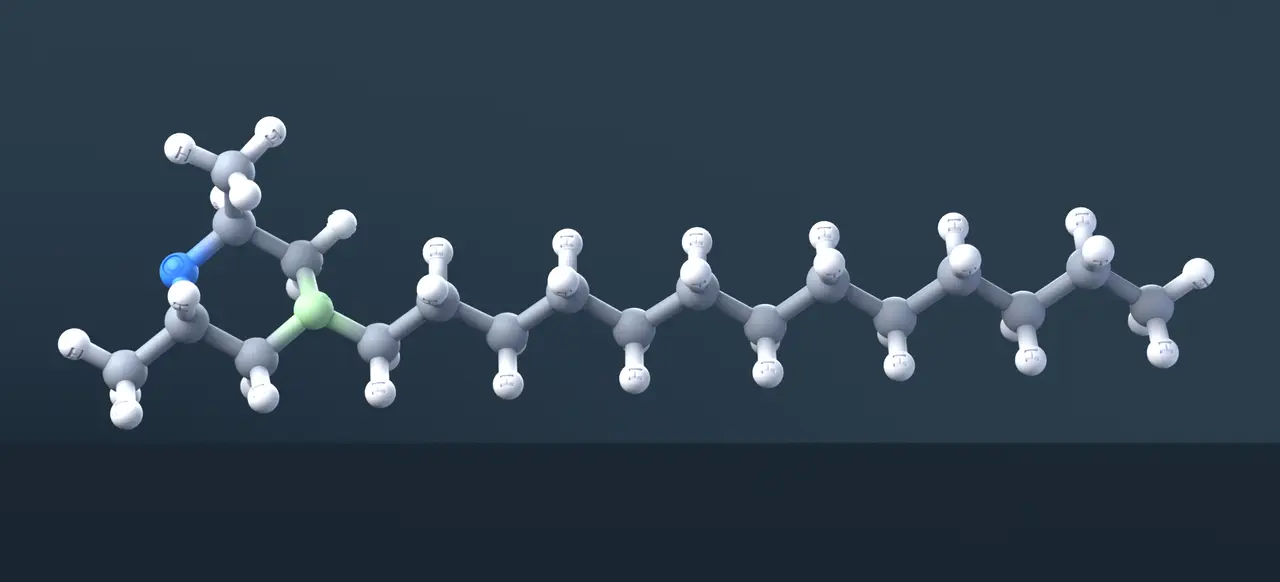

A ball-and-stick model of Tridemorph with each element symbol recessed into its atom sphere, generated by MolGod.org from a PubChem-computed 3D conformer (not an experimental crystal structure); atomic coordinates and connectivity are unchanged. STL mesh: 634,190 triangles, closed (watertight) single solid. Coordinates in ångström (STL stores no unit) — scale the model deliberately in your slicer.

Names in other languages: 2,6-Dimethyl-4-tridecylmorpholin (de); 2,6-dimetylo-4-tridecylomorfolina (pl).

Chemical identity - CAS Registry Number: 24602-86-6 - Molecular formula: C19H39NO - Molar mass: 297.5 g/mol (exact mass 297.303164868) - IUPAC name: 2,6-dimethyl-4-tridecylmorpholine - MolGod ID: MG_334-162-603-14 (https://molgod.org/id/MG_334-162-603-14) - PubChem CID: 32518 (https://pubchem.ncbi.nlm.nih.gov/compound/32518) - Wikidata: Q209280 (https://www.wikidata.org/wiki/Q209280) - EC number: 246-347-3 - ChemSpider ID: 30142 - InChIKey: YTOPFCCWCSOHFV-UHFFFAOYSA-N - SMILES: CCCCCCCCCCCCCN1CC(OC(C1)C)C

Required attribution (CC BY-SA 4.0): "Tridemorph 3D model by MolGod.org — https://molgod.org/molecule/24602-86-6/ — CC BY-SA 4.0" Licence text: https://creativecommons.org/licenses/by-sa/4.0/
