Trainer Balisong (aka butterfly knife)
por Eclsnowman en Printables
My son wanted a trainer balisong for his Halloween costume. So I designed this one.
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Eclsnowman.
Archivos (8)
- Pin.SLDPRT SLDPRT · 78 KB
- Blade.SLDPRT SLDPRT · 300 KB
- 91828A211_18-8 Stainless Steel Hex Nut.SLDPRT SLDPRT · 358 KB
- 92095A182_Button Head Hex Drive Screw.SLDPRT SLDPRT · 764 KB
- Handles.sldprt SLDPRT · 706 KB
- Balisong.STEP STEP · 2,2 MB
- Balisong_Parts_Plated.stl STL · 1,1 MB
- Blade_Rounded_Tip(Kid-Friendly).STL STL · 291 KB
- Categoría
- Cosplay y props
- Formatos
- SLDPRT, STEP, STL
- Descargas
- 6,442
- Publicado
Sobre este modelo

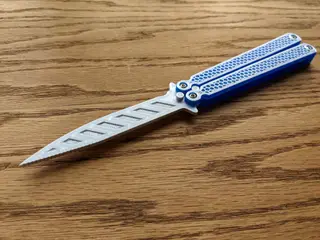

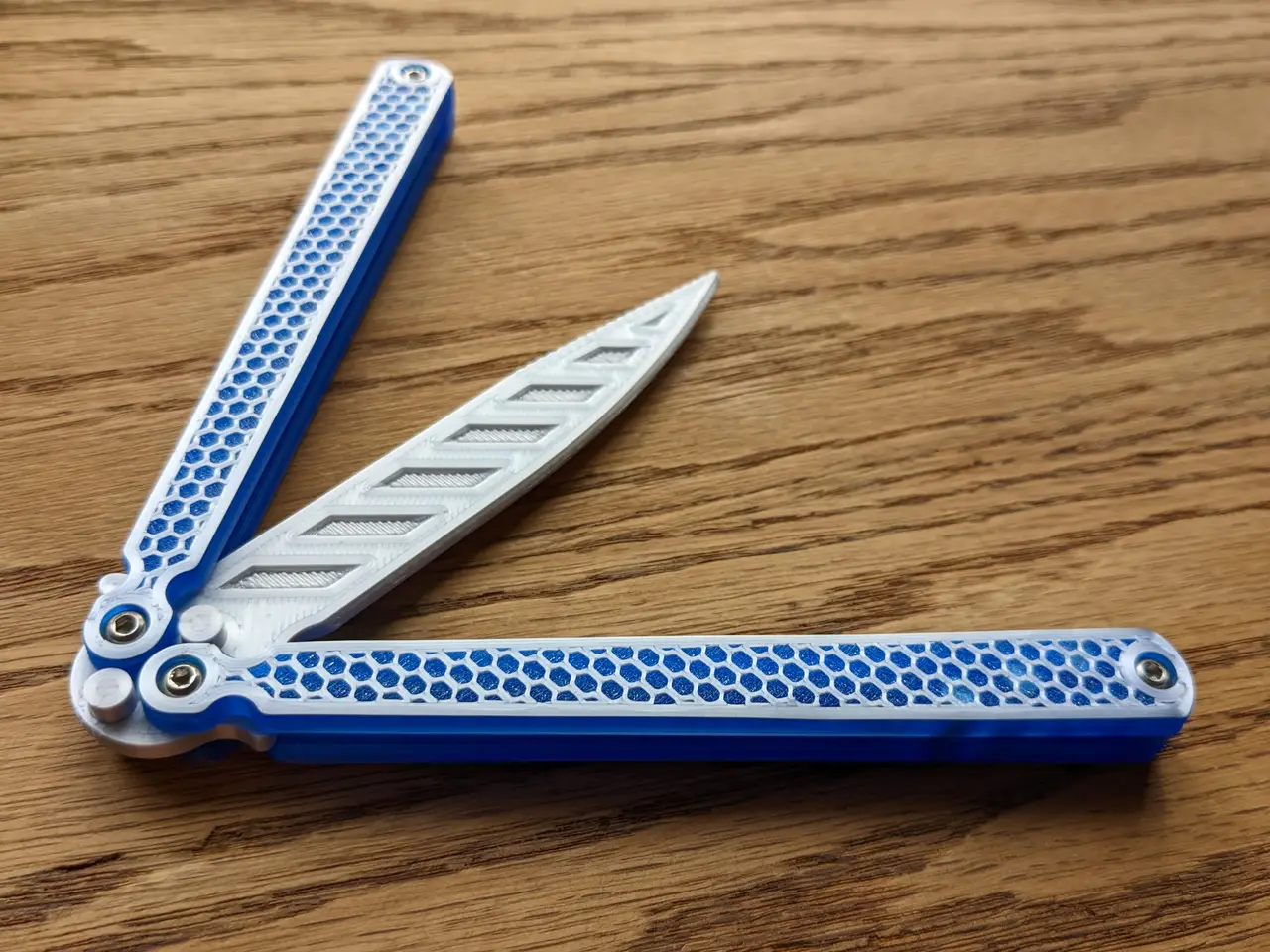

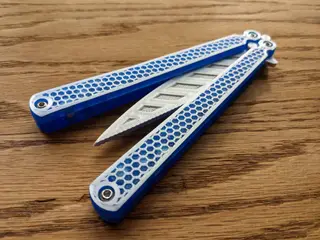

My son wanted a trainer balisong (aka butterfly knife) for his Halloween costume. I found a few 3D Printable designs out there and printed them. But the weight and size never seemed right. So, I figured I would just custom design one for him. Print Settings: I printed the first few layers with an accent color, no bottom layers, and 30% honeycomb infill. Then I did a M600 color change and switched to 100% rectilinear infill for weight. The only hardware required is Qty:4 M3x10mm button heads, and Qty:4 M3 hex nuts. If you want more weight you can swap the printed pins for 5mm OD metal pins (qty:6 x 10mm, qty:2 x 12mm). I have included the plate of STL's as well as a STEP, the original Solidworks files (sorry can't upload the assembly… printables still doesn't support the .sldasm file type). I also included a link to an Onshape import. Onshape: https://cad.onshape.com/documents/e653a823015d37890a0a78f6/w/8b21972e8d6b2f68293fe0e7/e/1a2cb4fab845d202c35e7a39?renderMode=0&uiState=633b02c5179c912951c45efd Video of my feeble attempt at a balisong flourish: https://photos.app.goo.gl/tg8wC2idECXPQcQW6 Modify and customize it to your hearts content. Update: Added a rounded tip version of the blade as an optional download (More Kid Friendly)
Descripción original del autor, publicada en Printables.
