Toybox Alpha v1 Klipper Conversion SKR Pico

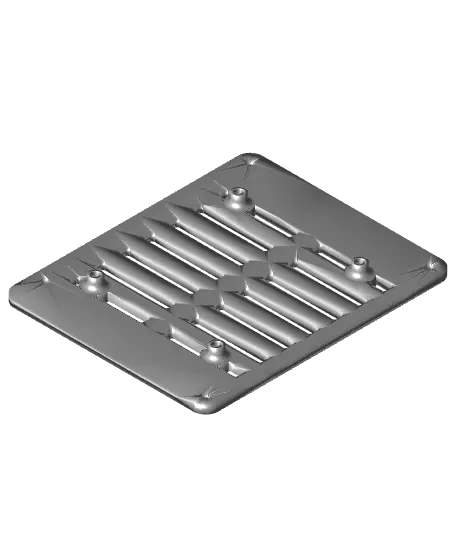

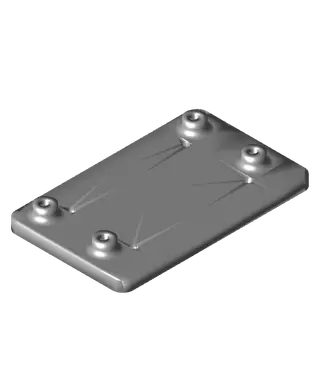

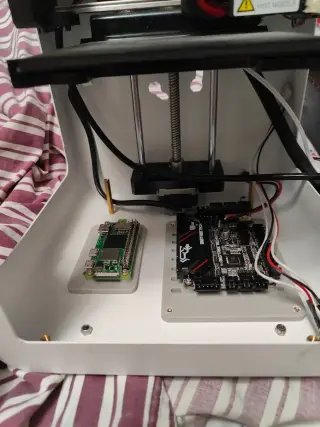

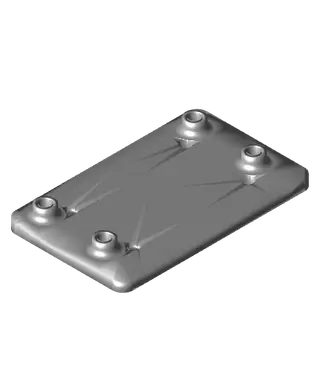

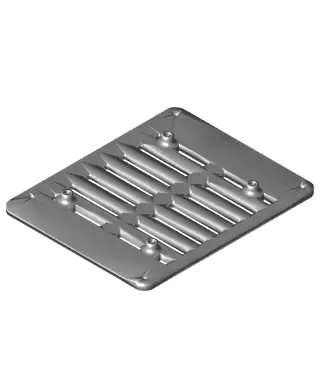

Toybox 3D Printer SKR Pico and Raspberry Pi Zero Mounts Upgrade your Toybox 3D printer with custom mounts designed to replace the OEM hardware with an SKR Pico board and a Raspberry Pi Zero. Two versions are included to suit different preferences: heat set and non-heat set.

Versions Available

1. Heat Set Version Uses heat set inserts for added durability and stability. Frame Mount Holes: M3x4x5 heat set inserts. Board Mount Holes: M2.5x4.6x5.8 heat set inserts. 2. Non-Heat Set Version For those who prefer not to use heat set inserts. Recommend buying taps of the appropriate diameter to thread the holes for secure mounting. Klipper Conversion Tips

Converting your Toybox 3D printer to Klipper firmware is relatively straightforward. Here are a few key points to keep in mind:

Endstops: Replace the original endstops with 3-wire Hiletgo ones. Heater Cartridge: Trim the plug on the heater cartridge to fit with the new setup. Plug and Play: Apart from the above changes, the conversion is mostly plug-and-play. Additional Files

A printer.cfg file is included as a text file. While this configuration file is fully functional, the extruder may require some fine-tuning for optimal performance.

Performance Notes

With a 70-watt heater cartridge installed, consistent print speeds of 200mm/s with 8,000 mm/s² acceleration can be achieved. This setup significantly enhances the Toybox 3D printer's capabilities when running Klipper firmware.

Feel free to download, print, and enjoy! If you have any questions or need further guidance, I’m here to help.
