Parametric, kid-friendly ergonomic toy screwdriver handle designed for a 9mm square bit.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a sina chavoshi.
Archivos (1)
- Categoría
- Herramientas
- Formatos
- SCAD
- Descargas
- 0
- Publicado
Sobre este modelo
# Toy Screwdriver Handle (9mm Square Bit)

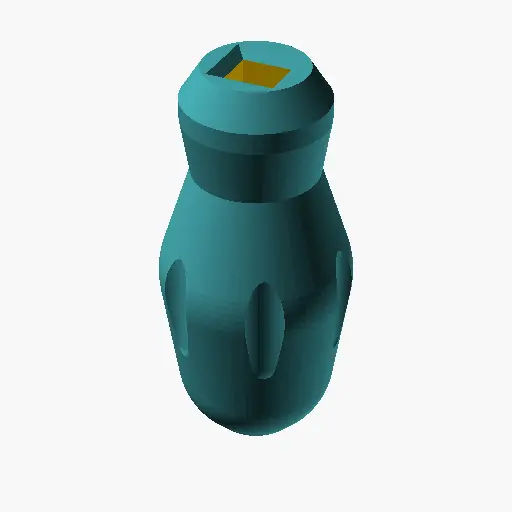

This is a parametric, kid-friendly ergonomic toy screwdriver handle designed for a 9mm square bit. It features a bulbous palm swell, a rounded rear pommel, an ergonomic finger waist, a forward safety collar to prevent fingers from slipping, tactile grip flutes around the circumference, a tapered lead-in funnel chamfer to guide the bit in easily, and an optional internal pocket for an 8x3mm retention disc magnet.
## Key Parameters - bit_width (9.0mm): Nominal width of the square screwdriver bit. - bit_clearance (0.3mm): Per-side clearance for 3D printing fit. - bit_depth (25.0mm): Insertion depth of the square bit socket. - handle_length (80.0mm): Total handle length sized for kids' hands.
## License This model is free to use, modify, and edit for personal applications with attribution.
You can find this model and others in my GitHub repository: https://github.com/SinaChavoshi/3d_printer_agentic_models This is a fully parameterized model! You can play around with it using OpenSCAD to modify its dimensions and features to fit your exact needs.
