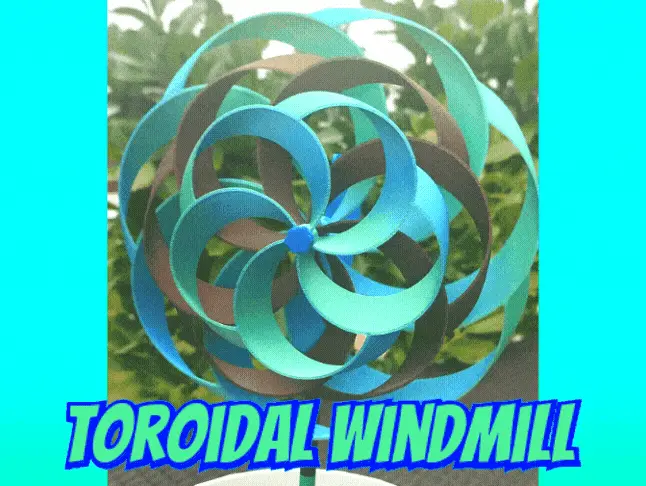

Toroidal Windmill - Customizable system

Toroidal Windmill - Self adjusting turbine Looks like a spinning flower and no much wind is needed. YouTube Short

- Beautiful Windmill with toroidal Propeller Blades

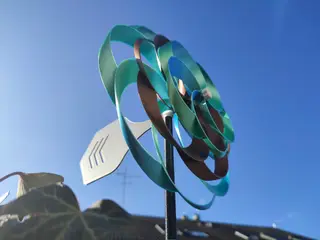

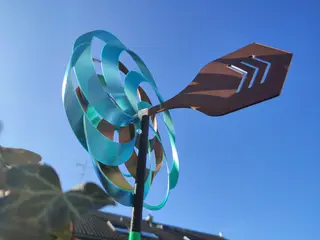

- Self adjusting to wind direction (Tail Blade Reworked)

- 100% printed, no Screws or tools needed

- You can add 3 Propellers on one Axle with 2 distances

- Full customizable with different propeller sizes and directions (I plan to add more cool propeller types as well)

- Rods are stack able to your needed height

Printing: You can choose Propellers from 3 Print Profiles

- Basic Parts with Left& Right Propeller to choose

- Additional Propeller Blades

- Additional Slower Propeller *New

You can mix the propellers from these profiles.

- added one profile for A1mini without the biggest blade as well

The rod could be a bit difficult to print, i added custom support, but clean your buildplate and apply some glue.

PETG & PLA tested👍🏼 Assembly: Info:

- Added custom support to the horizontal printing rod

- Added optional longer axle for more distance between propellers (10mm instead of 5mm). With stronger wind the bigger blades should not collide.

The Pitch from the Basic Blades:

- Big - Pitch 195mm

- Med - Pitch 170mm

- Small - Pitch 135mm

Additional Propeller Blades with different numbers of Wings:

- Big - Pitch 190mm

- Med - Pitch 160mm

- Small - Pitch 130mm

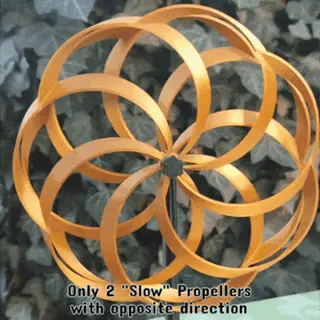

Additional “Slower” Propeller Blades:

- Big - Pitch 400mm

- Med - Pitch 325mm

- Small - Pitch 250mm

Thanks to all followers and don't forget the virtual handshake 👍 ….Happy Printing
