Top Surface Ironing Test

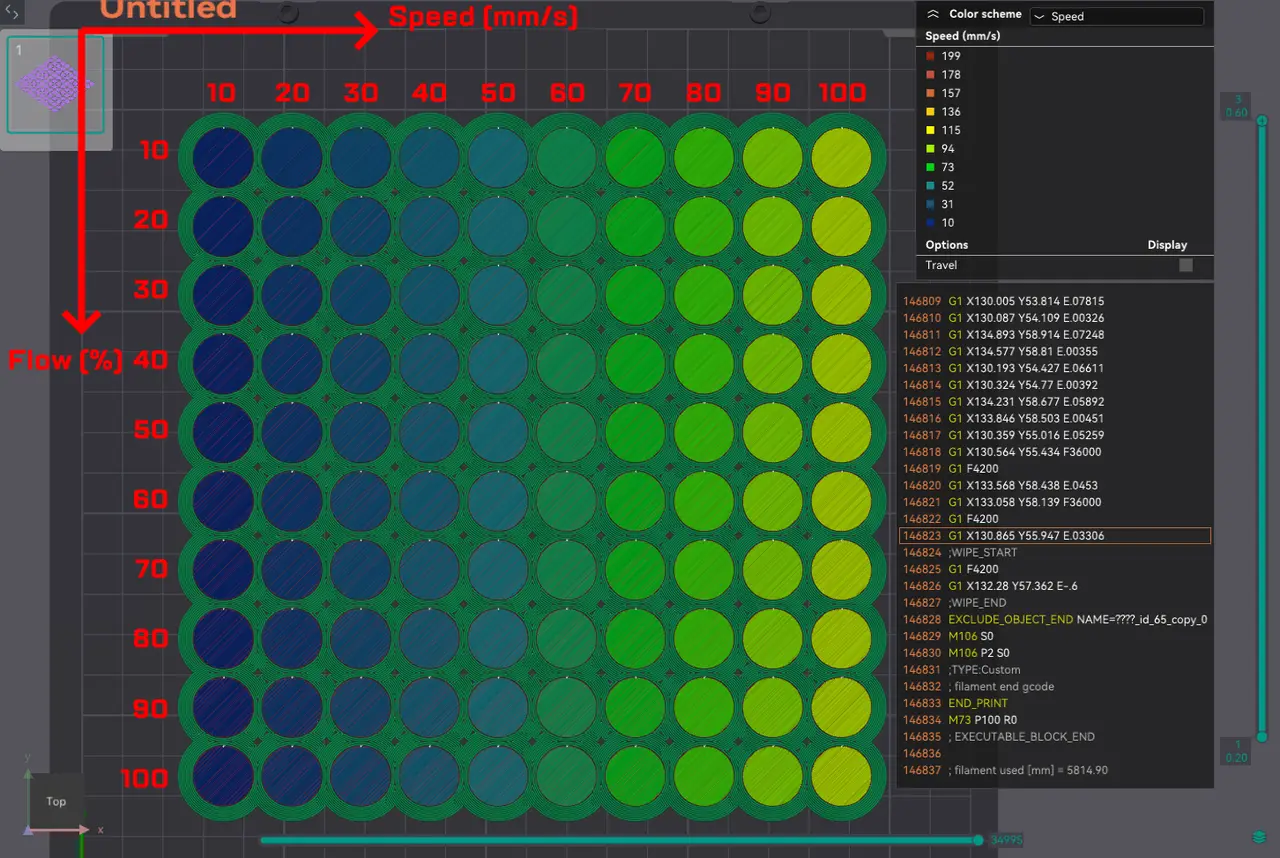

This calibration test is designed to find the ideal ironing settings for achieving a smooth top surface when printing with a 3D printer. The model consists of a 10x10 array of flat cylinders. Along the X-axis, the ironing speed increases from 10 mm/s to 100 mm/s, while the Y-axis varies the flow rate from 10% to 100%. This allows for a precise evaluation of how different settings impact surface finish and print quality. The project is designed for OrcaSlicer. ⚠ Ender 3 V3 KE: With a large number of separate objects on the build plate (≈100), some users experienced incorrect Z behavior when slicing in OrcaSlicer.

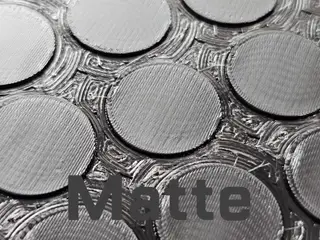

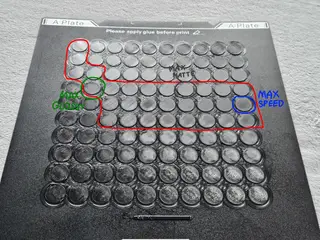

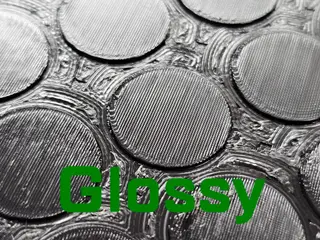

For PrusaSlicer users: check out this remix by @Robin_3313596. Surface Types: This test allows you to evaluate three different surface outcomes: Matte and the flattest surface – Achieved by balancing ironing speed and flow rate for a uniform, non-reflective finish. Glossy and the flattest surface – Optimized for a reflective, polished look with minimal surface imperfections. Maximum print speed with acceptable quality – Finding the highest possible ironing speed that maintains a reasonable surface quality. Test Details (As Shown in Photos): Printed on Creality K1C using black PETG. Print time: 1h 31m. Filament usage: 17.76g. A brim is required to connect all cylinders into a single piece. Advantages: Low filament consumption. Fast print time. Easy comparison of settings. Ability to disable unnecessary parameters after evaluation. This test provides a simple and efficient way to fine-tune your ironing settings and improve the surface quality of your prints. Experiment with different materials and find the perfect balance for your needs! Featured Model in Video My Top Surface Ironing Test model was featured in Uncle Jessy’s recent YouTube guide to mastering ironing settings. Check it out:

Thanks to Uncle Jessy for the demo — hope this helps you dial in the perfect top surface finish on your prints!
