Sobre este modelo

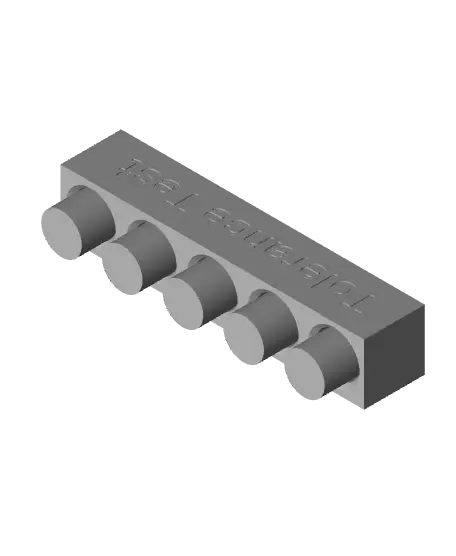

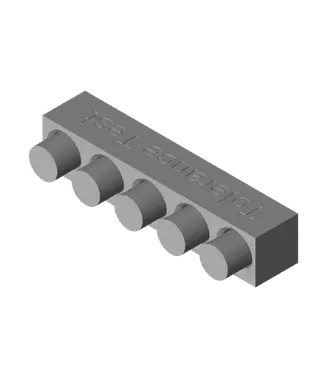

This test is very useful when you want to design hole and shaft to know what is the minimum clearance that our machine can print.

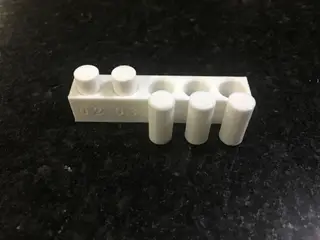

Just print the part and once you're done, try removing the shafts manually, the smallest measurement that can be removed will give you an idea of the minimum tolerance to which your machine can print a hole - shaft.

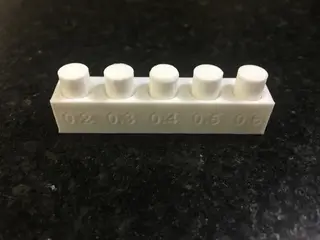

Tolerance: 0.2 - 0.3 - 0.4 - 0.5 - 0.6
Printing Conditions - Nozzle Size : 0.4 - Layer Height : 0.2 - Initial Layer Height : 0.2 - Line Width : 0.4 - Wall Line Count : 3 - Top/Bottom Thickness : 0.8 mm - Infill Density : 8% - Fill Gaps Between Walls : Nowhere
Estimated printing Time = 1h ~ 1h15min
