Titan
por TomKnox en Printables

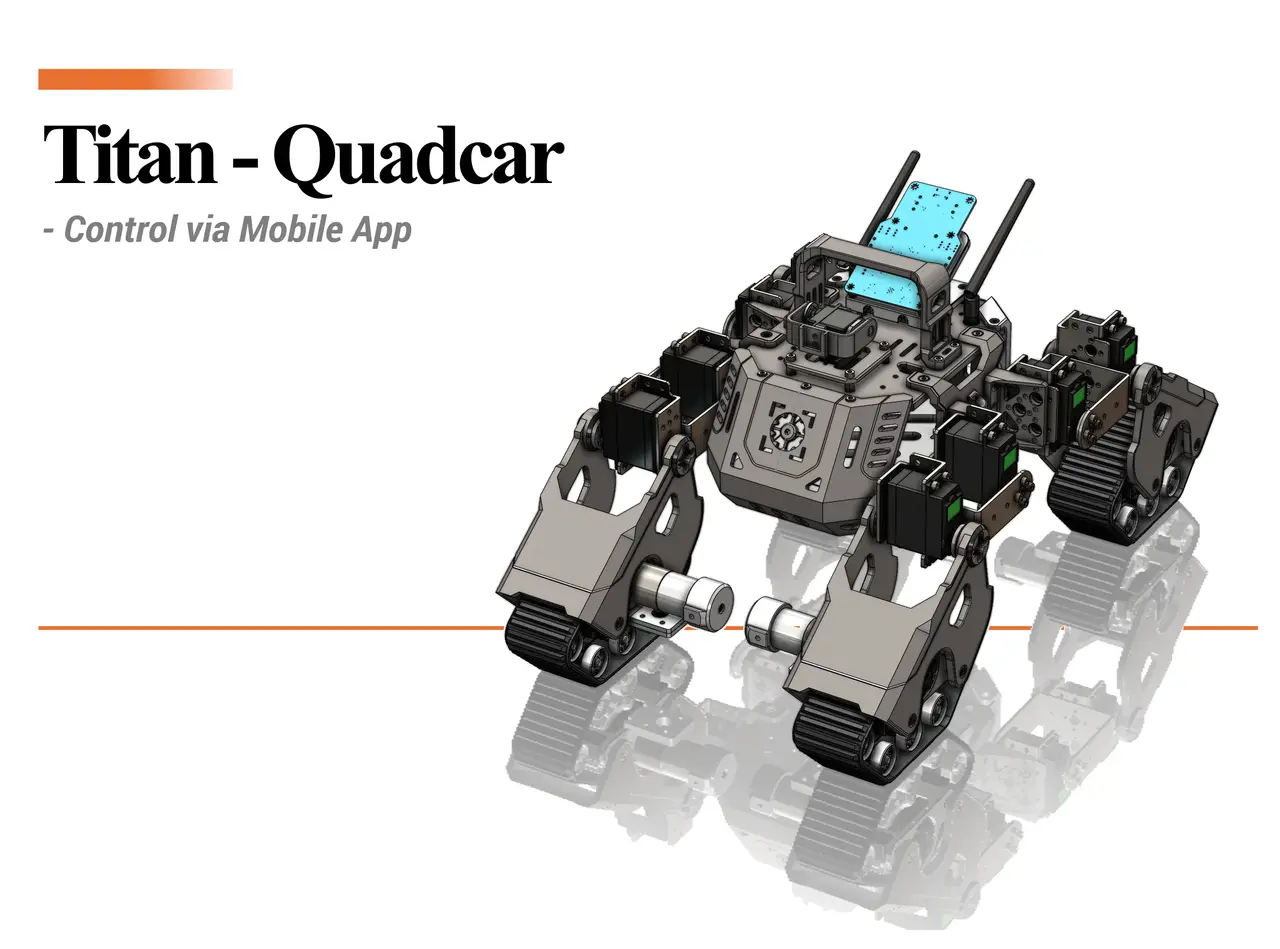

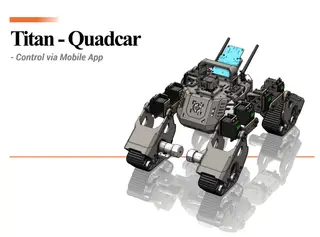

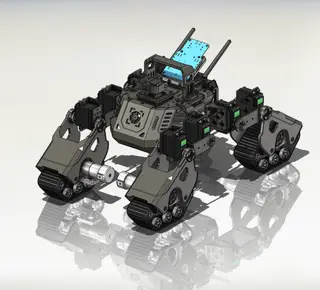

A RC-controlled quadruped with Tracks.
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a TomKnox.
Archivos (23)
- 0013-0303 DC_Motor_Bracket.stl STL · 32 KB
- 0013-0112 Servo Bracket Distance.stl STL · 30 KB
- 0013-0101 MainPCB_Bracket.stl STL · 43 KB
- 0013-0102 BatteryDoor.stl STL · 51 KB
- 0013-0108 MainBody_Frame.stl STL · 115 KB
- 0013-0107 LeftSidePanel.stl STL · 86 KB
- 0013-0103 Handle.stl STL · 141 KB
- 0013-0106 MainBody_Handles.stl STL · 37 KB
- 0013-0110 BodyFlantParts.stl STL · 34 KB
- 0013-0111 Top Cover.stl STL · 285 KB
- 0013-0109 Dorsal Plate.stl STL · 34 KB
- 0013-0104 LegBody_Interface.stl STL · 116 KB
- 0013-0105 MainBodyFront.stl STL · 584 KB
- 0013-0203 Gimbal_Arm.stl STL · 52 KB
- 0013-0201 9g_ServoWheel.stl STL · 47 KB
- 0013-0204 Gimbal Bracket.stl STL · 106 KB
- 0013-0202 Gimbal_Base.stl STL · 43 KB
- 0013-0302 Track_OuterCover.stl STL · 46 KB
- 0013-0301 Track_Housing.stl STL · 224 KB
- 0009-1000_Titan_BOM.pdf PDF · 248 KB
- ESP32Controller-Android APK.zip ZIP · 2,7 MB
- Source code.zip ZIP · 10,9 MB
- Titan Bill of Material.pdf PDF · 74 KB
- Categoría
- Repuestos
- Formatos
- STL, PDF, ZIP
- Descargas
- 557
- Publicado
Sobre este modelo
Titan A RC-controlled quadruped with Tracks. This listing is for the printable model/CAD files. The full project source of truth lives on GitHub, where the build resources can be updated without keeping PDFs, code archives, or documentation bundles attached to the 3D-printing sites. Build resources - Project repository - Bill of Material - Assembly / build guide - Source files
Recommended tools and supplies Useful shop supplies for this build: - Soldering iron TS101: AliExpress / Amazon / regional option - Electric precision screwdriver: AliExpress / Amazon / regional option - Allen key set: AliExpress / Amazon / regional option - Torx key set: AliExpress / Amazon / regional option - Wire stripper: Amazon / regional option - Wire cutter: AliExpress / Amazon / regional option - Heat insert press tool: AliExpress / Amazon / regional option - Crimp tool: AliExpress / Amazon / regional option - Filament: PETG/ASA/ABS/PC for structural parts, PLA for cosmetic parts, and TPU where the design calls for flexible feet/tires.
What is included here - Printable model files - CAD/source model files where available - Images and platform-specific print/model metadata
For ordering, electronics, firmware, wiring, and assembly details, use the GitHub links above as the current source of truth.
Descripción original del autor, publicada en Printables.
