Tiny printer test - quick print!
por splabble en Printables
The TINY printer test is designed to print in minutes, so you can quickly tweak & test your printer settings and get…
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a splabble.
Archivos (1)
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 5,976
- Publicado
Sobre este modelo

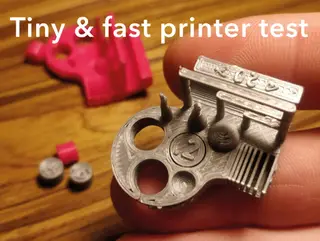

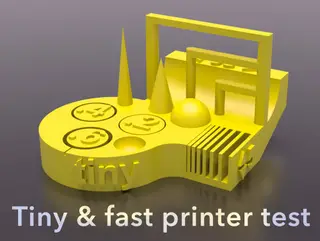

*TheTINY printer test* is designed to print in minutes, so you can quickly tweak & test your printer settings and get better prints.**

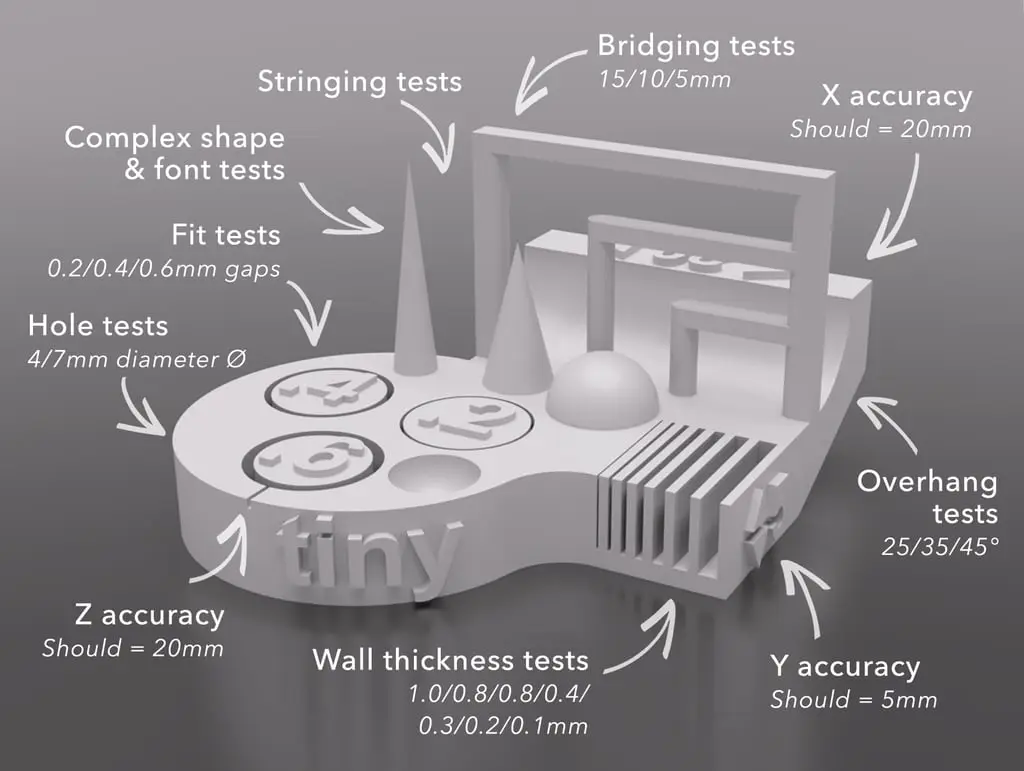

Just a few centimetres across, it can print in as little as 10/15 mins and includes 10+ different tests:
- Hole fit tests (0.2/0.4/0.6mm gaps)
- Bridging test (15/10/5mm)
- Dimensional accuracy tests (X/Y/Z/ØXZ/ØYZ)
- Overhang tests (25/35/45°)
- Wall thickness tests (1.0/0.8/0.8/0.4/0.3/0.2/0.1mm)
- Stringing & retraction tests
- Complex shape and font tests
- Hole test
- First layer adhesion
Print without supports, 20%+ infill and whatever settings you want to test. The slower you print and smaller the layer height the better it is likely to look.
Please do comment with your suggestions on how it could be improved.
Category: 3D Printing Tests
Descripción original del autor, publicada en Printables.
