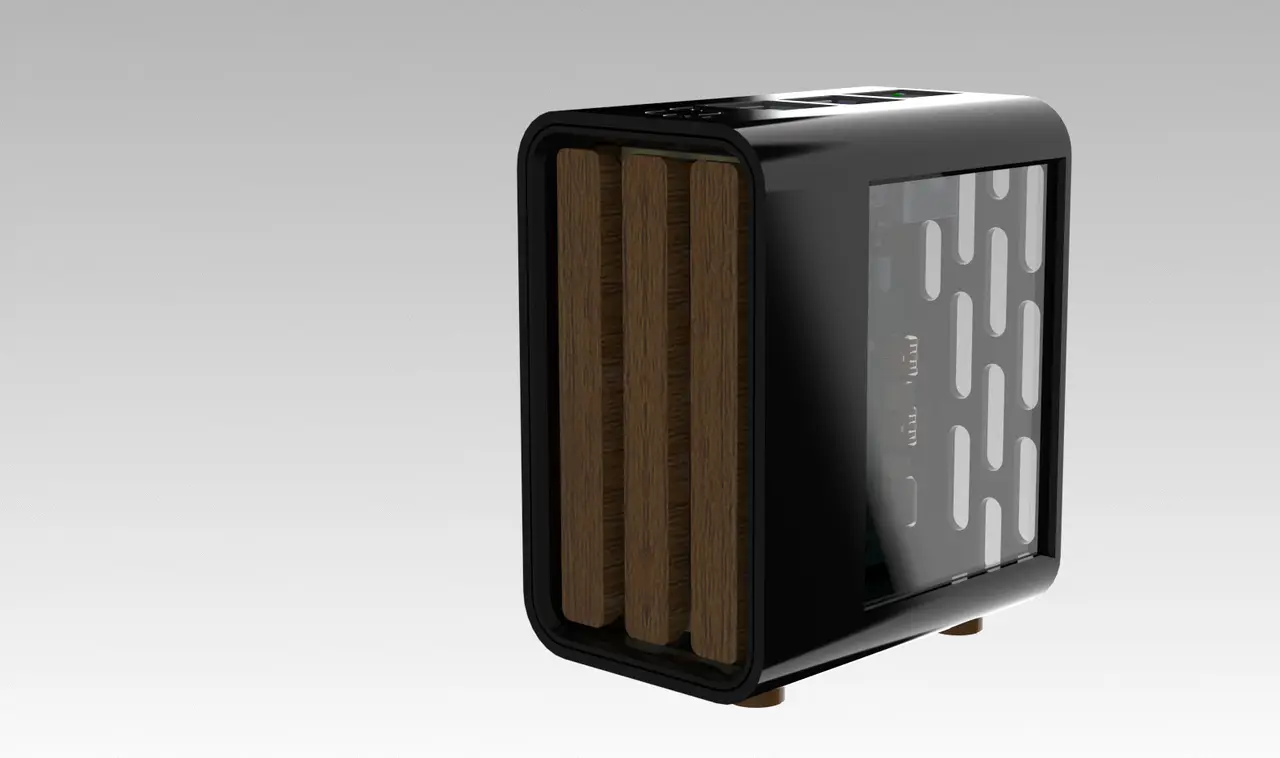

Tiny PC raspberry Pi 5 case with wooden front
por TechX en Printables
The tiny Pi5 case from Computex 2024 you all wanted to have...
Licencia
Solo uso personalCC BY-NC-ND 4.0 — Atribución, no comercial, sin derivadas
Solo para uso personal, sin modificarlo y dando crédito. No se permite vender ni redistribuir cambios.
Al descargar aceptas respetar la licencia y dar crédito a TechX.
Archivos (10)
- PiCase_base.stl STL · 1,3 MB
- PiCase_wood_mount.stl STL · 338 KB
- PiCase_base_with_support.stl STL · 1,4 MB
- PiCase_wood_mount_with_support.stl STL · 344 KB
- PiCase_top_io.stl STL · 78 KB
- PiCase_back_io.stl STL · 79 KB
- PiCase_window_dummy.stl STL · 1 KB
- PiCase_wood_dummy.stl STL · 18 KB
- PiCase_wood_dummy_with_back_holes.stl STL · 51 KB
- PiCase_feet_dummy.stl STL · 28 KB
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 644
- Publicado
Sobre este modelo
Fractal now released the files for the North Pi on their homepage: https://www.fractal-design.com/north-pi-3d-files/ --- I designed a Pi 5 case quite similar to the Fractal North you saw on the Computex 2024.
Right now this is work in progress and I would like to hear your feedback on the fit and the printability, because I don't own a Pi 5.
Change log: 11.07.24 - added a STL with screw holes in the wood dummy 13.06.24 - added files with build in supports and guide faces for the feet and a feet dummy file 12.06.24 - initial release
I would recommend PETG-CF with a 0.4 nozzle and 0.2 layer. The base should be printed with the front facing upwards.
You will also need: 4x 2.5x8mm wood screws for the Pi 2x 40mm fans, max 10mm deep 4x M3x14 screws for the 40(x10)mm fans, or shorter acc the fan depth 4x heat inserts M3x5x4 (Voron) 3x strips of wood with 80x5x10mm 6x 3x6mm countersunk wood screws for the front 1x piece of acrylic sheet 55.5x72.5x1.0mm for the window (maybe an old CD case?) 4x Ø10mm wooden feet with ~4mm length and some VHB tape or super glue
