Thor - Open Source, 3D printable Robotic Arm
por Angel LM en Thingiverse
Important Note: I suggest you to go to Thor's Website or Thor GitHub Repository in order to download the latest version! <hr/> Thor is an Open Source and printable robot arm with six degrees of freedom. Its configuration (yaw-roll-roll-yaw-roll-yaw) is the same used by most of the manipulator...
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Angel LM.
Archivos (49)
- Art1FanHolder.stl STL · 194 KB
- Art1Bot.stl STL · 520 KB
- Art1Top.stl STL · 563 KB
- Art1GearMotor.stl STL · 439 KB
- Art56Interface.stl STL · 392 KB
- Art1OptoFix.stl STL · 128 KB
- Art2BodyACover2.stl STL · 206 KB
- Art2MotorGear.stl STL · 531 KB
- Art2BodyUnion.stl STL · 419 KB
- Art2SideCover.stl STL · 119 KB
- Art2BodyACover1.stl STL · 515 KB
- Art2BodyAWindow.stl STL · 327 KB
- Art2BodyBCover.stl STL · 295 KB
- Art2BodyB.stl STL · 1,8 MB
- Art2BodyA.stl STL · 1,8 MB
- Art4BearingFix.stl STL · 31 KB
- GripperFinger.stl STL · 387 KB
- Art4BearingPlug.stl STL · 23 KB
- BaseBearingFix.stl STL · 198 KB
- Art3TensionerBody.stl STL · 18 KB
- Art4MotorFix.stl STL · 227 KB
- Art56MotorCoverRing.stl STL · 225 KB
- Art23Optodisk.stl STL · 130 KB
- Art4Optodisk.stl STL · 272 KB
- Art4BodyFan.stl STL · 138 KB
- BaseBoxCover.stl STL · 258 KB
- GripperArm.stl STL · 117 KB
- CommonBearingFix.stl STL · 26 KB
- Art3TensionerPulley.stl STL · 27 KB
- GripperActiveArm.stl STL · 1,3 MB
- GripperTop.stl STL · 987 KB
- Art4Body.stl STL · 1,3 MB
- Art56Interface.stl STL · 392 KB
- Art56GearPlate.stl STL · 1008 KB
- BaseBoxBody.stl STL · 1,9 MB
- Art4BodyBot.stl STL · 567 KB
- Art56MotorHolderB.stl STL · 263 KB
- Art56MotorHolderA.stl STL · 275 KB
- CommonBearingFixThrough.stl STL · 32 KB
- Art3Pulley.stl STL · 431 KB
- BaseBot.stl STL · 2,2 MB
- BaseTop.stl STL · 179 KB
- Art4TransmissionColumn.stl STL · 2,0 MB
- GripperBot.stl STL · 977 KB
- Art4MotorGear.stl STL · 500 KB
- GripperPassiveArm.stl STL · 1,1 MB
- Art3Body.stl STL · 1,6 MB
- Art4BearingRing.stl STL · 1005 KB
- Art1Body.stl STL · 3,1 MB
- Categoría
- Varios
- Formatos
- STL
- Descargas
- 52,104
- Publicado
Sobre este modelo

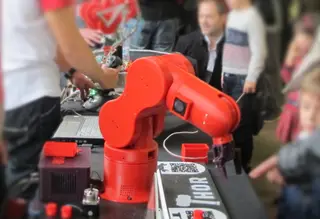

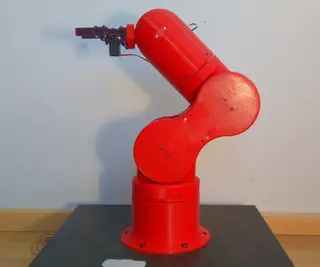

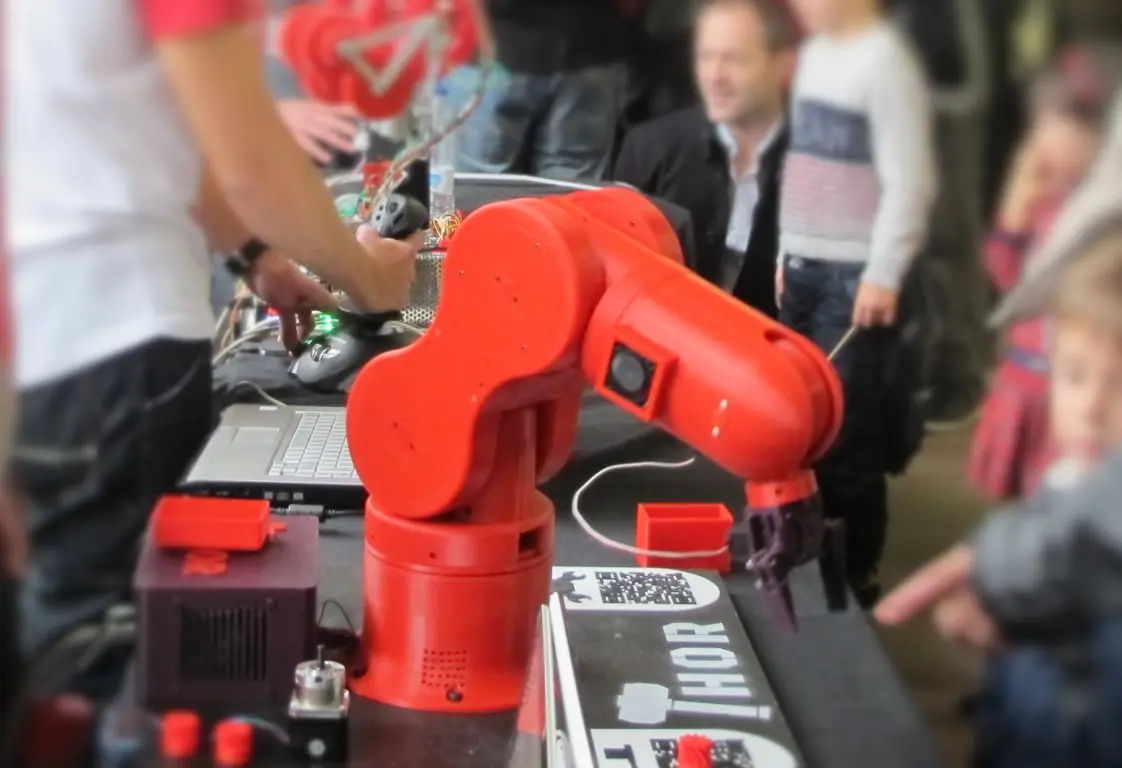

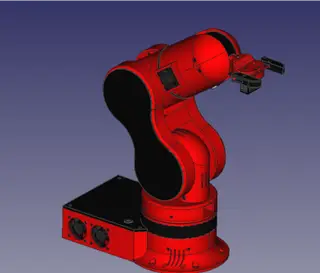

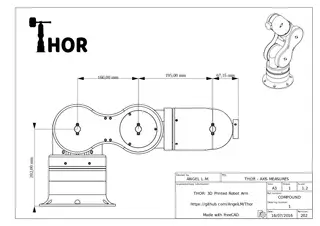

Important Note: I suggest you to go to Thor's Website or Thor GitHub Repository in order to download the latest version! <hr/> Thor is an Open Source and printable robot arm with six degrees of freedom. Its configuration (yaw-roll-roll-yaw-roll-yaw) is the same used by most of the manipulator robots on the market. In its extended position, Thor is about 625mm high and can lift loads up to 750 grams. The project started in 2015 as a final degree project called “Design and impplementation of an Open Source, 3D printed 6DOF robotic arm”. Since then, this project has continued to develop little by little. The main purpose of this project was to design a robot that could be used in universities and schools to teach robotics.With this in mind, the design had to be affordable and accessible. Releasing the source files and doing so under an open source licence was the best option: anyone could study any element of the robot in depth and, moreover, modify or adapt it to their needs. Thor has been developed using only open source tools: FreeCAD for the 3D modeling, KiCAD for the PCB design and GBRL as firmware for the control electronics. In this way, access to knowledge can be guaranteed to anyone, anywhere, without any economic cost. At Thor's Website will find more info about this project, manuals, list of materials, the community forum and much more. Visit us! I hope you like this project as much as I do, Ángel L.M. UPDATE 09/08/2021: New design available: Thor v2.1. Every STL has been updated. UPDATE 17/08/2017: I have redesigned the design of Thor to be compatible with this kind of commercial sensors. All the details in this Hackaday log. You can download the updated design at Thor GitHub Repository! UPDATE 21/12/2016: Merry Chrismas Gift! I uploaded a ZIP with the last modifications. I really suggest you to go to Thor GitHub Repository and check if there are new modifications! UPDATE 27/10/2016: DannyVandenHeuven has made some nice modifications and now some pieces are splitted to be printed easier :). Check it out! https://www.youtube.com/watch?v=F2CDeHrFr2k
