The Ultimate Candy Machine V2 | NEW AND IMPROVED!

Check out my Halloween version here!

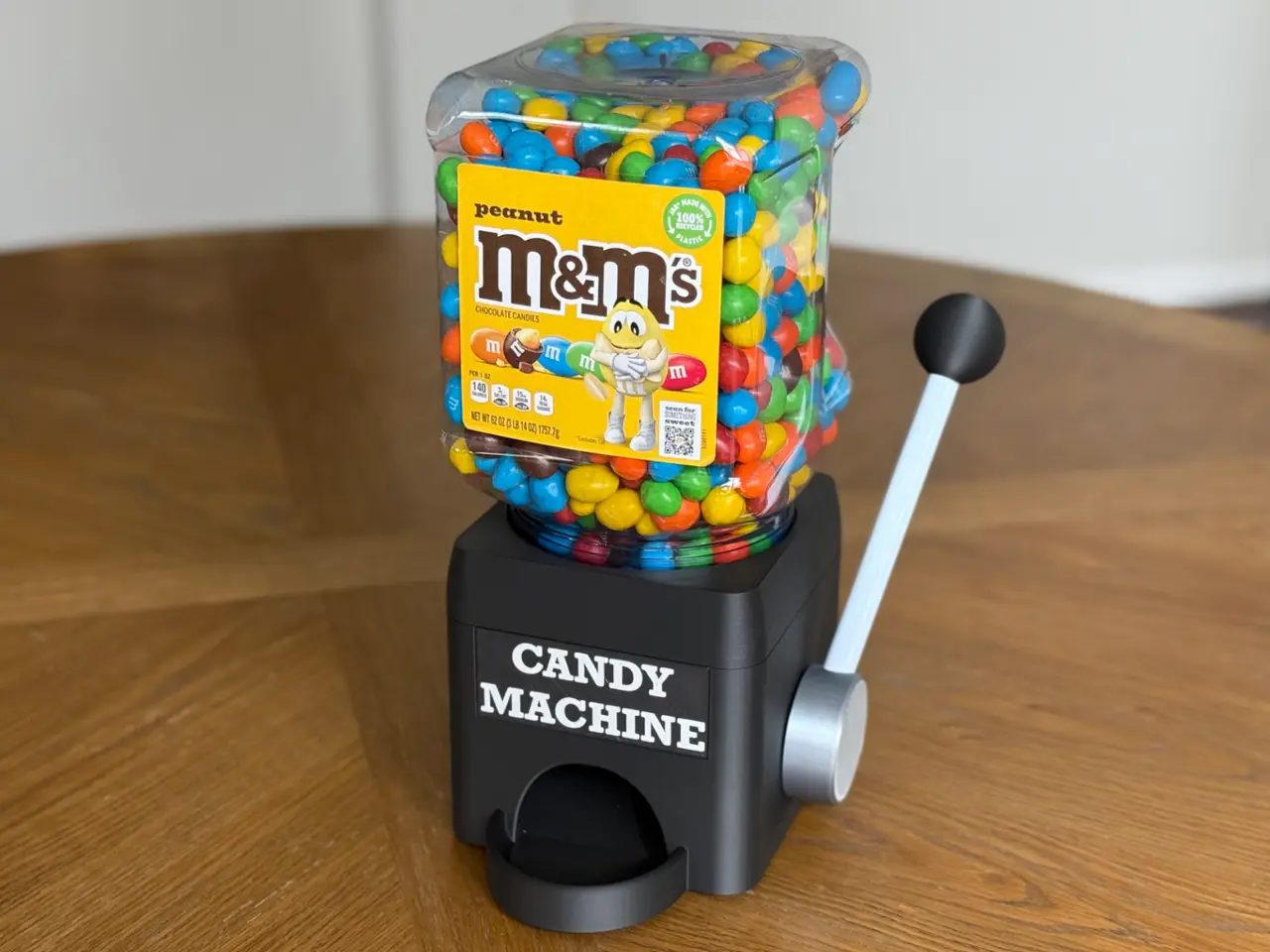

Boost Me🚀 Boost this model (for FREE) to show your appreciation! MembershipCheck out m membership options to support me or sell my designs on your own with a commercial license!FULLY 3D PRINTABLE – ULTIMATE CANDY DISPENSER V2 I hope you enjoy printing and assembling Version 2 of the Ultimate Candy Dispenser! This update focuses on stronger connections, fewer parts, and easier printing, while keeping the satisfying slot-machine experience. The design features a slot machine–style “jackpot” arm that rotates 90° to dispense 5–6 peanut M&Ms, then automatically returns to its home position.

Big thanks to BV3D for putting together this youtube video that will help anyone with assembly!

V2 Improvements

- New thread-to-body connection mechanism prevents accidental separation during use The top threads can still be intentionally removed by applying upward force.

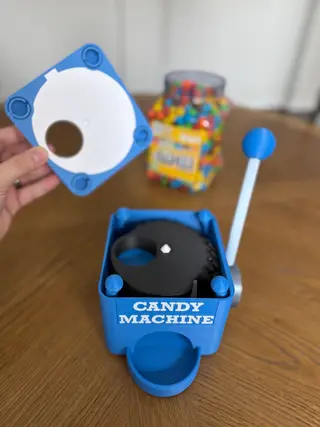

- Top threads only need to be removed to swap the custom sign or clean internal components

- Reduced part count for simpler assembly

- 100% support-free printing

- No external hardware required

- Swappable custom sign insert for easy personalization

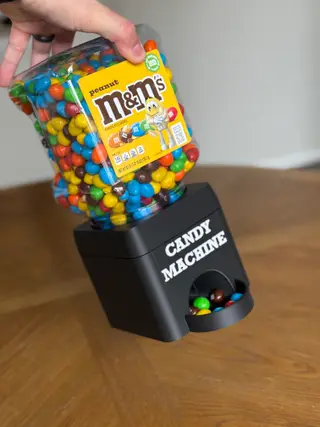

Candy Container Compatibility Designed for the 62 oz Costco peanut M&M container, which threads directly onto the top assembly. Most 110mm threaded PET/ Glass food containers should also work, and the threads can be easily for other jars. Assembly Follow the included graphical assembly instructions. The spring must be installed under tension (by design) and only fits one way. 💡 Pro Tips

- Entire mechanism is fully 3D printed

- PETG recommended for spring, funnel, and locator pin

- Glue optional but recommended for long-term durability

- Customize the sign or base in Bambu Studio (AMS-friendly)
