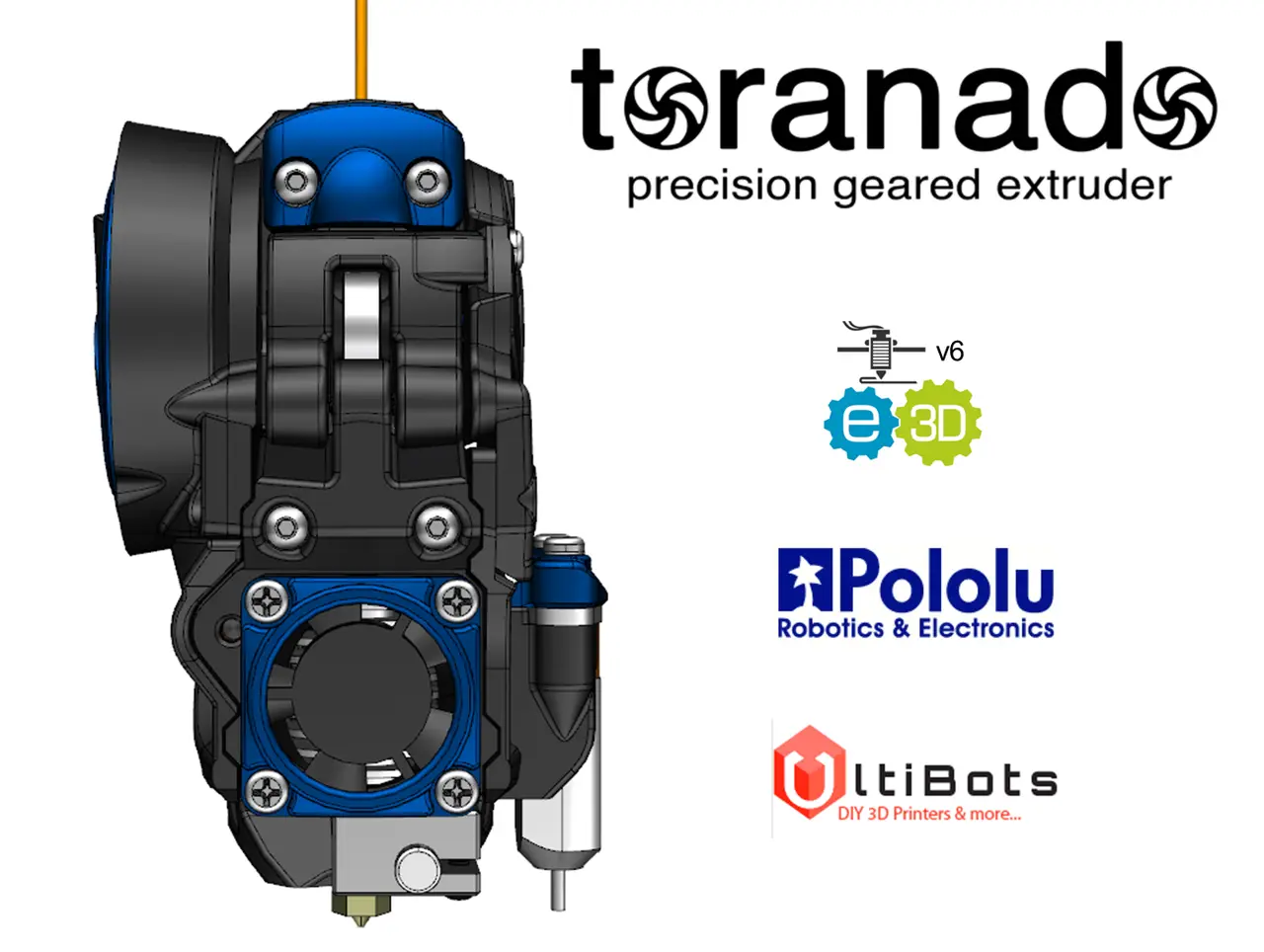

The Toranado Precision Geared 1.75mm Extruder - v2.1
por Wesley Weber Jr en Thingiverse
Update 3/31/2017 - Side Mount Build Instructions are now released (these show the new NEMA-14 gasket for heat isolation). I still need to update the standard build instructions with views showing this gasket. Hardware Kits - v2.1 Toranado Kits 9/15/2017 - I have 16 remaining Toranando Gearsets w...
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Wesley Weber Jr.
Archivos (33)
- tpge-buildinstructions-v2.1.pdf PDF · 4,1 MB
- tpge-buildinstructions-v2.11-SM.pdf PDF · 4,2 MB
- 2.1-LH-allfiles.zip ZIP · 8,5 MB
- 2.1-LH-BLtouchR.zip ZIP · 8,7 MB
- 2.1-RH-allfiles.zip ZIP · 8,5 MB
- 2.1FM-allfiles.zip ZIP · 6,3 MB
- 2.1FM-allfiles-bltouch.zip ZIP · 6,4 MB
- UPDATES.pdf PDF · 207 KB
- readme.pdf PDF · 22 KB
- whythetoranado.pdf PDF · 201 KB
- 2.1-LH-extruderbase.stl STL · 1,6 MB
- 2.1-LH-lowercover-wpad.stl STL · 1,6 MB
- 2.1-40mmfanduct.stl STL · 1,4 MB
- 2.1-LH-gearprotector.stl STL · 752 KB
- 2.1-gearcover.stl STL · 689 KB
- 2.1-LH-smallgearcover.stl STL · 478 KB
- 2.1-idlertensioner.stl STL · 486 KB
- 2.1-LH-bearingholder.stl STL · 62 KB
- 2.1-LH-conncover-base.stl STL · 115 KB
- 2.1-LH-decorationcover.stl STL · 1,1 MB
- 2.1-LH-decoration-spacer.stl STL · 198 KB
- 2.1-washer-M5.stl STL · 17 KB
- 2.1-idlerholder.stl STL · 578 KB
- 2.1-30mmfanmount.stl STL · 581 KB
- 2.1-30mmvent-wpad.stl STL · 1,1 MB
- 2.1-30mmfancover-lownoise.stl STL · 597 KB
- 2.1-conncover-hotend.stl STL · 173 KB
- 2.1-idler-wpad.stl STL · 943 KB
- 2.1-LH-lowercover-BLTouchR-wpad.stl STL · 1,8 MB
- 2.1-LH-BLTouchcover-R.stl STL · 304 KB
- 2.1-shaftcollar.stl STL · 18 KB
- 1.0-spacer-wpads.stl STL · 21 KB
- 2.1-drilltemplate.stl STL · 288 KB
- Categoría
- Para tu impresora
- Formatos
- PDF, ZIP, STL
- Descargas
- 92,719
- Publicado
Sobre este modelo

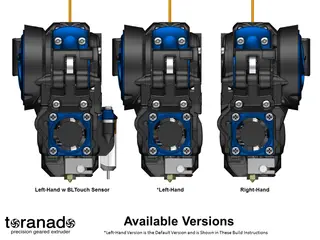

Update 3/31/2017 - Side Mount Build Instructions are now released (these show the new NEMA-14 gasket for heat isolation). I still need to update the standard build instructions with views showing this gasket. Hardware Kits - v2.1 Toranado Kits 9/15/2017 - I have 16 remaining Toranando Gearsets w Shafts available. I listed them today, and they will ship Wed/Thursday of next week. First come, first serve. http://www.ebay.com/itm/272848649850 Why the Toranado? Available Toranado Versions - Files and Build Instructions Rear Mount Precision-Geared Versions - Left-Hand Gear - Left-Hand Gear w/ BL Touch on Right - Right-Hand Gear Note: Left-hand build instructions included in ZIP file. Actual build will be mirrored

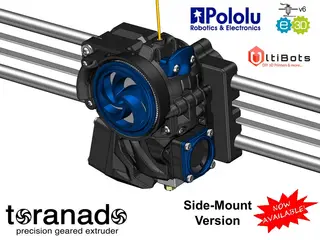

Side-Mount Precision-Geared Versions - Side/Flush Mount - (Compatible w/ P3Steel) Now Available! - Side/Flush Mount w/ BL Touch - Now Available!
Legacy Versions - Version 1.0, 1.1 and 2.02 Legacy Versions

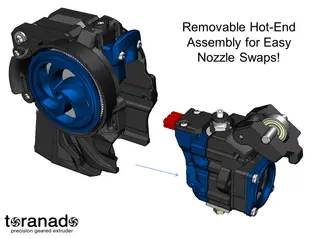

Original Rear-Mount Build Instructions Side-Mount Build Instructions E-Z Hotend Removal - Instructional Video Thingiverse Community Involvement - The Toranado is well supported by the Thingiverse Community and MAKERS have added the following THINGS to support the Toranado: TORANADO X-CARRIAGE MOUNTS - i3 8mm X-Carriage Mount - i3 8mm X-Carriage Mount w/ 45mm bearings by Cheetahkid - i3 10mm X-Carriage Mount by Big Cooter - Makerfarm Pegasus Mount by Leo76 - TS 2020 Rail Carriage by Timeshell - TS 2040 Vertical Rail Carriage for TEVO Tarantula by Timeshell - TS 2040 2020 Rail Carriage by Timeshell - OneZ-i3 Mount by TechGirl_Mods - X Carriage for Wanhao Di3 by Beevus - Toranado MPCNC Mount by DarthOctane - K8200 Alu Profile by Trojan3d
Also compatible with i3 Rework and typical 23x23mm x-carriage hole patterns. BED-LEVELING SENSOR MOUNTS - BL-Touch - 12mm Z-Probe by irond4n - 12mm Z-Probe by dvseliteus - 18mm Z-Probe by gvalente - 18mm Z-Probe by funbobby2001
ACCESSORIES - LED Light for BL-Touch Mount by short_lurker - NEMA-14 Cooling Fan Mount by Krwynn
Descripción original del autor, publicada en Thingiverse.
