The Landing – Japandi Entryway Organizer Shelf with Key Hooks — modelo 3D

The Landing – Japandi Entryway Organizer Shelf with Key Hooks

por Robin Wells en Thingiverse

A Japandi-inspired wall organizer featuring a rounded fluted backplate, removable curved tray, rear mail pocket, four rounded key pegs and concealed screw mounts. Assembled size: approximately 270 × 116 × 168 mm. Includes two STL parts, a K2 Plus PETG 3MF project, complete ZIP with editable Python..

Descargar gratis Ver en Thingiverse

Todos los archivos (5) en un ZIP

Licencia

Solo uso personal

CC BY-NC 4.0 — Atribución, no comercial

Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.

Al descargar aceptas respetar la licencia y dar crédito a Robin Wells.

Archivos (5)
Categoría
Organización
Formatos
3MF, ZIP, STL, TXT
Descargas
1
Publicado

Sobre este modelo

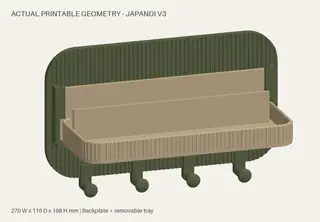

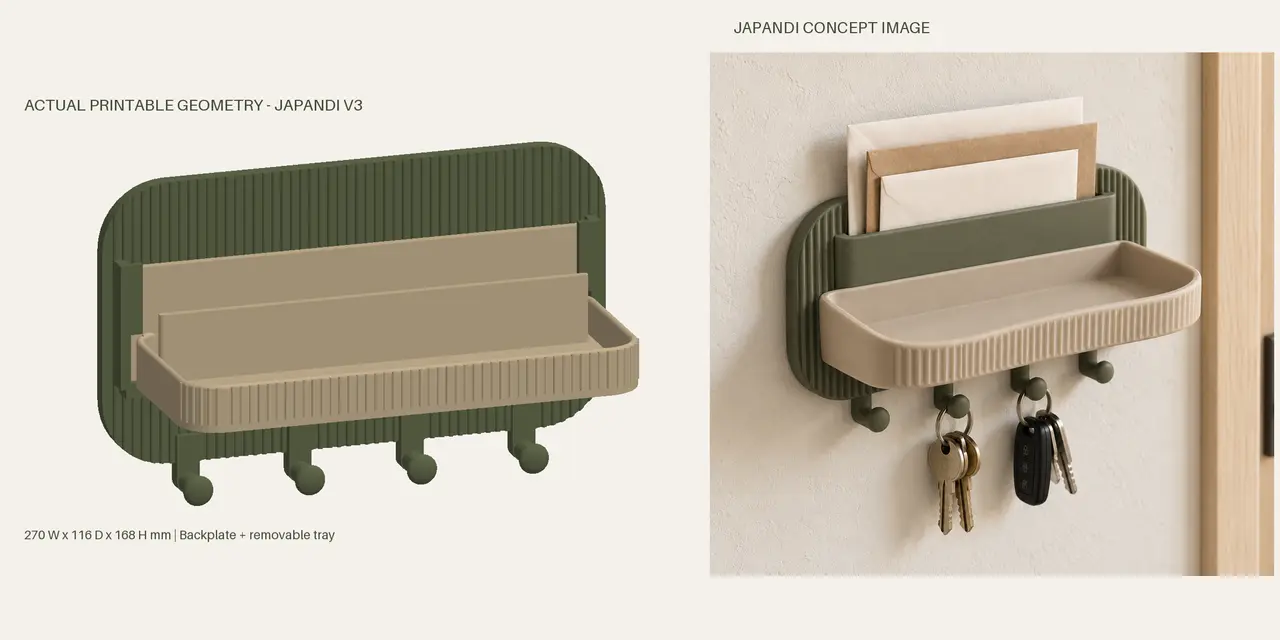

A Japandi-inspired wall organizer featuring a rounded fluted backplate, removable curved tray, rear mail pocket, four rounded key pegs and concealed screw mounts. Assembled size: approximately 270 × 116 × 168 mm. Includes two STL parts, a K2 Plus PETG 3MF project, complete ZIP with editable Python source and mesh checks, and print/assembly instructions. Suggested print settings: PETG, 0.4 mm nozzle, 0.20 mm layers, 5 walls, 6 top/bottom layers, 25–30% gyroid infill. Backplate: rear face down with local supports under rail lips and peg-cap shoulders. Tray: underside down, normally without supports. Configure your own printer and filament profiles before slicing. Concealed rear keyholes are 170 mm apart. Use wall-appropriate screws and anchors. Dry-fit the tray; full mounting dimensions and assembly directions are in PRINT-AND-ASSEMBLY.txt. Prototype v3: digitally checked meshes; physical prototype remains untested and no load rating is assigned. Intended for light keys, letters, phone and wallet, not bags or coats. Gallery includes CAD and generated-image design comparison previews. More designs and behind-the-scenes previews: https://www.patreon.com/RCJCreations

Descripción original del autor, publicada en Thingiverse.
