The Amazing Gyroscopic Cube Gears! — modelo 3D

The Amazing Gyroscopic Cube Gears!

por Joe Ethington en Thingiverse

Update - I have re-printed and assembled this and in the process made several changes to make this much easier to print and assemble. With the changes that I made, I only had a couple spots where I had very minor edge cleanup because of the first layer being squeezed for adhesion. I have removed...

Descargar los 25 archivos Ver en Thingiverse

25 archivos · 4,8 MB · se descargan uno tras otro

Licencia

Uso comercial permitido

CC BY-SA 4.0 — Atribución, compartir igual

Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a Joe Ethington.

Archivos (25)
Categoría
Figuras y arte
Formatos
PDF, STL
Descargas
115,479
Publicado

Sobre este modelo

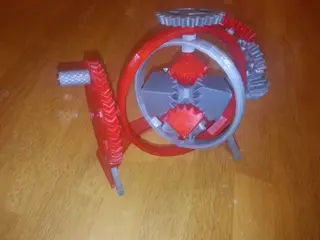

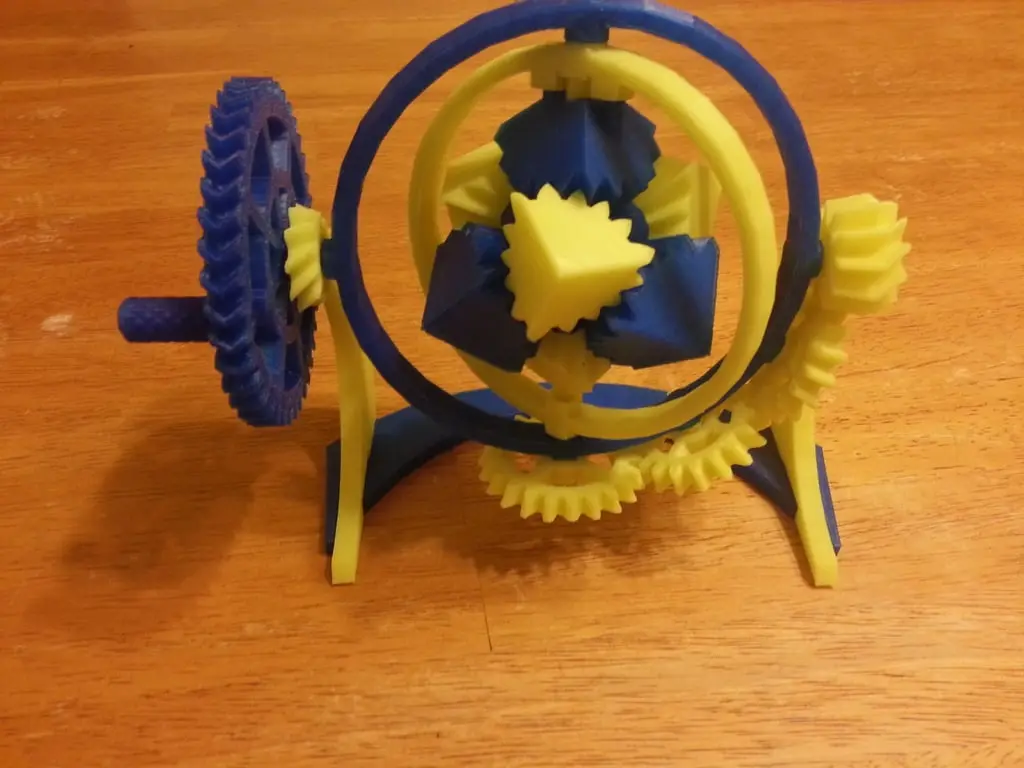

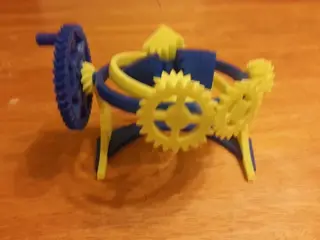

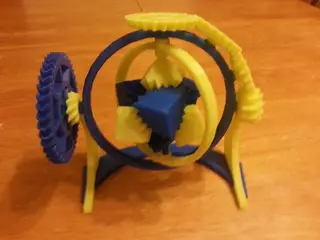

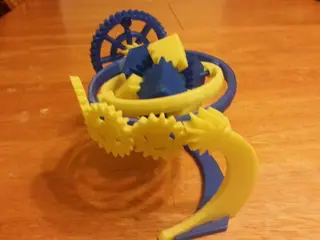

Update - I have re-printed and assembled this and in the process made several changes to make this much easier to print and assemble. With the changes that I made, I only had a couple spots where I had very minor edge cleanup because of the first layer being squeezed for adhesion. I have removed the need for sanding and other finish work that was previously needed. (I do however still recommend lubrication). I also wrote a full set of assembly instructions with pictures detailing my process for assembly. I hope that this helps those who build this and I thank those who made it through the assembly with my previous version. End of Update-- Come one come all and witness the thrills of the Amazing Gyroscopic Cube Gears! With a simple turn of the crank watch as the rings of the gyroscope rotate, the gears turn and the gear cube comes alive. It's simply Mesmerizing! The yellow parts on mine are printed in glow in the dark plastic which makes it even more amazing in the dark (but unfortunately does not show up with my camera). Ok, that's all I got. I was looking at the gyroscopic gimbal mount for emmett's cube gears and thought it would be really cool if it could move on its own and have the cube gears turn as well. And so I went on a mission to design, test, alter, redesign, test alter, etc, etc until I had created the Amazing Gyroscopic Cube Gears! This is the had cranked version so you have no excuse to put off making it. I used the excellent hand crank from the tiny planetary gears set. No need to wait for a motor to ship. You can build it now! I have started working on making the modifications to motorize it and it will be an easy conversion if you want to change it later. I have a couple of other projects that I am wrapping up before I finish the motorized version, but it will be coming soon. Here's a video of it in action: https://www.youtube.com/watch?v=wp33YNBuPMM And a teaser of it being driven by a $5 gear motor: https://www.youtube.com/watch?v=SI-SuvXPZQg I made the custom parts for this using tinkercad. I have made them public so that you can copy them and customize them to your liking. just search for "gyro cube gears". Here's a link to my public Tinkercad items, including these parts: https://tinkercad.com/users/2kCdTWHQpcv-joe-ethington

Descripción original del autor, publicada en Thingiverse.
