#ThangsBambuContest P1P Enclosure
Remix of the ARC enclosure. This enclosure will be 100% printable. Uses the OEM door and top glass, and hinges that can be purchased from Bambu Lab. Includes printable side panels, Rear chamber fan with temperature control, Door top infill panel, and Carbon filter option. Many other smaller tweaks t
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Scott B.
Archivos (23)
- Screen Mount.3mf 3MF · 387 KB
- ARC_Left Back Top.3mf 3MF · 686 KB
- ARC_LEFT BOTTOM BACK.3mf 3MF · 73 KB
- ARC_Left Front Bot Col (No Hinge).3mf 3MF · 434 KB
- ARC_Rear Center Top.3mf 3MF · 86 KB
- ARC_Right Back Top.3mf 3MF · 177 KB
- ARC_RIGHT BOTTOM CENTER.3mf 3MF · 73 KB
- ARC_Right Front Bot Col.3mf 3MF · 129 KB
- ARC_Right Front Top Col.3mf 3MF · 196 KB
- ARC_Top Left Center.3mf 3MF · 232 KB
- ARC_Top Right Center.3mf 3MF · 224 KB
- Bottom Left Side Panel.3mf 3MF · 160 KB
- Bottom Right Side Panel.3mf 3MF · 131 KB
- DOOR_FRAME Top OEM glass.3mf 3MF · 30 KB
- Top Left Side Panel.3mf 3MF · 109 KB
- Top Right Side Panel.3mf 3MF · 104 KB
- ARC_LEFT BOTTOM CENTER.3mf 3MF · 76 KB
- ARC_Left Front Top Col (No Hinge).3mf 3MF · 387 KB
- ARC_Left Side Panel Mount.3mf 3MF · 84 KB
- ARC_RIGHT BOTTOM BACK.3mf 3MF · 70 KB
- ARC_Right Side Panel Mount.3mf 3MF · 81 KB
- Split_Duct2.3mf 3MF · 2,4 MB
- Arc Remix.step STEP · 21,6 MB
- Categoría
- Para tu impresora
- Formatos
- 3MF, STEP
- Descargas
- 192
- Publicado
Sobre este modelo

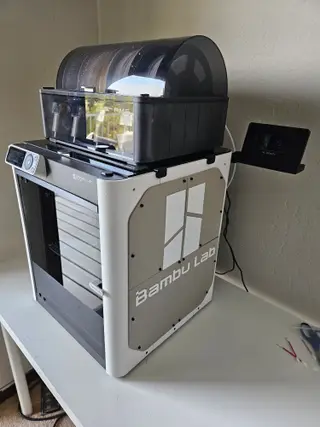

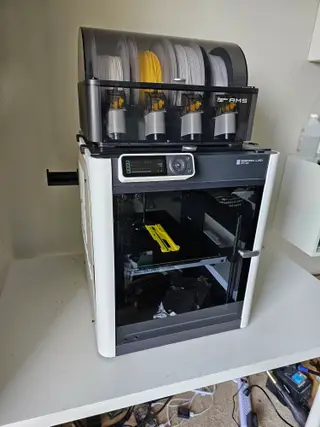

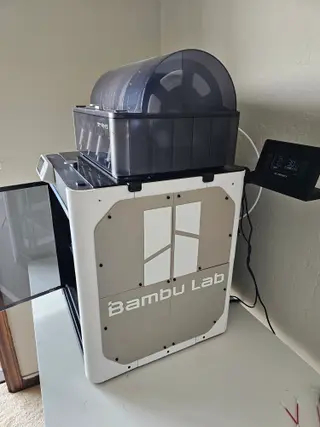

Remix of the ARC enclosure. This enclosure will be 100% printable. Uses the OEM door and top glass, and hinges that can be purchased from Bambu Lab. Includes printable side panels, Rear chamber fan with temperature control, Door top infill panel, and Carbon filter option. Many other smaller tweaks to make this a perfect enclosure. Fusion 360 files for the 4 part side panels included so complete custom designs can be created. See ARC enclosure instructions for assembly.

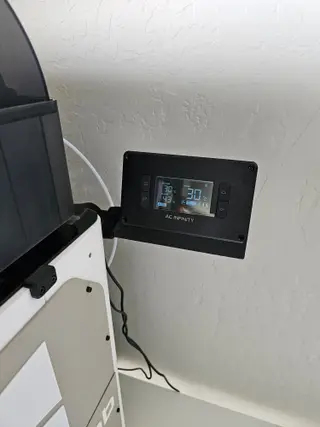

3/6/2023 Added Chamber fan back panel mount, Chamber fan control panel Mount. These mounts are designed to use the AC Infinity T3 fan and controller. The hole on top of the rear panel fan mount is for the temperature sensor. Testing the down duct and the carbon filter options. Rear panel needs to be printed in the vertical orientation to fit the build plate. Recommend full brim attached, and manual tree supports. Print using strong print profile.
This enclosure is 100% printable (except glass from bambu).
Descripción original del autor, publicada en Thangs.
