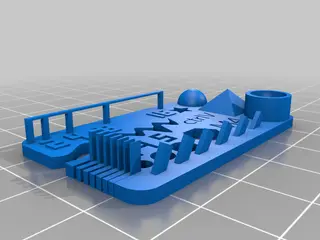

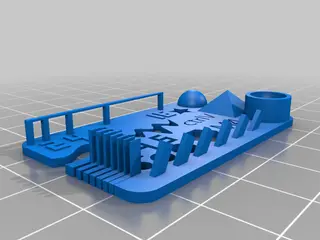

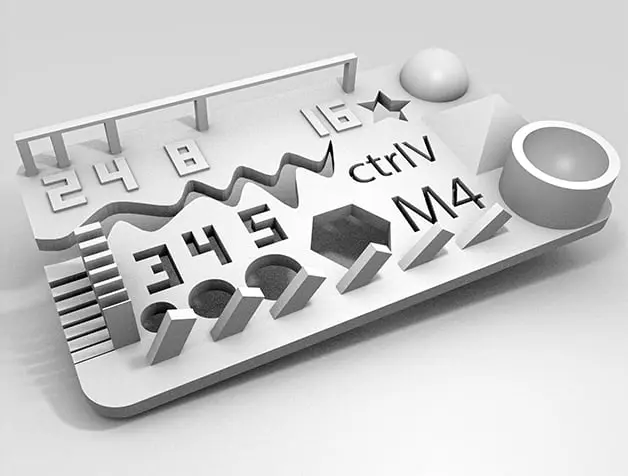

Test your 3D printer! v2

after a lot of wishes we present the new smaller Test your 3D printer! version 2. new version 3 here: http://www.thingiverse.com/thing:1363023 check out the forum for more help http://www.whoote.com new features - saving 75% volume compared to version 1 - only 2.52cm3. (Version 1, 2mm baseplate: 3.16cm3) - optimized 3D print font - higher resolution - wall thickness - this version is for 0.48mm extrusion width (more to come)

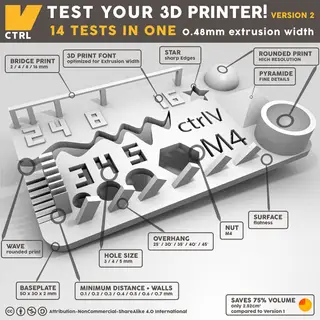

This is a hard to print testfile! often you don't know if your printer is ready for complex files. with this file you have an easy option to check problematic printing/slicing stuff. does your printer challenge this ultimative part? check it out and get (almost) instant results. these test are included in this very tiny file: - size: the object is 2x50x30mm (baseplate) - hole size: 3 holes (3/4/5mm) - Nut size: M4 Nut should fit perfectly - fine details: pyramide, cone, all numbers - rounded print: wave, half sphere - minimum distance & walls: 0.1/0.2/0.3/0.4/0.5/0.6/0.7mm - overhang: 25°/30°/35°/40°/45° - bridge print: 2/4/8/16/mm - surface: all the flat parts

version 1 http://www.thingiverse.com/thing:704409
