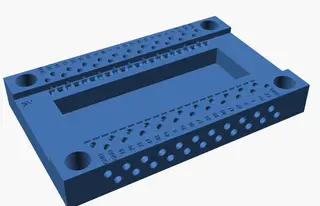

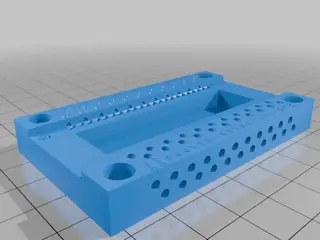

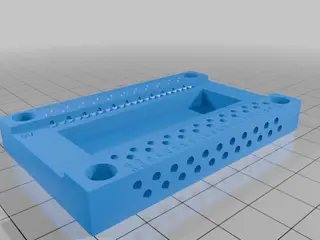

Terminal Adapter for ESP32S3
por Luis Perez en Thingiverse

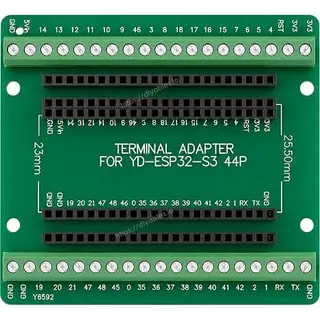

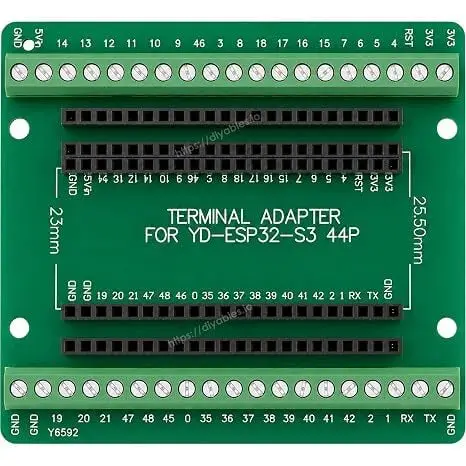

The SHields and screw terminals for esp32s3 are expensive for no reason so I made this I recomend - .16mm layers and 100% infill - 44 × M2×12 screws with a flat tip. Pointed self-tapping screws can cut the wire - 22–24 AWG wire. Solid core is best; with stranded wire, tin the end or use a ferrule...
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Luis Perez.
Archivos (2)
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 8
- Publicado
Sobre este modelo
The SHields and screw terminals for esp32s3 are expensive for no reason so I made this I recomend - .16mm layers and 100% infill - 44 × M2×12 screws with a flat tip. Pointed self-tapping screws can cut the wire - 22–24 AWG wire. Solid core is best; with stranded wire, tin the end or use a ferrule - Print in PETG if you can, because PLA slowly loosens under constant screw pressure
Descripción original del autor, publicada en Thingiverse.
