Tension Meter for the GT2 belts of i3 MK3S+ or Prusa MINI+
por Prusament en Printables

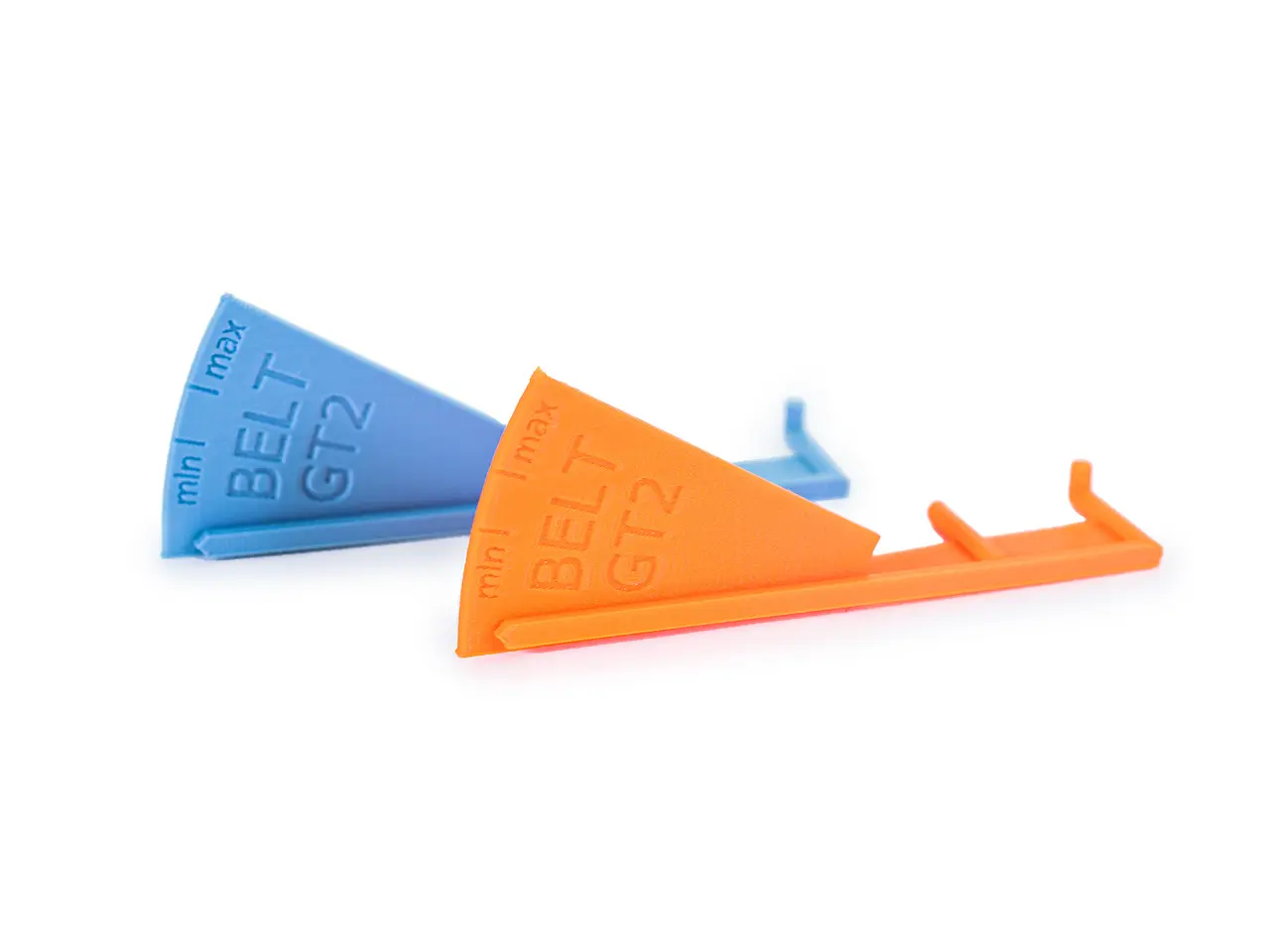

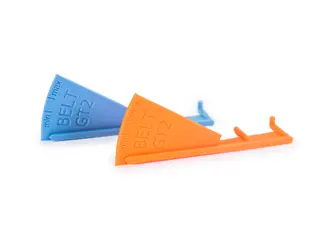

The model of the tension meter helps you control the tension on the belt of your Prusa printer.
Licencia
Solo uso personalCC BY-NC-ND 4.0 — Atribución, no comercial, sin derivadas
Solo para uso personal, sin modificarlo y dando crédito. No se permite vender ni redistribuir cambios.
Al descargar aceptas respetar la licencia y dar crédito a Prusament.
Archivos (7)
- tension-meter_petg_mk3s.gcode GCODE · 494 KB
- tension-meter_petg_mini.gcode GCODE · 638 KB
- tension-meter_nozzle_04_pet_mk25s.gcode GCODE · 644 KB
- tension-meter_nozzle_06_petg_mk3s.gcode GCODE · 597 KB
- tension-meter_nozzle_06_petg_mini.gcode GCODE · 266 KB
- tension-meter_nozzle_06_pet_mk25s.gcode GCODE · 649 KB
- tension meter _0.4n_0.15mm_PETG_MK4_41m.gcode GCODE · 1017 KB
- Categoría
- Para tu impresora
- Formatos
- GCODE
- Descargas
- 37,016
- Publicado
Sobre este modelo

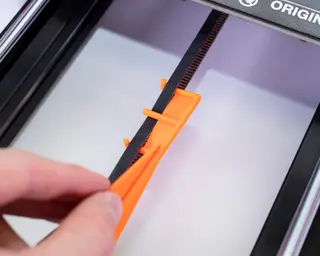

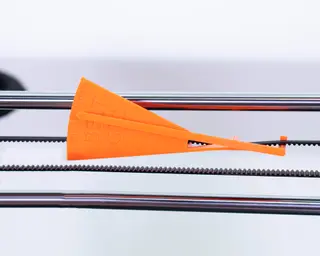

The model of the tension meter helps you control the tension on the belt of your Prusa printer. It's specially designed to check the tension of your Prusa printer's belts. It works with Original Prusa i3 MK3/S/S+ with the belt GT2. How to use it Simply place the tension meter on the belt and check the deviation of the indicator whether the belt is correctly tightened (indicator between MIN - MAX), or too tight (indicator above MAX), or loose (indicator below MIN). How to fit the Tension Meter Video about how to fit the tension meter for the belt GT2 of the Original Prusa i3 MK3S: - The model must be printed from Prusament PETG. It might not work properly with a different brand's filaments. We offer g-codes only. It is because the print settings cannot be changed to keep the meter working properly. You can change the print speed on the printer. Print instructions We offer g-codes for Original Prusa MK4, Original Prusa i3 MK3/S/S+, Prusa MINI, and Prusa MK2.5S/S+.
For proper function use Prusament PETG.
-
Designed by Jiří Bílek.
Descripción original del autor, publicada en Printables.
