Teltonika RUTX50 10-inch rack 1U bracket
por The Restless Maker en Printables
Solutions to mount RUTX50 in 10-inch rack with a height of 1U
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a The Restless Maker.
Archivos (5)
- Categoría
- Tecnología
- Formatos
- STEP
- Descargas
- 1
- Publicado
Sobre este modelo

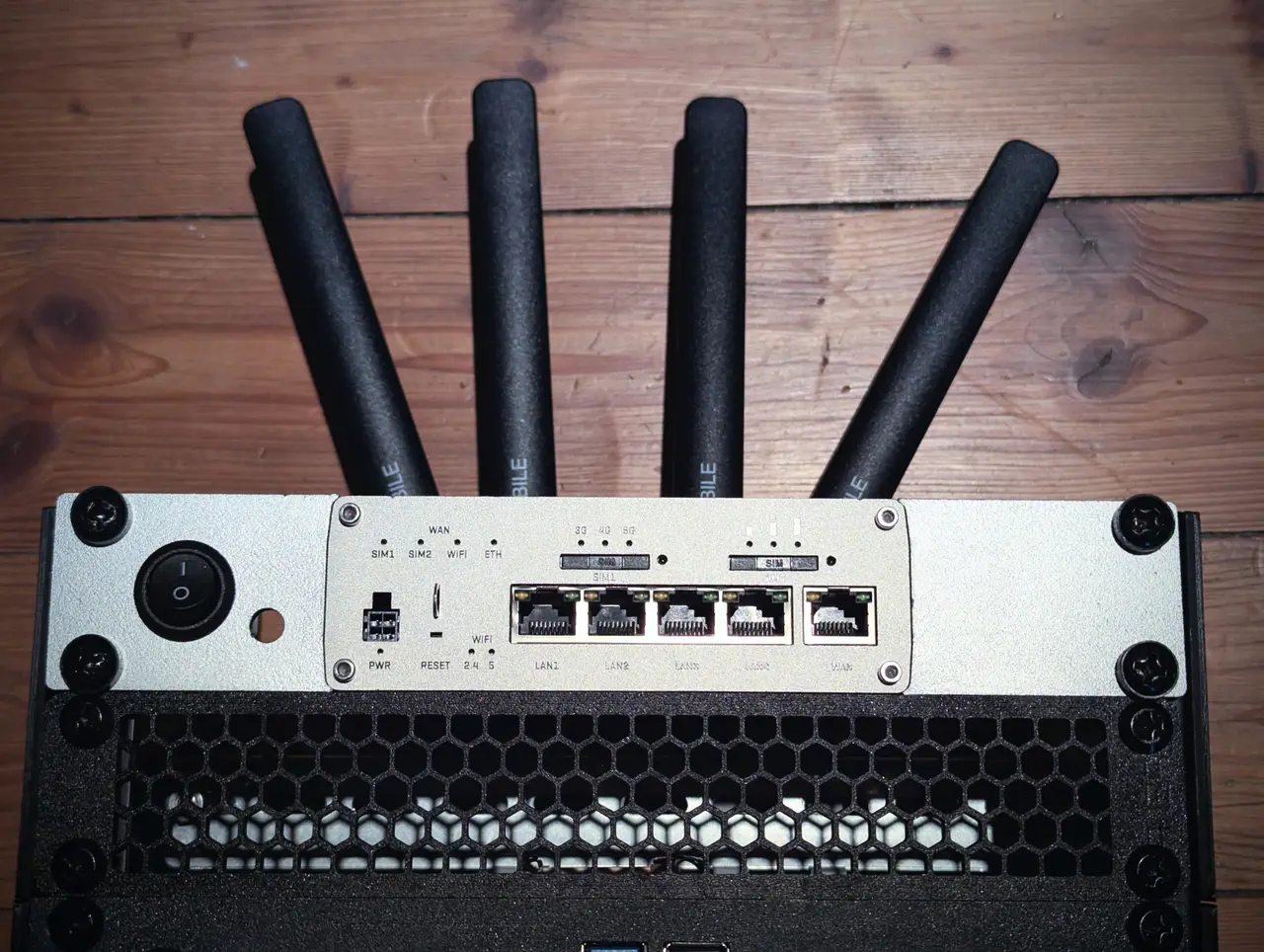

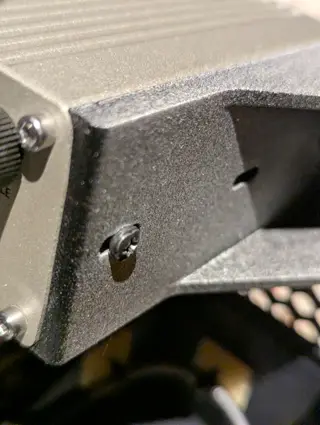

I found no solutions to mount RUTX50 in 10-inch rack with a height of 1U, so I rolled my own. Router has exactly the right height, so it was just a matter of adding the sides. My design id made around original RUTX50 CAD model, so curvature fitment is perfect. Print is silver sprayed to match the version I have got. To fix the brackets to the router's side slots you would need a few M3 8mm long screws. I have publish different variations of the left brackets with a power switch and opening for the power cable or without it. Power switch used: https://amzn.eu/d/0cjpmwfO
Descripción original del autor, publicada en Printables.
