Telescopic bike fender
por Thorin Oakenshield en Printables
Telescopic bike fender front+rear
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Thorin Oakenshield.
Archivos (23)
- Road - front 1.stl STL · 1,5 MB
- Road - front 2.stl STL · 718 KB
- Road - front 3.stl STL · 591 KB
- Road - rear 1.stl STL · 1,3 MB
- Road - rear 2.stl STL · 635 KB
- Road - rear 3.stl STL · 551 KB
- Road - rear 4.stl STL · 565 KB
- Trecking - front 1.stl STL · 1,7 MB
- Trecking - front 2.stl STL · 770 KB
- Trecking - front 3.stl STL · 647 KB
- Trecking - rear 1.stl STL · 1,2 MB
- Trecking - rear 2.stl STL · 685 KB
- Trecking - rear 3.stl STL · 604 KB
- Trecking - rear 4.stl STL · 618 KB
- Front fender - Part 1.stl STL · 1,7 MB
- Front fender - Part 2.stl STL · 779 KB
- Front fender - Part 3.stl STL · 654 KB
- Rear fender part 1.stl STL · 1,4 MB
- Rear fender part 2.stl STL · 766 KB
- Rear fender part 3.stl STL · 683 KB
- Rear fender part 4.stl STL · 640 KB
- Clamp 1.stl STL · 285 KB
- Clamp 2.stl STL · 275 KB
- Categoría
- Jardín
- Formatos
- STL
- Descargas
- 1,475
- Publicado
Sobre este modelo

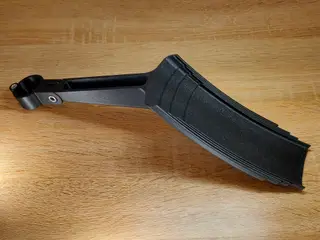

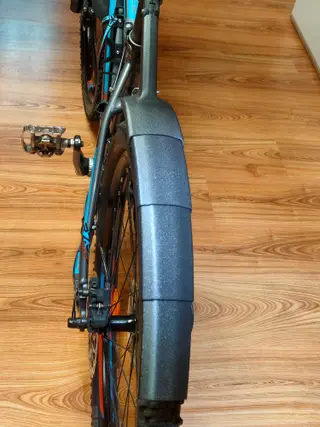

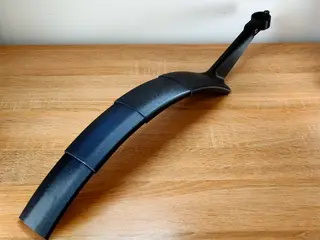

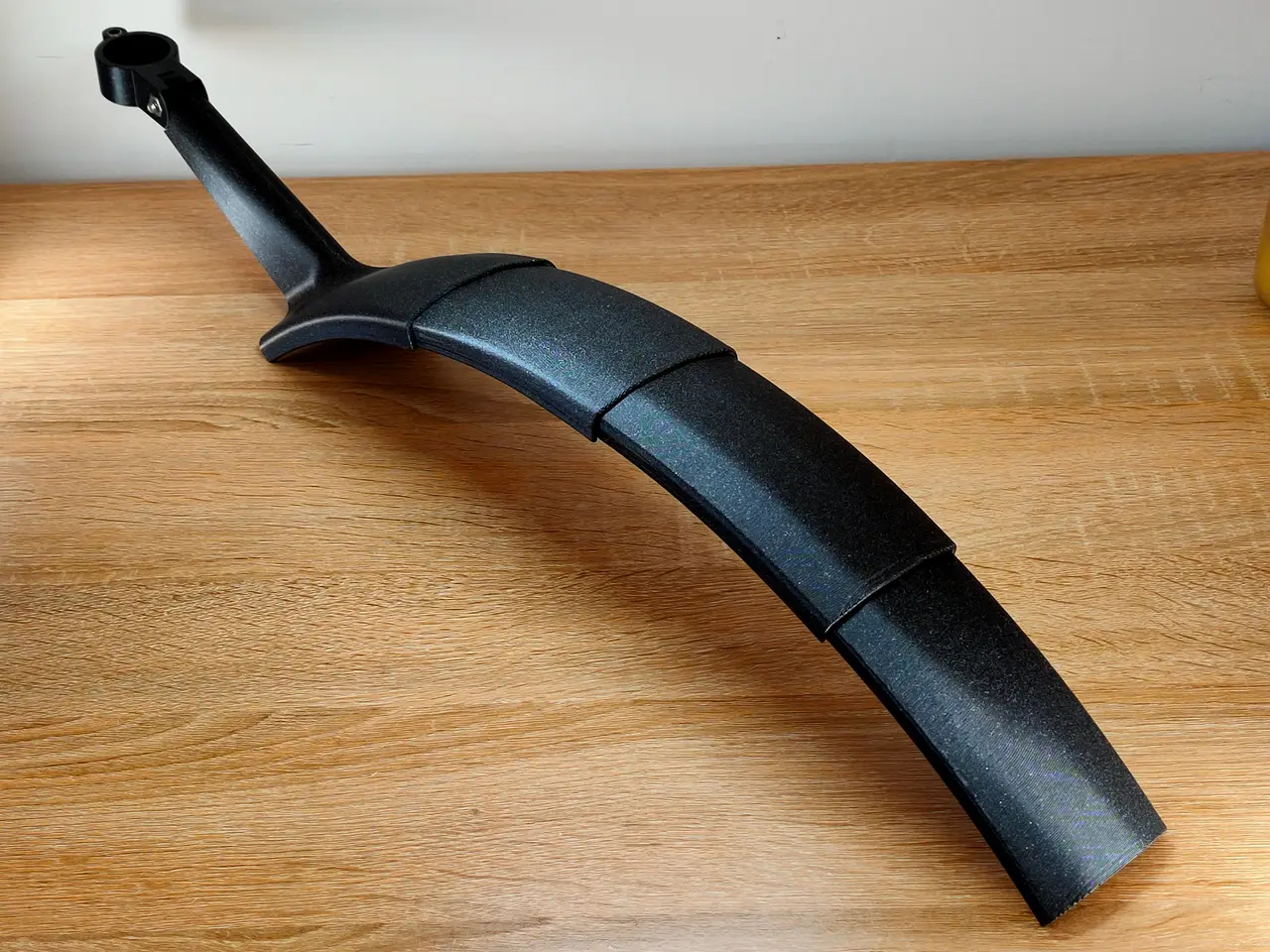

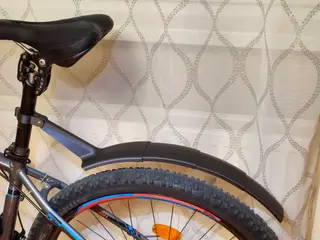

New sizes added !! For Trecking bike : width 56-40mm - new size For Road bike : width 44-28mm - new size For Mountain bike : width 72-56mm Telescopic bike fenders - Front -3pcs, Rear -4pcs For mountai bike :The widht of the fender is 72-56mm The lenght of the Front is 38cm, Rear is 50cm The seatpost clamp has a diameter of 31mm I recomend using a wide brimm when printing, Used cylinder head screws - M6x20mm, M5x16mm After off-road rides , i foun that is was best to glue the parts together.The limits of 3D printing were evident - the strenght of the material,the fender did not break, but the movement of layer against layer causes a lot of friction. But the seatpost clamp hold well. And the fenders look good! at least 6-8mm
