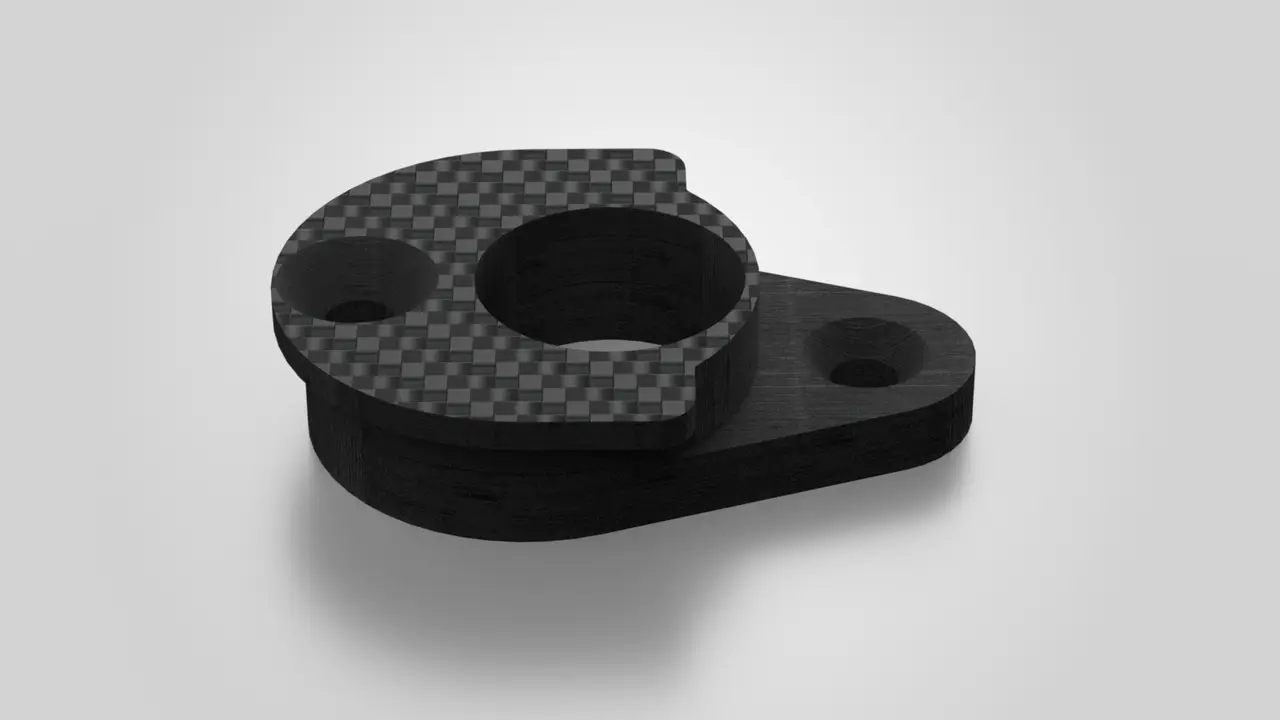

Team Associated TC3/4 Motor Mount Modified for Print

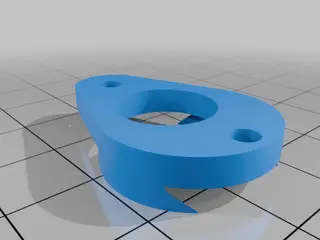

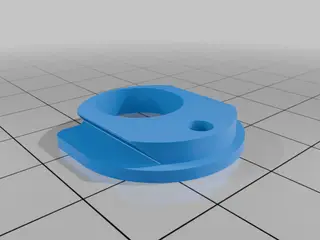

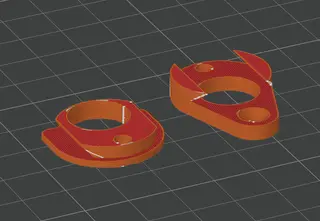

Huge thanks to OP on this one. I lost this part somewhere along the way and they seem hard to find these days. I started with the original and then remodeled to make a few changes. Most notably, I thickened up some of the thin areas including the rib that slides into the chassis and the material where the clamp from the car comes down on it. I started with this 1 piece but then decided to split it, put a dovetail in it, and countersinks. So it now prints 2 parts, both supported by the plate, with no support material. I think the bottom screw was 12mm in length and the top was 8mm. It fit screws out of my standard set of misc screws. I printed in PTEG-CF at default fine .12mm settings, solid, and it prints in 15 min or so on my machine. Slip fit on the dovetail is snug but not overly tight to avoid snapping the outer sides of the dovetail. Can't comment on durability yet but it feels pretty solid. I put a STEP file up as well in case any other adjustments might be needed.
