Tape Machine - filament rewind / respooling
I designed this back in 2019 to split 2kg spools into 1kg spools.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicioneslicense
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Mihai S.
Archivos (22)
- assembly preview.obj OBJ · 20,3 MB
- top connector B (2 of 2).stl STL · 323 KB
- top connector B (1 of 2).stl STL · 323 KB
- top connector A (2 of 2).stl STL · 323 KB
- top connector A (1 of 2).stl STL · 323 KB
- stand (2 of 2).stl STL · 844 KB
- stand (1 of 2).stl STL · 844 KB
- screwdriver mount (2 of 2).stl STL · 285 KB
- screwdriver mount (1 of 2).stl STL · 285 KB
- legs (4 of 4).stl STL · 368 KB
- legs (3 of 4).stl STL · 368 KB
- legs (2 of 4).stl STL · 368 KB
- legs (1 of 4).stl STL · 368 KB
- cone (4 of 4).stl STL · 834 KB
- cone (3 of 4).stl STL · 834 KB
- cone (2 of 4).stl STL · 834 KB
- cone (1 of 4).stl STL · 834 KB
- bottom connector x1.stl STL · 288 KB

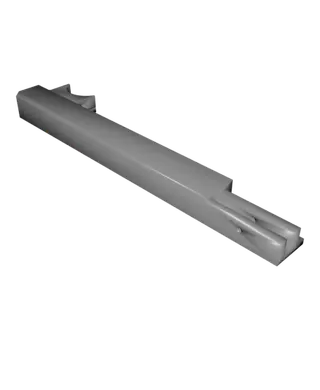

- axis extension (2 of 2).stl STL · 3,5 MB
- axis extension (1 of 2).stl STL · 3,5 MB
- axis base (2 of 2).stl STL · 2,7 MB
- axis base (1 of 2).stl STL · 2,7 MB
- Categoría
- Para tu impresora
- Formatos
- OBJ, STL
- Descargas
- 815
- Publicado
Sobre este modelo

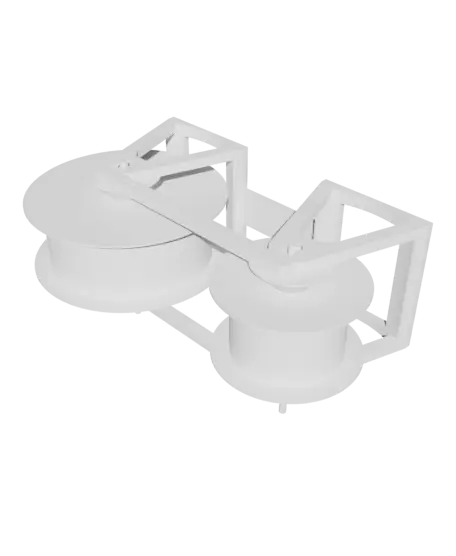

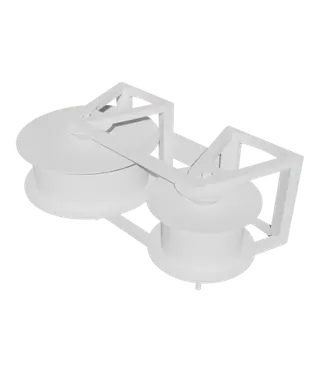

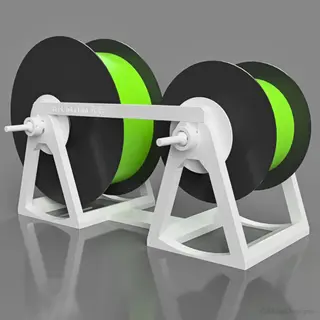

I designed this back in 2019 to split 2kg spools into 1kg spools. Used to transfer filament between two spools: - Spool ID down to 12mm - Spool OD up to 300mm - Maximum spool height/thickness depends on the inner diameter (at least 110mm for most spools)
👉 YouTube Video (https://youtube.com/shorts/99-BicFGMBY?feature=share)
Print all parts once. They are pre-oriented with built-in supports. Outer brim can help for the standing parts. You can use 3 perimeters for the vertical columns, but 2 is probably enough. No other special settings. I printed in PETG.
Sourced parts - M3x30mm screw (or longer) - 4x 6001 bearings - power drill - piece of 4x2mm PTFE tube, 20-30cm long - small pieces of filament for assembly (I use nylon filament, but PETG or TPU are also good options). PLA may work as well but is more brittle
No detailed assembly instructions. Just a few glimpses in the video above.
Operation This device can be dangerous. Use it at your own risk. Do not use high speeds and avoid sudden stops! The source spool has no braking system and will continue to unwind and can tangle the filament. Do not touch the filament with an empty hand/skin while it's being transferred between spools (always use the PTFE tube). Do not try to stop a spool rotating at high speed with bare hands.
More projects at mihaidesigns.com (https://mihaidesigns.com/)
Supportless, support free.
