Tag-Connect TC2030-CLIP handle
por carlossless en Printables
Small ribbed handle for the Tag-Connect TC2030-CLIP board, with string holes at both ends. Prints without supports.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a carlossless.
- Categoría
- Herramientas
- Formatos
- SCAD, STL
- Descargas
- 0
- Publicado
Sobre este modelo

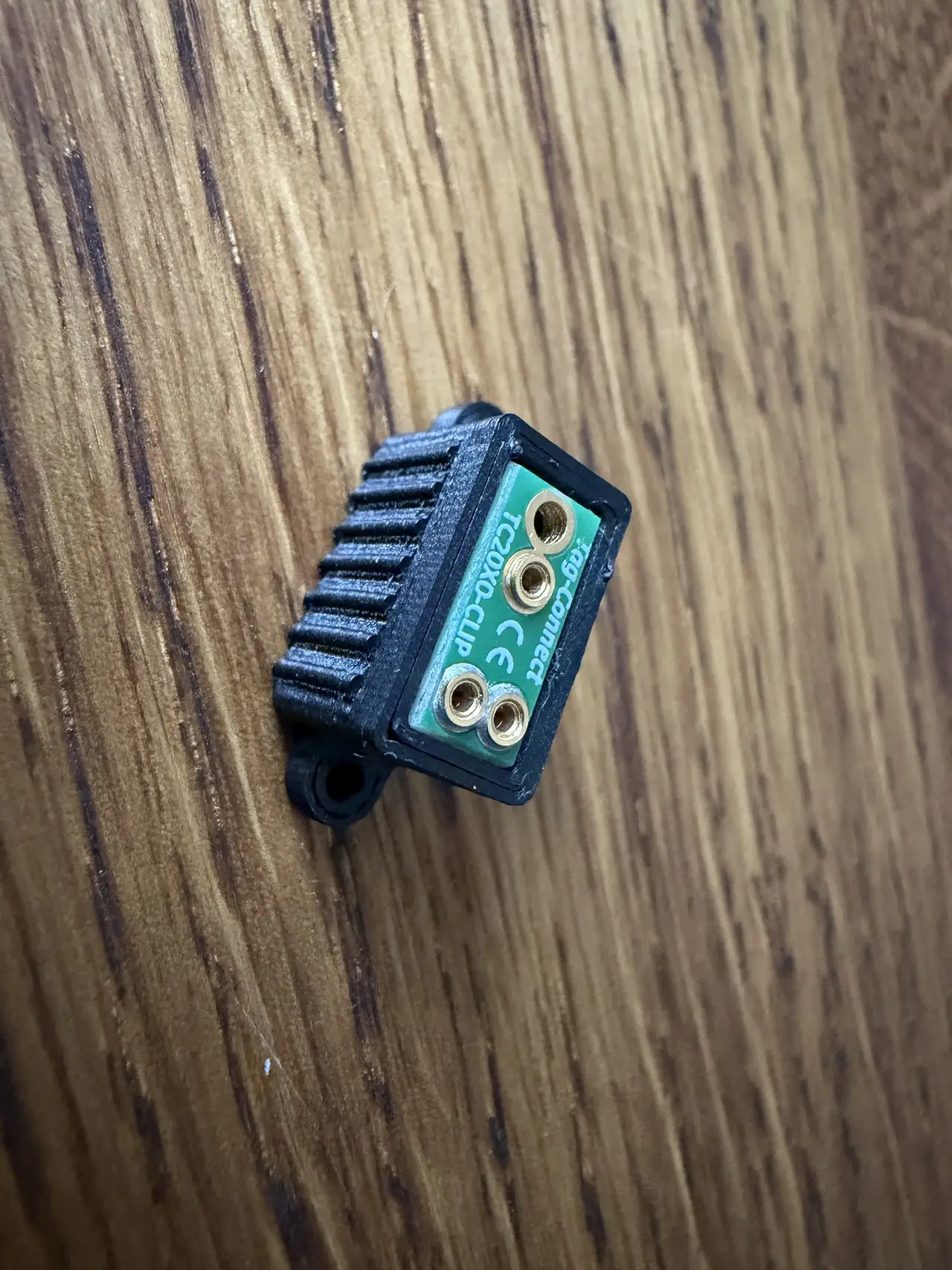

A handle for the Tag-Connect TC2030-CLIP retaining board. The clip is glued into a pocket flush with the top face, with its socket barrels in wells underneath. The wells flare at the top to make room for the solder on hand-soldered barrels. Grip ribs run along the long sides, and each end has a hole for a string or lanyard. Print it pocket up; it needs no supports. The pocket is 1.5 mm deep, sized for the clip board as I measured it. Tag-Connect's drawing gives 0.914 mm, so measure your board and change clip_t in the .scad if it differs.
