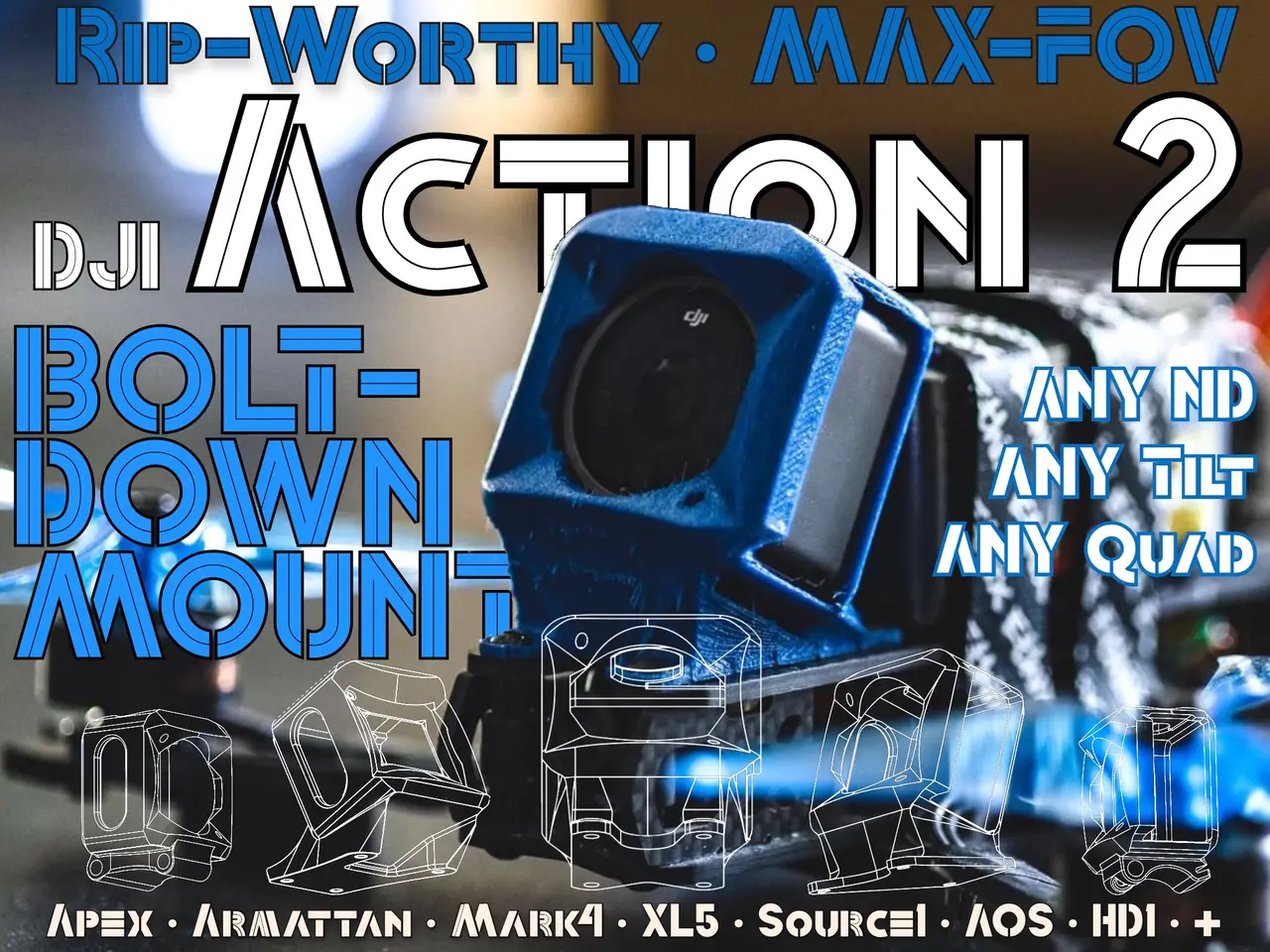

T4 Max FOV Action 2 DJI TPU Drone Mounts

Companion project to my other parametric configurable FPV designs: Pod | O4 | FrameWhoop Action2, 3-5AceProGoPro MiniHero 9-12Antenna Mount Protect your DJI Action2 camera with the best mount in FPV! Max protection with TPU in front of the lens but still with a clean image. How? I've modeled the camera's field-of-view (FOV) and built my design around it. My flexible on-demand design can fit 300 different frames, different camera angles, ND filter options, positions, etc.

This is an ON-DEMAND design! Only a few basic 15º versions are posted here, everything else is made for you (for free) on my 3D Design discord. You choose what options, I make you designs, you send me photos of your builds! See the Steps below.

New things: - I've made a new Instagram account for showcasing users' prints of my designs! - New back LCD protection modular wedge is now standard! See details below - New TBS ND filter redesign slots in from the side! - Thingiverse page is live! Go add a ❤ to save it for reference later!- post a make to show off your build and inspire others!

- Part of my on-demand alive 3D design projects. See the table above and all the designs in my profile! I've made tens-of-thousands of designs and new friends for pilots all across the globe. - Universal GoPro-style attachment version? I've got that design too over here - Look at all the photos of the makes! Post your own!

Maximum protection, bando-bash all day and keep it pretty! It's not remotely possible to upload every tilt for every frame with each ND option and each positioning. That would be thousands of files.. and they change every time I get new feedback. My designs are alive, they're always evolving. The purpose of this project is to hear from people and see your builds I helped make.

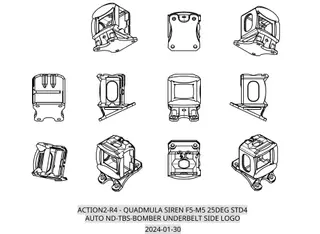

Step 1: Pick your quad(s) What quad you got?? I've made a highly flexible, adaptive system, with over 125 different bases, new ones every day. See the files tab for some common ones!

Step 2: Pick your uptilt angle(s) - Cinewhoops: 10-20º - Cinematic/Long Range: 20º - Freestyle: 25-35º - Racing: 40º+

Step 3: Pick your ND Filter (or none!) - Recommended: TBS (or TBS-Style plate-glass filters)- 2.5mm thick, slides into special slot. [tbs site] - Also compatible with the similar 2.5mm thick Camera Butter insert filters.

- Also great: Camera Butter Stick-on ND filters [cb site] - Ask for No-ND when requesting your mount!

- Magnetically attached filters: → NOT recommended! They take up space between the camera and the max FOV area– so there's less TPU that can fit anywhere to make up for it. I've extended the entry/exit side wall extra far to compensate but using this will be fundamentally more fragile. Definitely consider using the ‘underbelt’ option with the battery strap around everything if you're bashing. - Freewell, Telesin, Smallrig filters. All about 3mm thick and magnetically attached. [freewell site][smallrig amazon] - Fine for cinematic, may be a bit fragile for bando bashing.

- Pgytech filters, 3.4mm thick, magnetically attached. [pgytech site]

All ND versions/tilts are configured on-demand! See Step 8!

Step 4: Camera Positioning - Standard- Props probably in view - Full size underbelt slot (see below. adds extra protection option and reduces vibration / image jello) - Your quad's frame takes head-on impacts, camera hits second.

- Forward- Props hidden (depending on frame) - Small underbelt slot (if any) - Camera is more exposed. Less great for bando bashing.. but also this mount offers lots of protection.

- Custom extra-forward amount- You'll have to specify how far forward you want. - Props definitely hidden - No underbelt slot option. - Camera is very exposed out-front. Probably not best for bando bashing but great for cinematic.

Step 5: Horizontal or Vertical Yep, I can make any frame at any tilt with any ND in vertical orientation as well.. Still with full TPU protection.

Step 6: Bolts & Base Options - Base Thickness:- Standard is now 3.4mm thick. - Thick is 4mm

- Bolt style:- Standard size for M3 bolts is a 6mm diameter bolt-head.- Perfect for nearly all M3 bolts and plenty strong.

- Big-Boltz, for M3 bolts, has a 8mm diameter bolt head.- Great for things like these FPV Countersunk Washers if you want extra strength/flair.

- Shoulder-bolts option. - Great for products like the QuadMula PS-3 Spacers that come with the Quadmula frames.

Step 7: Extra configuration options - Underbelt slot allows for an optional battery strap around the camera for extra ejection protection and slightly more front-end hit protection.- Also seems to really reduce jello by allowing for a smaller area for vibration transmission to pass through. Great! - Now included by default on standard mounts.

- Extra base thickness- Beware: older designs uploaded here are only 2.2mm! - Standard is now 3.4mm thick. - Ultra thick is 4mm thick.

- Different camera wall size

Step 8: Request the STL! → Request on discord in the #action-2-mount channel ← Send me a message on! Everything is generated on-demand with the settings you ask for. Why? - The STLs in the ‘files’ section are outdated. - I can't possibly keep re-exporting, uploading, and organizing 80+ STLs after each tweak!

- They don't have the configuration you want. - ND filters? Angle that's not 25º? Underbelt option? Thicker base? - I can't possibly upload all the variations!

So request it! I've set up my discord as a cool queue system. I'll get you your custom STL in less than 24h, usually right away.

Step 9: Print the Mount - TPU filament required.- 95A hardness recommended

- Best printed as oriented in the STL! (on its side) - Use Tree support - Use 2 perimeter walls. (If you want more rigidity use Cubic infill instead!) - Infill: Use 20 - 30% infill.- 20% gyroid infill for cinematic / long range setups. Gyroid is strong and squishy, good for lower velocity impacts. - 25 - 30% cubic infill for bando bashing. Cubic is strong and far more rigid, far better for high-speed impacts to concrete. - Really don't go above 30% infill, it just adds extra weight but no strength benefit.

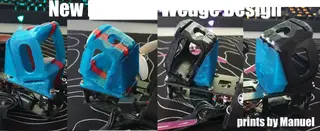

- Make sure to read about the wedge in Step 10
