Synthwave Sunset Brush and Pen Rack — modelo 3D

Synthwave Sunset Brush and Pen Rack

por Navya Singla en Printables

A retro sunset for SKÅDIS: 7 brushes or pens stand upright in 8-14 mm holes with matching pockets in the horizon shelf.

Descargar gratis Ver en Printables

Todos los archivos (1) en un ZIP

Licencia

Uso comercial permitido

CC BY 4.0 — Atribución

Puedes imprimirlo, modificarlo y venderlo dando crédito al autor.

Al descargar aceptas respetar la licencia y dar crédito a Navya Singla.

Archivos (1)
Categoría
Para tu impresora
Formatos
STL
Descargas
0
Publicado

Sobre este modelo

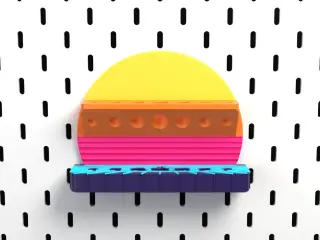

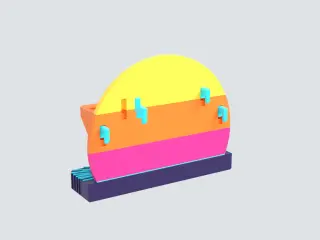

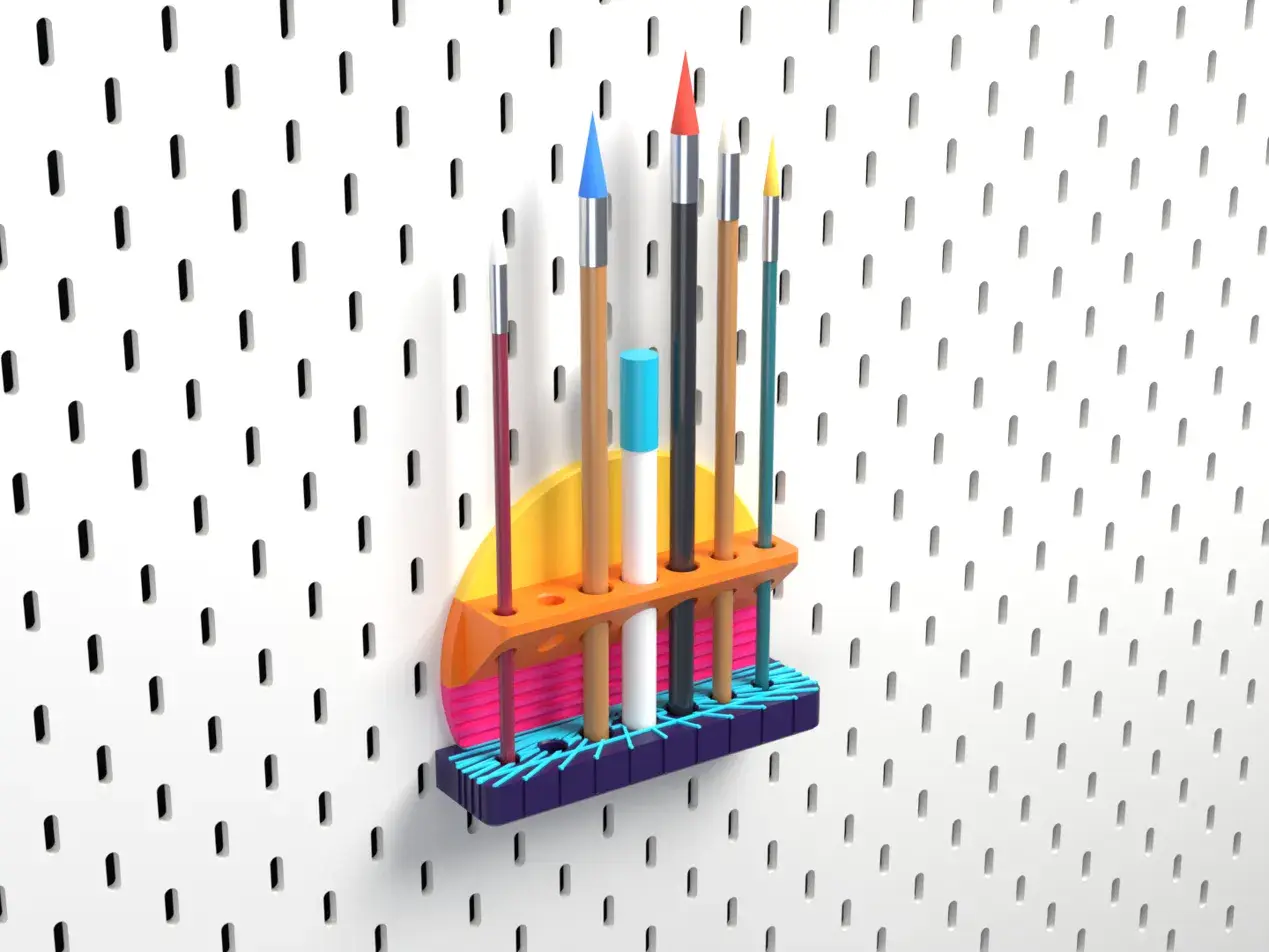

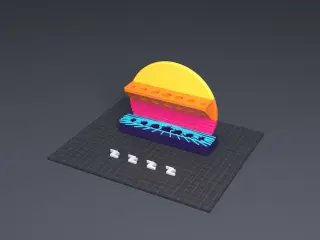

A retro synthwave sunset that keeps seven brushes or pens standing upright on a SKÅDIS board. What it holds: the striped sun is the back plate and the horizon line is a shelf. Seven holes in the upper shelf (8, 10, 12, 14, 12, 10 and 8 mm) line up with seven pockets in the horizon shelf, so every brush is held in two places and stands straight. Drop a brush in from above and lift it straight out. How it mounts: push two clips into SKÅDIS slots 80 mm apart, let them drop about 7 mm, then lower the rack onto them. Two more clips are optional. Lift about 6 mm and pull to take the rack to your desk. Parts: 1 rack and 4 clips, all in the one file. Print settings: PLA, 0.4 mm nozzle, 0.2 mm layers, no supports, 3 walls, 10 to 15% infill. It prints standing upright, as laid out in the file. Colour swaps (optional): dark purple to start, cyan at 16.0 mm, magenta at 16.8 mm, orange at 42.0 mm, yellow at 74.0 mm. Assembly: none. Clips into the board, rack onto the clips.

Descripción original del autor, publicada en Printables.
