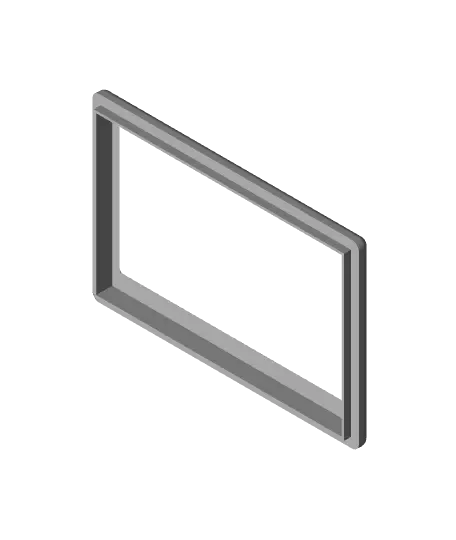

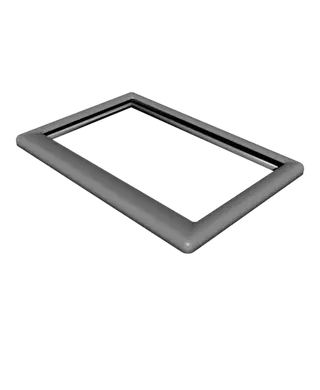

SW BTT Pi TFT43 Screen Enclosure.stl
por Fizzy's Tech en Thangs
This is a screen mount for the BigTreeTech Pi TFT43 touch screen to be mounted on the Voron Switchwire or the Ender 3 conversions. This screen is powered directly from the Raspberry Pi ribbon cable and best of all its plug and play - no 3rd party drivers need to be installed. You will need to purcha
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Fizzy's Tech.
Archivos (3)
- SW BTT Pi TFT43 Screen Enclosure.stl STL · 469 KB

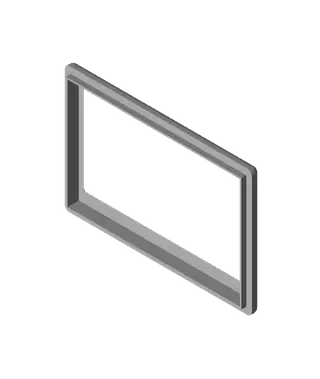

- SW BTT Pi TFT43 Frame Rear.stl STL · 1,3 MB
- SW BTT Pi TFT43 Frame Rear.stl STL
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 49
- Publicado
Sobre este modelo

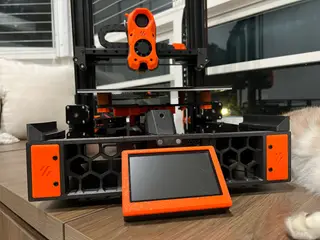

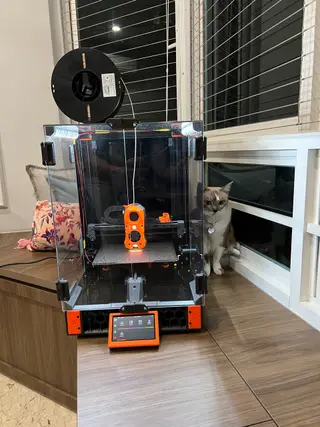

This is a screen mount for the BigTreeTech Pi TFT43 touch screen to be mounted on the Voron Switchwire or the Ender 3 conversions. This screen is powered directly from the Raspberry Pi ribbon cable and best of all its plug and play - no 3rd party drivers need to be installed. You will need to purchase a longer ribbon cable depending on where the Pi is mounted under the printer. There are no drivers/software that need to be installed!

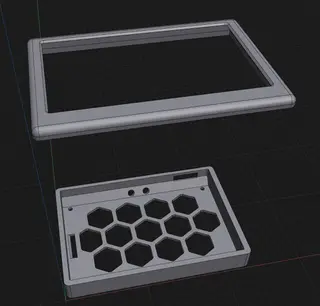

Assembly Once the 2 parts have been printed (Screen Enclosure & Frame Rear) Its time to assemble.
1. Pass the ribbon cable through the cutout if the Frame Rear and attach it to the screen. Its a good idea to power on the Pi to be sure the cable is attached correctly and that the screen powers up and displays correctly. 2. The screen will need to be mounted to the Frame Rear using 4 x M2x6 screws. 3. Slowly attach the Screen Enclosure (yes its a tight fit) and push it into place. It should fit nicely into the Frame Rear. 4. Use 2 x M3x20 screws to mount it to the grill from the inside. 5. ENJOY!
