Suzuki 25hp 3 cycle carburetor choke end linkage
por Cymen Vig en Printables
For linkage between the choke knob arm and the carburetor
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Cymen Vig.
Archivos (4)
- Categoría
- Repuestos
- Formatos
- F3D, STEP, 3MF
- Descargas
- 0
- Publicado
Sobre este modelo

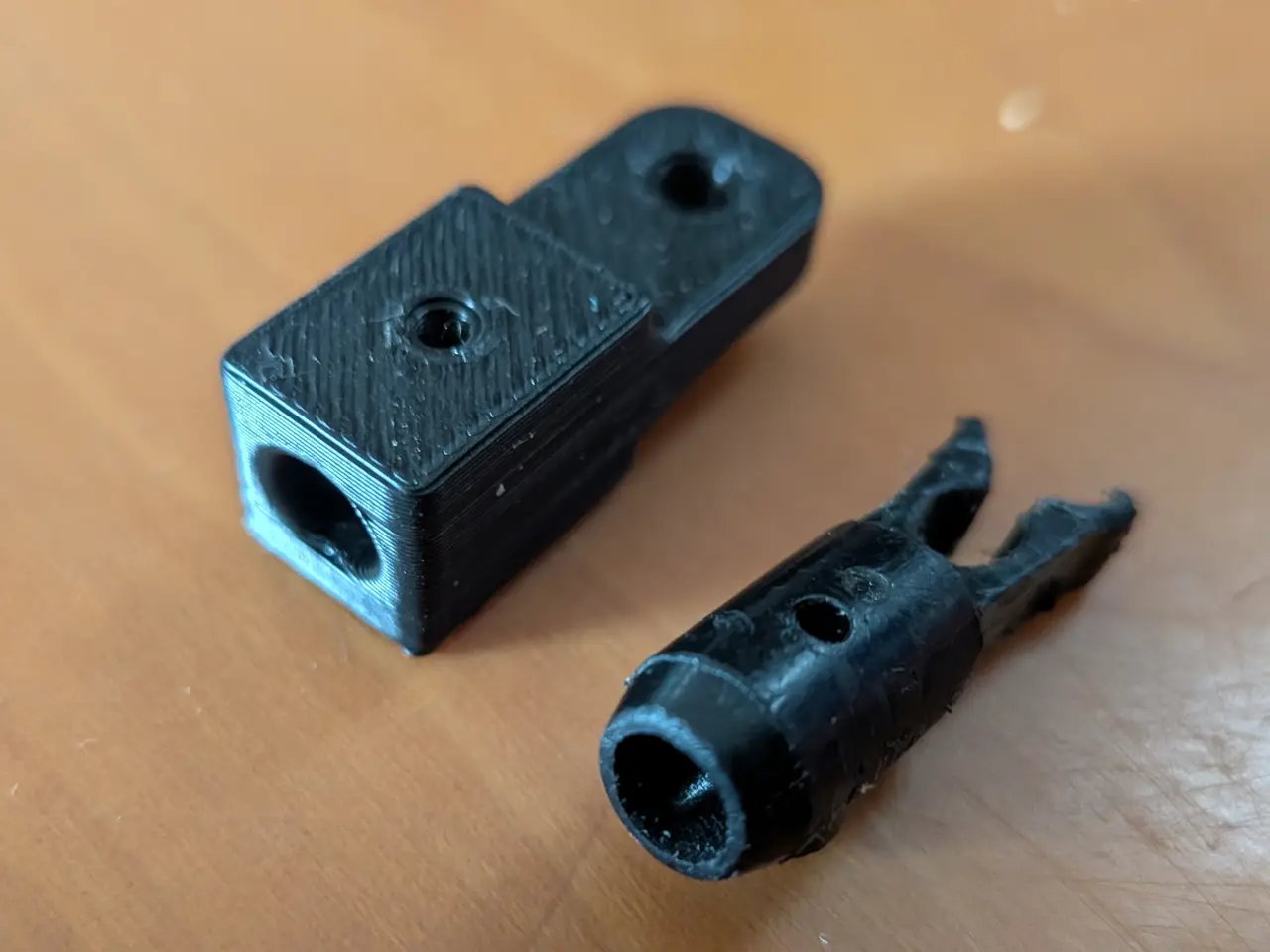

On the front of the motor is a choke knob. That knob connects to a metal shaft. The metal shaft connects to a plastic adapter that has an expanding part that clips onto the metal knob of the choke mechanism on the carburetor. That bit of plastic apparently can crack and then it's a pain to try to fix it. This 3D print fixes that problem. Print with supports. We tried 3.9mm and 4.0mm for the metal knob of the choke mechanism fit. I don't recall which is perfect but the CAD files are included if you need to tweak it. We printed in PLA which should be fine but maybe something a bit more heat resistant would be ideal.
