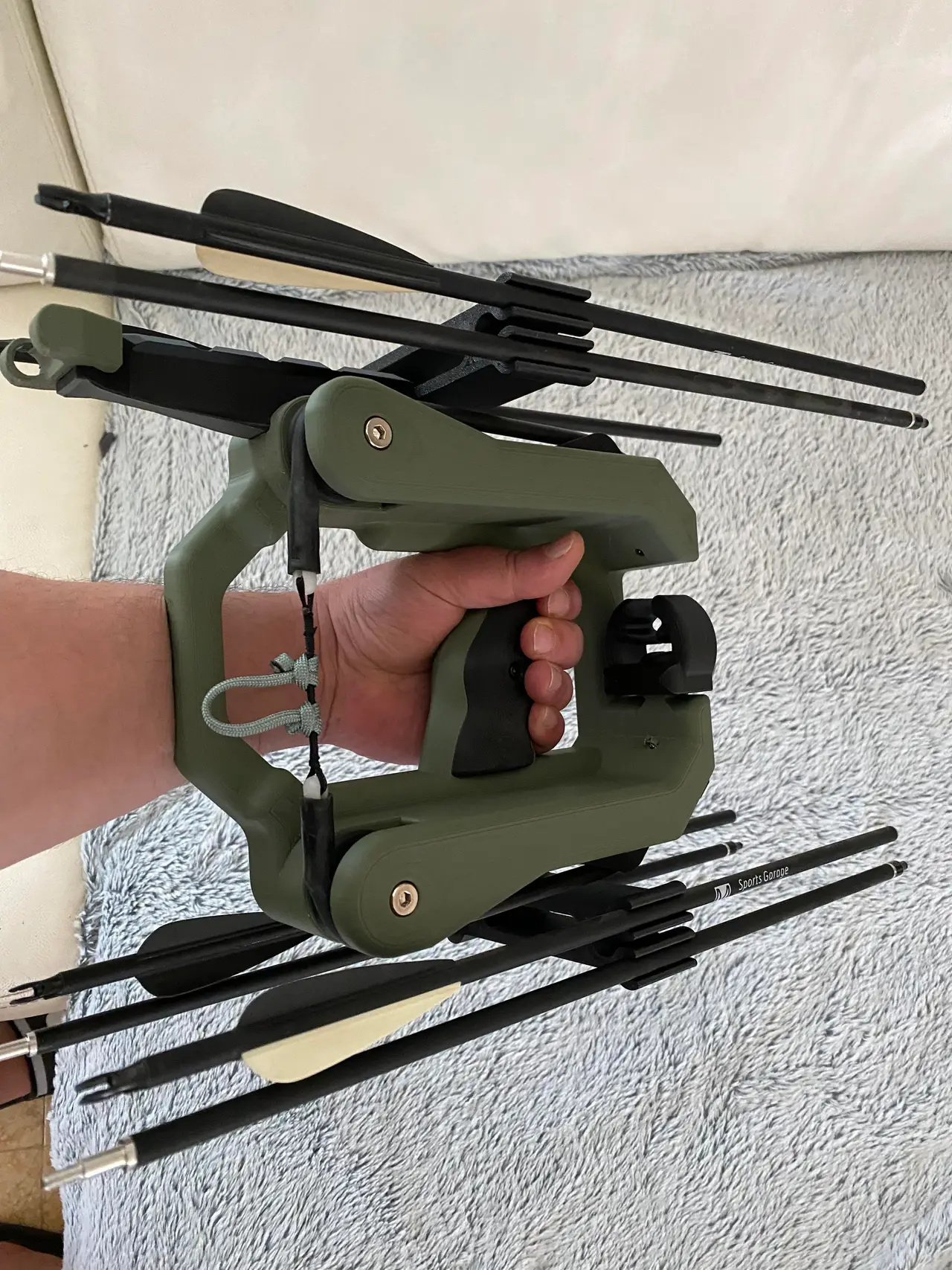

Survival Fishing X-Bow (Jörg Sprave Inspired design) V1.0

Ladies & Gentlemen it gives me great pleasure to announce a new competition to win multiple printers from Anycubic and Bambu lab, all you have to do is design accessories for the XBow Version 2.0 Pro send me links to your designs and in 30 days i will announce the winners, currently i have enough credit for 5 printers also click the link and join makerworld https://bit.ly/4dqCmGa the more join the more gifts i can give out, this is sponsored by GCI Admins and not Anycubic or Bambu, so a special thanks to our lads 😍 Don't forget to "Click A Like" & check out my other Cool designs and Follow my Weekly dose of KooKoo uploads, PLZ leave a comment what you want next! Version 2.0 Ultimate Edition https://makerworld.com/en/models/526534#profileId-454892 Note: I added the STEP files so feel free to mess with them! ACCESSORIES: https://www.thingiverse.com/thing:6644829 -Mongolian Style Release https://www.thingiverse.com/thing:6252161 -Serving Tool https://makerworld.com/en/models/486891#profileId-399732 -XBow Sight by Durbanpoisonpew https://www.thingiverse.com/thing:6656710 -Broadhead Organizer https://www.thingiverse.com/thing:2695878/files -Fishing Accessories This was requested by one of my followers, its "still in the works" because i wanted a professional archer to give it a go and give me feedback on how well it works as I'm no expert and I only shoot bows for fun. Frame dimensions in mm > x:190 · y:212 · z:70 Its intended to an all in one survival tool so i will be adding a few more accessories in the future. I also tried to use bearings in the pulleys but they didn't affect shooting much so you can def get away with just solid pulley. Print Settings: 25% infill 8 walls on most parts except the pulley, Band Mounts & WB which I used 12 to make sure it does not flex Supports only for the frame, NO Brim or Raft required, Long and easy print ;) NOTE: I just added the print profile i'm using on my Bambu printers BOM: Bands length after cutting 180mm L Paracord for the string Pully: M6 60mmL Furniture screw x2 Optional Flanged Bearings x4 (F696zz) Grips: M3 12mm L x2 3mm 22mm L x2 Pins Rubber Holders: M5 30mm L x2 Band Aligners: 3mm 14mm L x4 pins P Rail: M3 20mm L x1 Attachments/Accessories: M6 40mmL Furniture screw + Barrel nut (Some require more than one set) Fishing Reel: Winding Handle M6 60mmL Furniture screw Spool M6 60mmL hex screw + Lock Nut Bands cut 50mm from each end to give you the equivalent of a 30lb bow at 28" draw length. If you cant find the exact ones you can use any tube band with 8mm OD and 4mm ID x 180mm L... https://bbguns4less.co.uk/products/trumark-slingshot-power-band-heavy-pull-rr-2.html Takedown Arrows: https://www.amazon.com/gp/product/B09WVT3J6T Furniture Screws: https://www.amazon.de/-/en/Furniture-Cylindrical-Connecting-Galvanised-Connector/dp/B09NLTT3Z3/ref=sr_1_14 Bubble Level: https://www.amazon.de/dp/B0C5ML9QXD? Testing: https://www.youtube.com/shorts/lVDLl8R8F2E & https://www.youtube.com/shorts/coq2-F3OdlM & https://www.youtube.com/watch?v=QtruCNdfnFA&ab_channel=CrizzledOne & https://www.youtube.com/watch?v=xCAaZIdIrDE&ab_channel=kennyBolles If you are interested in other prop firearms, Airsoft parts, tutorials and designs do join our group on Matrix: https://app.element.io/?pk_vid=f12152aac29bbc4a166549437941781a#/room/#GCI-General:matrix.org !!!Note: I'm always open for suggestion and help on improving the design and proof of concept. !Don't forget to hit the LIKE! & check out my other Cool designs & Follow my Weekly dose of KooKoo uploads ;)
