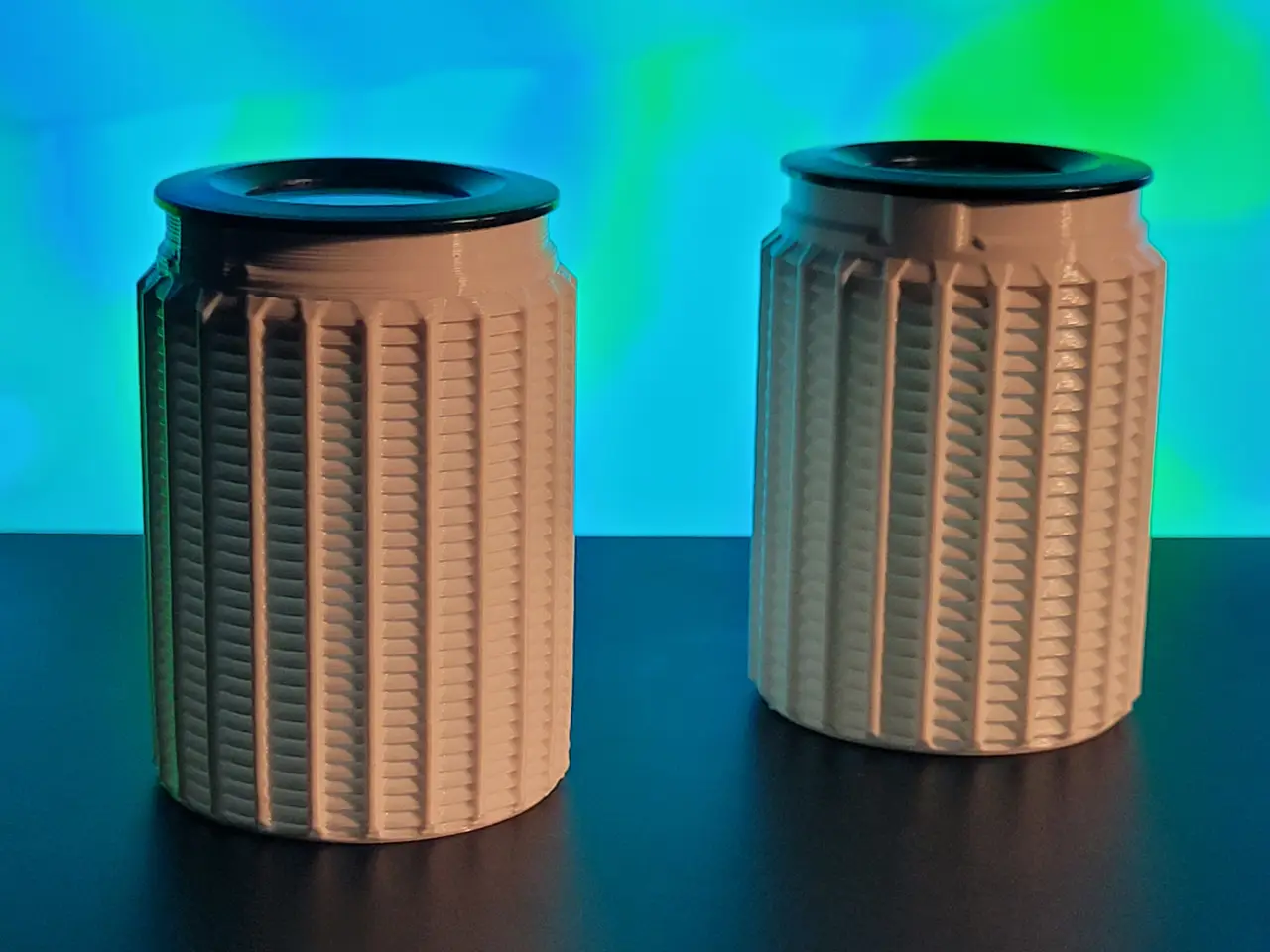

Super fast silica gel desiccant spool container - vase mode
por Tomek en Printables

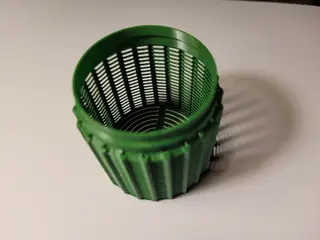

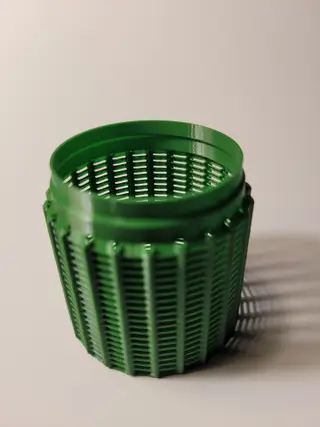

Silica gel spool container, vase mode (less than 20 mins) compatible with cheap round chinese termometer/higrometer.
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Tomek.
Archivos (8)
- silicagel_vase_v3_small_gap(1mm)_cap.stl STL · 548 KB
- silicagel_vase_v3_big_gap(1.4mm)_cap.stl STL · 553 KB
- silicagel_vase_v3_small_gap(1mm)_50mm.stl STL · 10,9 MB
- silicagel_vase_v3_big_gap(1.4mm)_50mm.stl STL · 9,3 MB
- silicagel_vase_v3_big_gap(1.4mm)_70mm.stl STL · 13,7 MB
- silicagel_vase_v3_big_gap(1.4mm)_100mm.stl STL · 20,1 MB
- silicagel_vase_v3_small_gap(1mm)_70mm.stl STL · 16,0 MB
- silicagel_vase_v3_small_gap(1mm)_100mm.stl STL · 23,5 MB
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 4,510
- Publicado
Sobre este modelo
About I really love original Silica gel spool container by @gdrag. However I wanted to achieve Three additional goals:

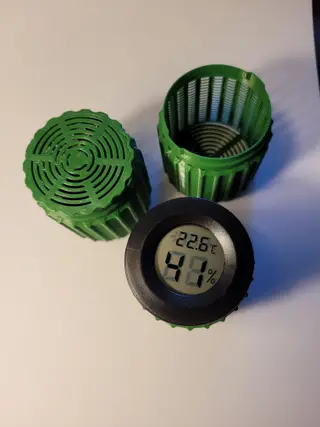

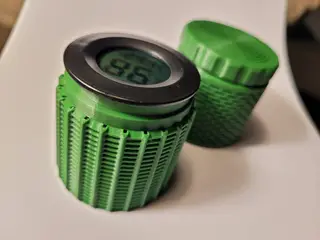

- Make a spiral (vase) print to reduce filament and time, - Add some distance between side holes and internal wall of the spool to improve air circulation, - Use cheap Chinese hygrometer/thermometer as a cap, so I can know more or less if I'm successful at drying filament.
How to print: - adjust bottom thickness to 1mm - use spiral (vase) mode (optional for cap) - I tried 0.25mm layer height (but think everything between 0.1 and 0.3 will work) - The print works fine for 0.4 - 0.7 line width - for thicker lines - hole diameter can be to small and you can have some problems closing container with cap or hygrometer. Make a single test print before bigger batch. You can always try “XY compensation” (remember to compensate only container - not the cap) in slicer - but I'm not sure if it works in vase mode. Nevertheless up to 0.8 works for me - it's just very tight.
Cura users: New Cura (5.2) removes all bottom holes by default in spiral mode - so after enabling “Spiralize” you have to uncheck “Remove All Holes” option to reenable holes on the bottom of the container.
I used my Anycubic Mega (with changed printhead and Klipper firmware) and it prints in about 20 minutes (short version)
TODOs: - (done) Make various heights - (done) Make lightweight cap in case One doesn't want to use hygrometer
CHANGELOG:
13.07.2022. Redesigned container: - New project (but based on previous shape) - Minor changes to help print better - Two flavours:- small_gap: holes on tom and bottom are narrower (1mm) and segments are 2mm thick - big_gap: holes on tom and bottom are wider (1.4mm) and segments are 2.5mm thick
- Three sizes for each flavor (50mm, 70mm, 100mm)
12.04.2022. Redesigned container: - Added route for inserting hygrometer. - Added curves to the design to reduce sharp corners and deceleration points. Now container can be printed below 15 minutes - improved bottom grid pattern
Added cap, so even if You don't have hygrometer, You can still use this design
11.04.2022. Initial design
