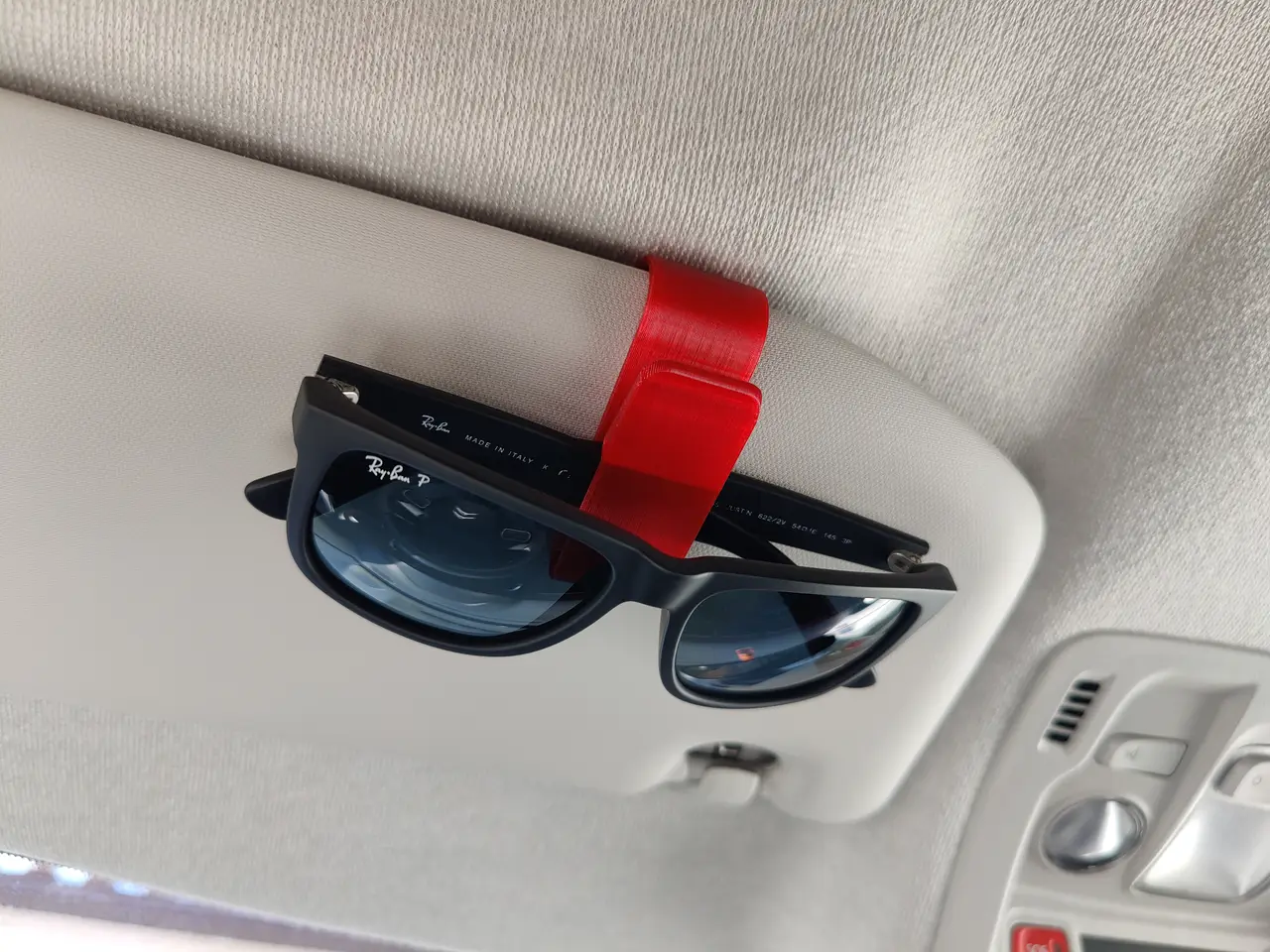

Sunglasses Car Clip

Edit 24/11/2022 I've printed the model in ASA now so it should have a better resistance to heat. However, winter as come and the temperatures are not enough to properly test it.

Do not print in PLA Works best for thick sunglasses (6mm clearance)

I really enjoyed moacmoa design, first I printed it in PLA but it quickly deformed, and then I moved to PETG with better results. But even when printing in PETG at 100%, with time it deformed as well. I increased the clip width to try to achieve even better results and to have a sturdier piece that doesn't deform easily. The pieces have a gap of 6mm for the glasses, keep this in mind for glasses with slim frame arms.

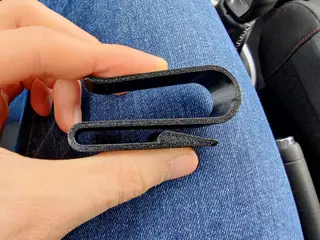

↳ Heat deflection can happen with time (PETG for both colours)

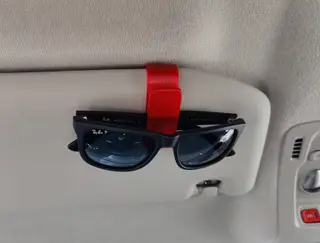

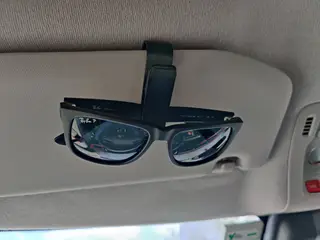

↳ 20mm version (left, black, original), 25mm version (right, red)

Printing I don't recommend printing this in PLA, please use PETG or other material with high heat deflection temperature. For this piece, I use 100% infill in order to have minimum part deflection due to temperature. I recommend using 3 perimeters to cut printing time. Since the first couple of layers have a steep angle it creates a bit of an overhang, a bit of support (support on the build plate only) is advised, it will only add 1 minute to the build time and the part will come out perfect.

Credits Sunglasses Car Sun Visor Clip by moacmoa
