Subaru Forester SK Sun Visor Pivot Repair Mount

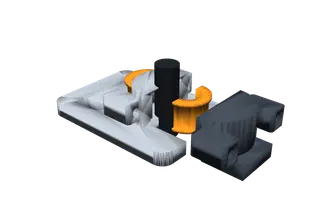

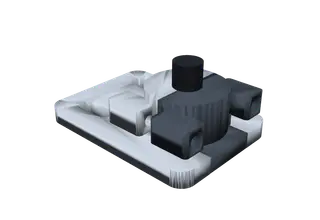

A serviceable 3D-printable repair architecture for a broken Subaru Forester SK sun-visor pivot/mounting area. V2 is built around a side-entry split housing and replaceable low-friction bearing cartridge instead of rigidly clamping the visor rod. The design is intended to preserve swivel movement while transferring roof-mount loads through a reinforced base.

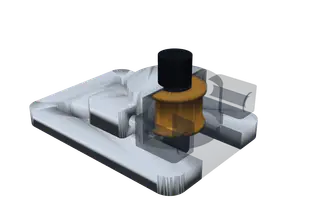

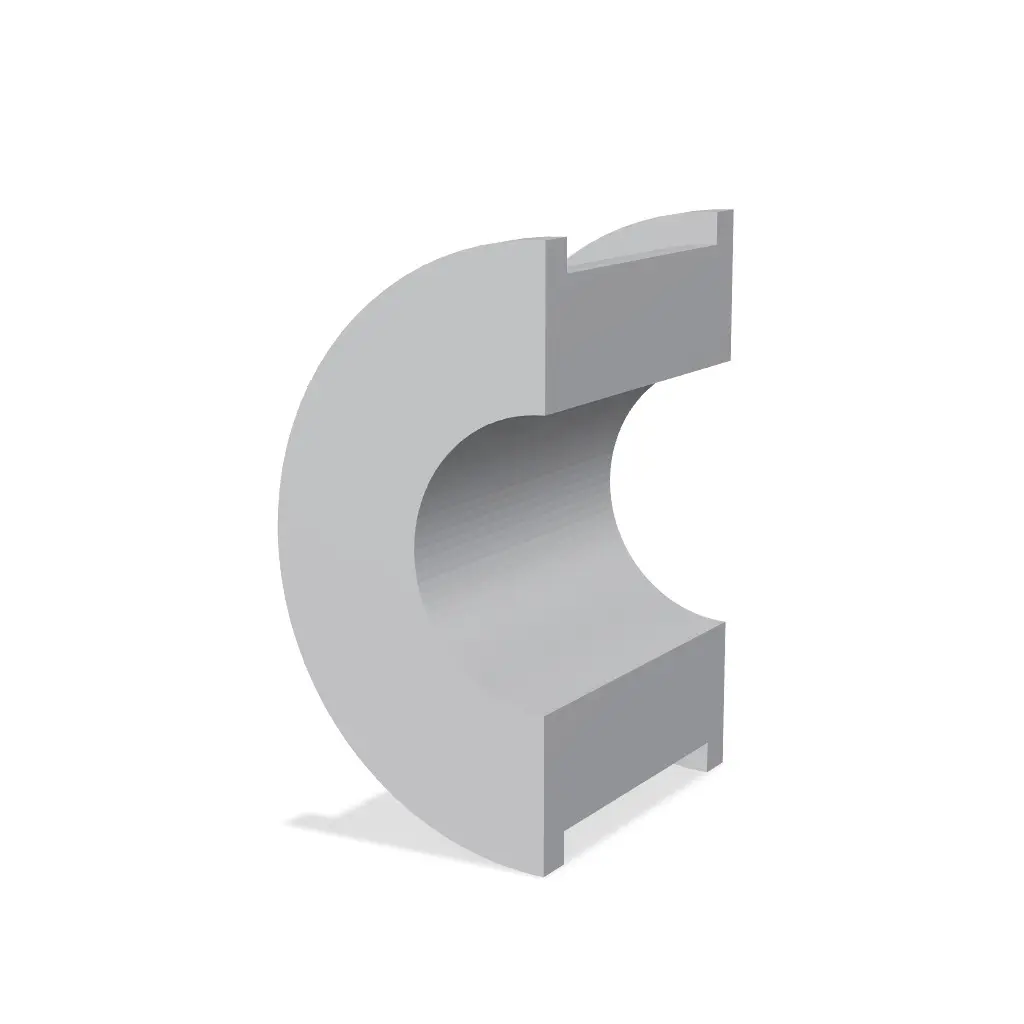

WHY V2 - Side-entry architecture: installs around an existing pivot shaft without requiring the rod to pass through a closed hole. - Replaceable split bushings: 8.0 to 11.0 mm shaft families in 0.5 mm steps. - Two running-fit classes: STANDARD (+0.30 mm diametral) and FREE (+0.50 mm). - Flanged bushing cartridge controls axial movement and can be replaced without reprinting the structural base. - Reinforced pivot housing with gussets and large fillets. - Mechanical M3 through-bolts and captured hex nuts; no heat-set inserts in the hot-load joint. - Mirrored ENTRY-R and ENTRY-L versions. - 2.2 mm quick fit gauges included so roof screw alignment and trim clearance can be checked before printing ASA/nylon structural parts.

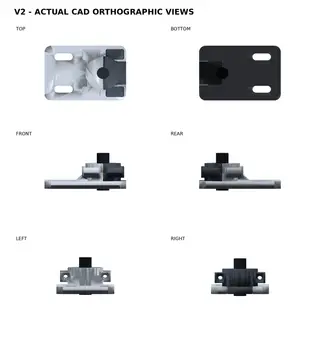

FILES INCLUDED STEP, STL and 3MF for both structural orientations, both fit gauges, and every bushing size/fit class. Editable CadQuery source, parameter JSON, QA logs, engineering drawings, tolerance analysis and engineering dossier are also included.

TARGET APPLICATION Subaru Forester SK-generation sun-visor pivot repair, model years 2019-2024 as the intended fit-development family. Subaru parts catalogs show complete visor assemblies rather than a separately serviced pivot mount for these vehicles, and recent owner reports continue to document visor/pivot failures. Exact mount geometry must still be confirmed on the target vehicle with the included gauge before this file is represented as a tested direct-fit replacement.

PRINT MATERIAL ASA minimum for the structural base/keeper. PC or nylon-class materials are preferred where the printing process is controlled. For the moving bushing, unfilled PA12/PA6 is preferred. PLA is not recommended for permanent automotive-cabin use.

HARDWARE 2 x M3 x 35 socket-head screws 2 x standard M3 hex nuts OEM Subaru roof screws, reused only if undamaged and correct for the vehicle

IMPORTANT Do not globally scale the structural CAD. Use the supplied fit gauge and bushing matrix.
