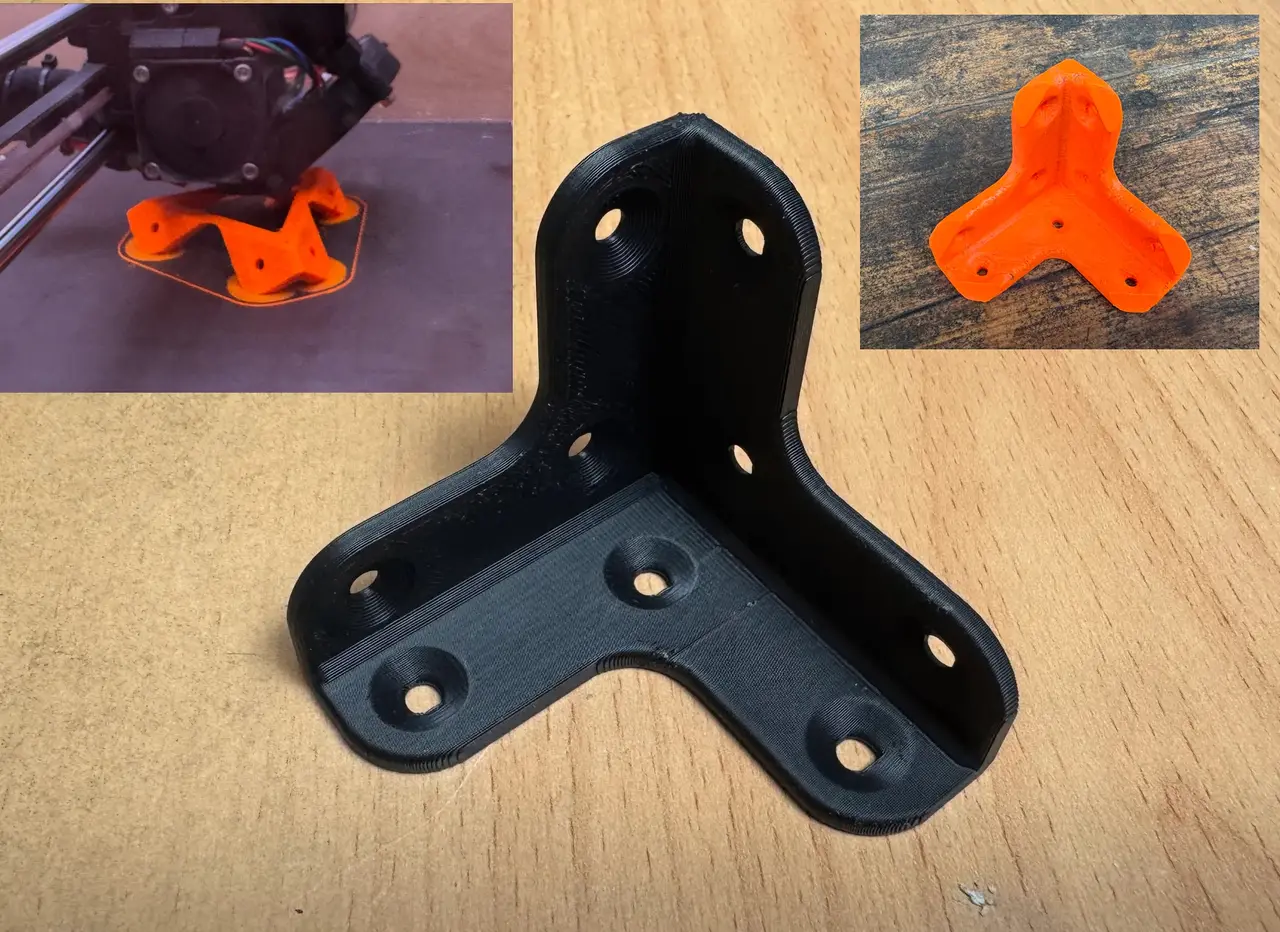

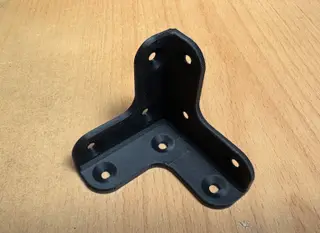

Strong Rounded Corner Bracket
por Dudla en Printables

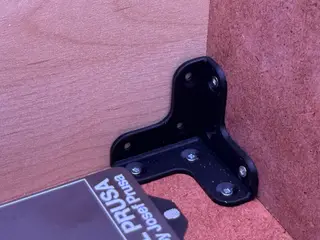

Corner bracket to make 90 degrees connection of three panels easier and stronger. For 3-4mm screws. Printable as pyramid
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Dudla.
Archivos (5)
- Categoría
- Repuestos
- Formatos
- STL, 3MF
- Descargas
- 1,901
- Publicado
Sobre este modelo

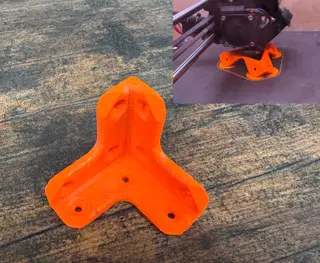

I recommend printing from ASA but PETG will also work. 0.2mm layer height. 4 or more perimeters will make it stronger. I also included a variant for printing laying on the arms (as a pyramid) so that the orientation of the layers makes it even stronger. Dimensions: - 3mm thick version 54 x 54 x 54mm - 4mm thick version 55 x 55 x 55mm - 5mm thick version 56 x 56 x 56mm
Wholes prepared for countersunk screws of 3 to 4 mm diameter. UPDATE: added variant of 5mm version placed on the pad as pyramid for symmetrical orientation of the layers to make it even stronger - must print with brim
