Strong Printable Clamp
por squinn en Printables

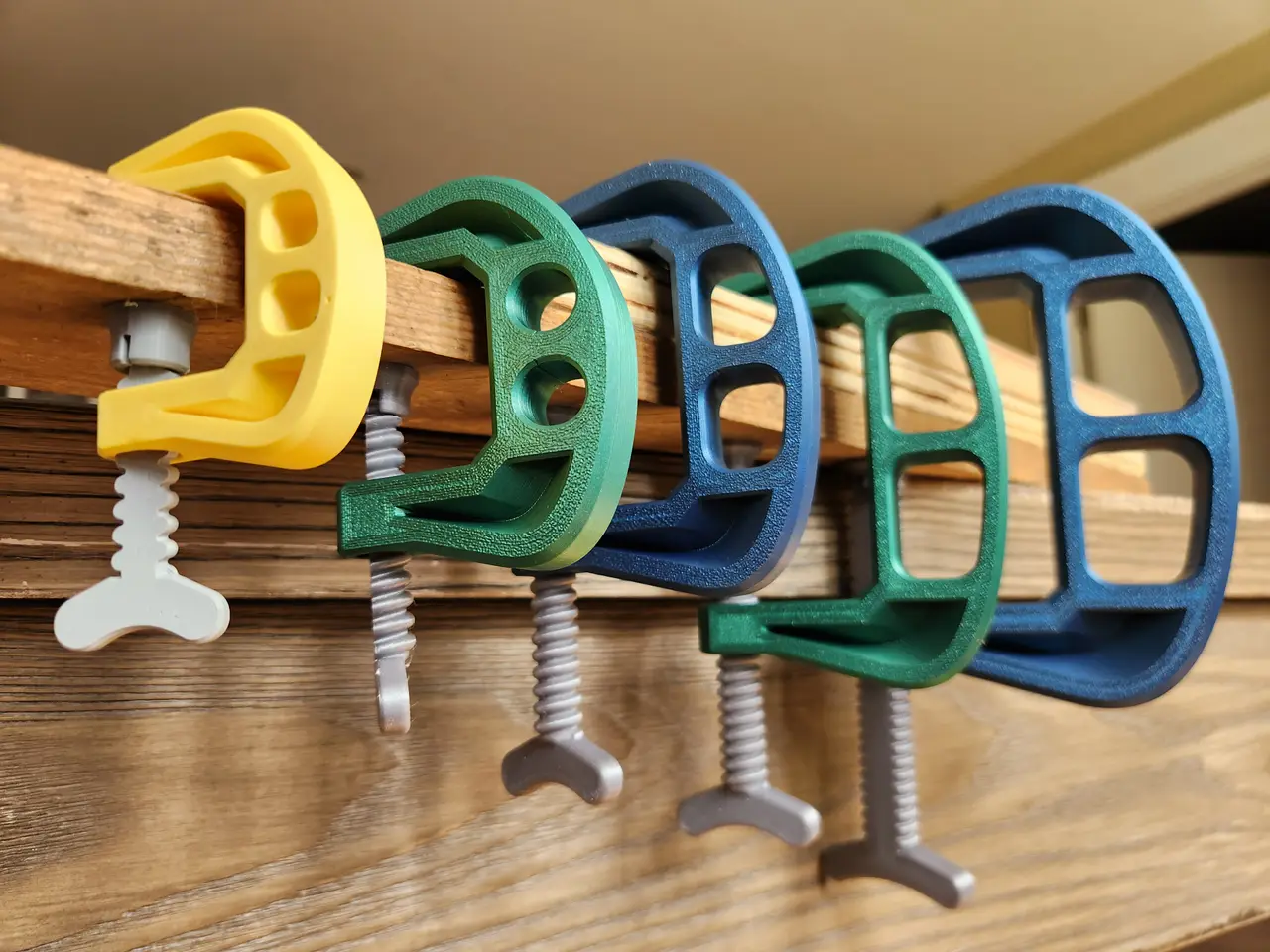

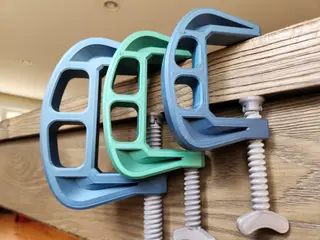

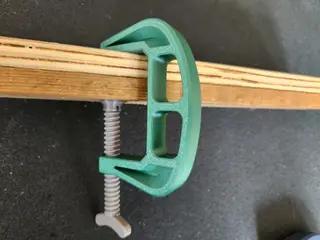

Five sizes of a C-clamp designed so the threaded screw portion prints laying flat, creating a strong functional clamp.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a squinn.
Archivos (15)
- Jumbo - Frame.stl STL · 633 KB
- Jumbo - Screw.stl STL · 1,3 MB
- Jumbo - Foot.stl STL · 477 KB
- Large - Frame.stl STL · 596 KB
- Large - Screw.stl STL · 988 KB
- Large - Foot.stl STL · 498 KB
- Medium - Frame.stl STL · 574 KB
- Medium - Screw.stl STL · 806 KB
- Medium - Foot.stl STL · 558 KB
- Small - Frame.stl STL · 674 KB
- Small - Screw.stl STL · 713 KB
- Small - Foot.stl STL · 532 KB
- Mini - Frame.stl STL · 626 KB
- Mini - Screw.stl STL · 689 KB
- Mini - Foot.stl STL · 428 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 17,184
- Publicado
Sobre este modelo

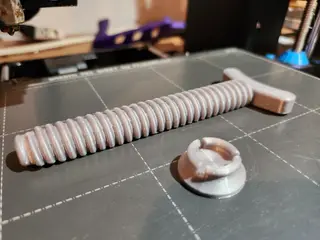

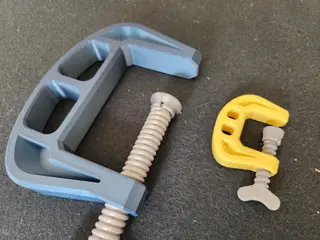

This fully printable C-clamp has been designed so that the screw portion prints flat on the print bed, which allows the layer lines to be optimally oriented to create an impressively strong functional clamp. Five different sizes are provided with clamp opening sizes ranging from 3 cm to 10 cm (and the “mini” version has a bit of a cute factor). The threaded hole is designed with a keyed knockout, and so no supports are needed to print any of the parts.
Descripción original del autor, publicada en Printables.
