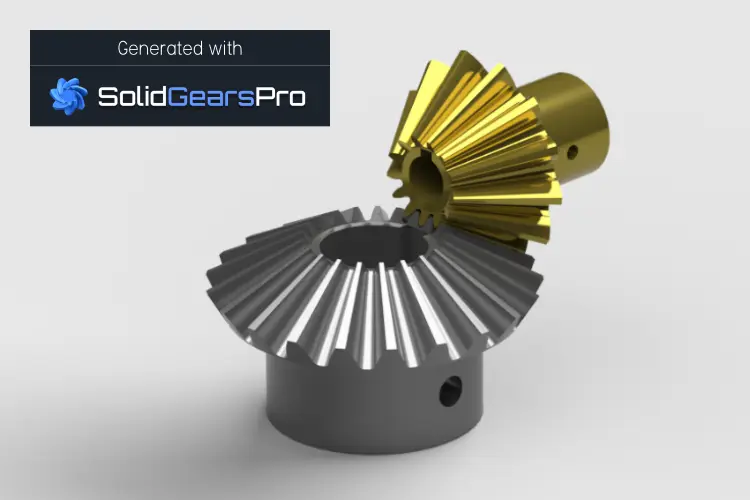

Straight Bevel Gear Set
por gearsandmore en Thingiverse
This gear set was generated with SolidGearsPro at https://solidgearspro.pages.dev If you need different gear types, dimensions, tooth counts, module sizes etc, feel free to generate your own costum gears at SolidGearsPro. Choose between - Spur Gears - Helical Gears - Herringbone Gears - Straight...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a gearsandmore.
Archivos (4)

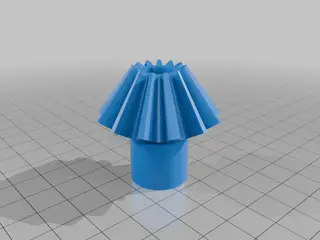

- STL--STBG--M2--N13--PA20--C0_25--X0--B0_2--R0_75--W20--CA31_759--HB20x20--HL9x38_263--KW3x1_4--CB3x10.stl STL · 5,2 MB

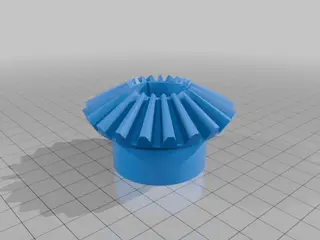

- STL--STBG--M2--N21--PA20--C0_25--X0--B0_2--R0_75--W20--CA58_241--HB40x20--HL20x32_559--KW6x1_565--CB6x10.stl STL · 5,7 MB
- STEP--STBG--M2--N13--PA20--C0_25--X0--B0_2--R0_75--W20--CA31_759--HB20x20--HL9x38_263--KW3x1_4--CB3x10.step STEP · 2,6 MB
- STEP--STBG--M2--N21--PA20--C0_25--X0--B0_2--R0_75--W20--CA58_241--HB40x20--HL20x32_559--KW6x1_565--CB6x10.step STEP · 3,3 MB
- Categoría
- Para tu impresora
- Formatos
- STL, STEP
- Descargas
- 236
- Publicado
Sobre este modelo
This gear set was generated with SolidGearsPro at https://solidgearspro.pages.dev If you need different gear types, dimensions, tooth counts, module sizes etc, feel free to generate your own costum gears at SolidGearsPro. Choose between - Spur Gears - Helical Gears - Herringbone Gears - Straight Bevel Gears - Spiral Bevel Gears - Herringbone Bevel Gears
and export them as - STEP export for precise B-Rep geometry - STL export for high resolution mesh
This gear set includes a wheel and a pinion with following parameters: - normal module mn=2mm - normal pressure angle αn=20° - number of teeth zwheel = 21 - number of teeth zpinion = 13 - tip clearance factor cwheel = 0.25 - tip clearance factor cpinion = 0.25 - profile shift factor xwheel = 0 - profile shift factor xpinion = 0 - normal backlash bwheel = 0.2mm - normal backlash bpinion = 0.2mm - tool edge radius rwheel = 0.75mm - tool edge radius rpinion = 0.75mm - pitch angle δwheel = 58.241° - pitch angle δpinion = 31.759° - face width w = 20mm
Descripción original del autor, publicada en Thingiverse.
