Steam Frame dongle holder magnetic | Parametric
por Verg en MakerWorld
Steam Frame dongle holder | Magnetic | Parametric. If you're using the included dongle with your Steam Frame and an extension cable, the dongle will most likely end up lying on the floor. With this 3D-printed holder, you can attach magnets to the back, allowing you to mount the dongle somewhere…
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Verg.
Archivos (1)
- steam_frame_dongle_holder_parametric.scad SCAD · 3 KB
- Categoría
- Tecnología
- Formatos
- SCAD
- Descargas
- 0
- Publicado
Sobre este modelo

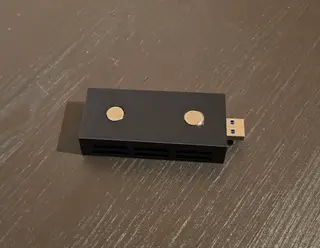

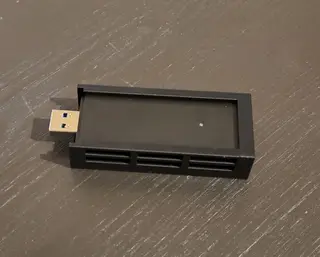

Steam Frame dongle holder | Magnetic | Parametric If you're using the included dongle with your Steam Frame and an extension cable, the dongle will most likely end up lying on the floor. With this 3D-printed holder, you can attach magnets to the back, allowing you to mount the dongle somewhere higher up.
A parametric OpenSCAD model is included in case you want to make any adjustments, although the default print profiles should work just fine.

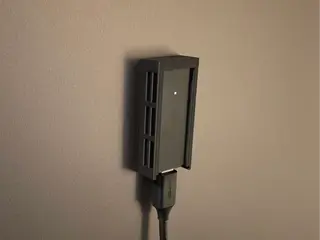

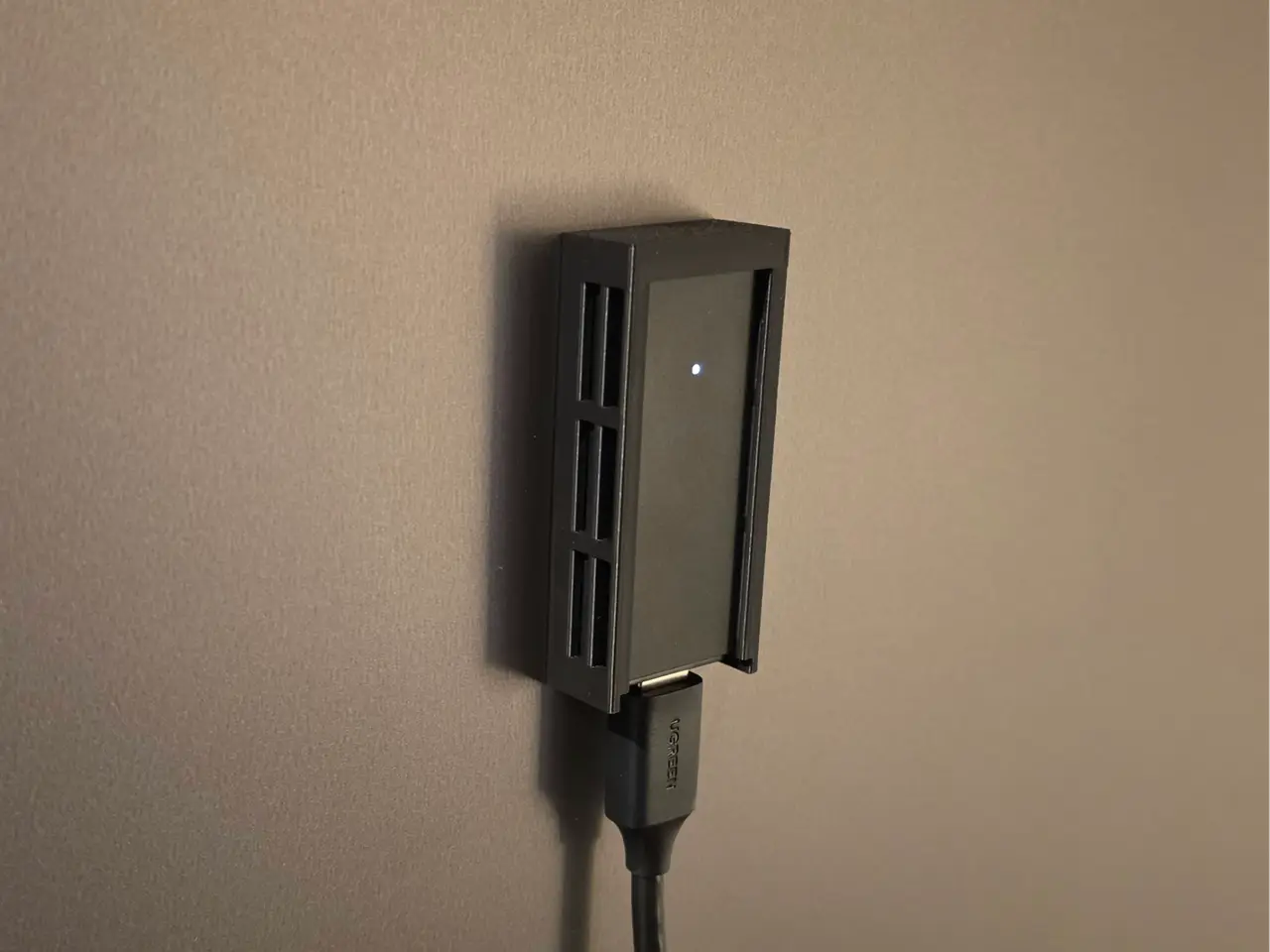

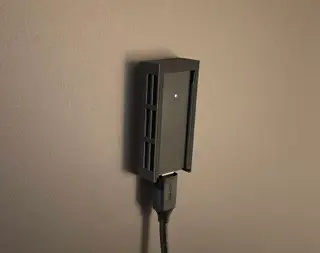

The depth clearance is set to 0.7 mm by default, providing a nice, snug fit that allows you to mount the holder with the opening facing downward without the dongle falling out. However, depending on your filament and printer calibration, you may need to adjust this value in the parametric model.

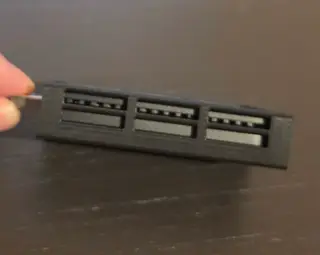

The sides of the holder feature openings to ensure that the dongle's ventilation holes remain unobstructed.
I've included three print profiles for common magnet sizes. The parametric model offers additional customization options, including the ability to create a completely closed back if you prefer using double-sided tape instead of magnets.
Descripción original del autor, publicada en MakerWorld.
