Starmix adapter plate like Unifix

This adapter and templates are designed to provide a modular mounting system for the Starmix iPulse vacuum cleaner, similar to the Unifix system. Overview Unlike fixed single-purpose mounts, this base plate offers a flexible foundation. The actual holders for your specific equipment need to be printed separately and screwed onto this plate.

https://www.printables.com/model/215785-festool-systainer-sortainer-lock Instructions & Assembly - Printing the Plate: - The main adapter needs to be printed 4 times in total.

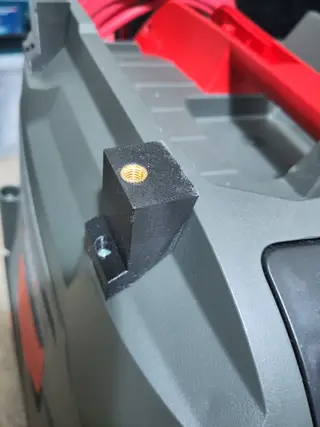

- Threaded Inserts: - Install M8 heat-set threaded inserts into the designated holes of the printed parts to ensure a durable and strong connection.

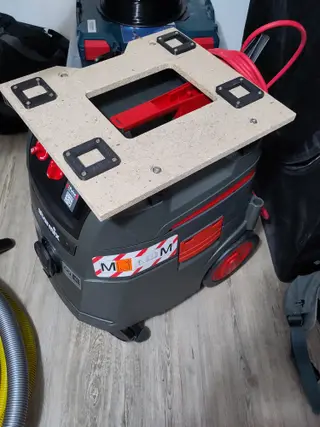

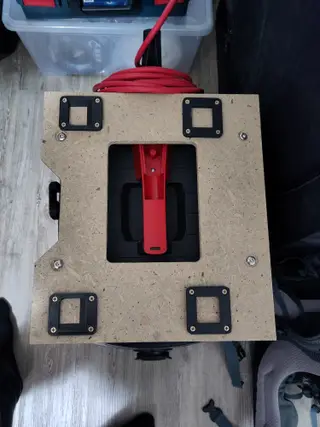

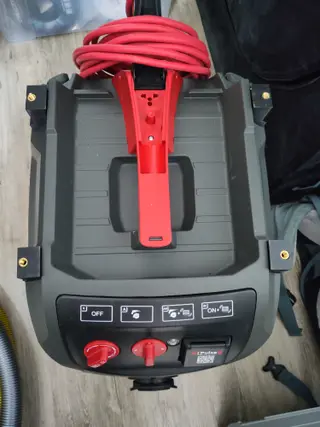

- Mounting: - Screw the assembled adapter plates directly onto the vacuum cleaner.

- You can use every M8x20mm flat head screw (https://www.amazon.de/dp/B0GF11RFLP)

- Templates Included: - The additional models included in this file serve as milling and sawing templates to help you accurately cut or route custom mounting shapes.

- Print Bed Size Note: Depending on your printer's bed size, the plate may not fit as a single piece. It has been designed so that it can easily be split using your slicer's cut tool. Using alignment pins/dowel pins during printing will help join the split sections securely.

Recommended Print Settings - Material: PETG or ABS/ASA (for increased strength and durability)

- Infill: 20–40% minimum

- Perimeters/Wall Loops: 3–4 walls for extra strength around the mounting holes and inserts

Disclaimer: Text and cover photo made by AI. Models are hand-crafted with a large number of test prints.
