Starlink Mini Pole Mount To Tripod Adapter — modelo 3D

Starlink Mini Pole Mount To Tripod Adapter

por Trent Palmer en Printables

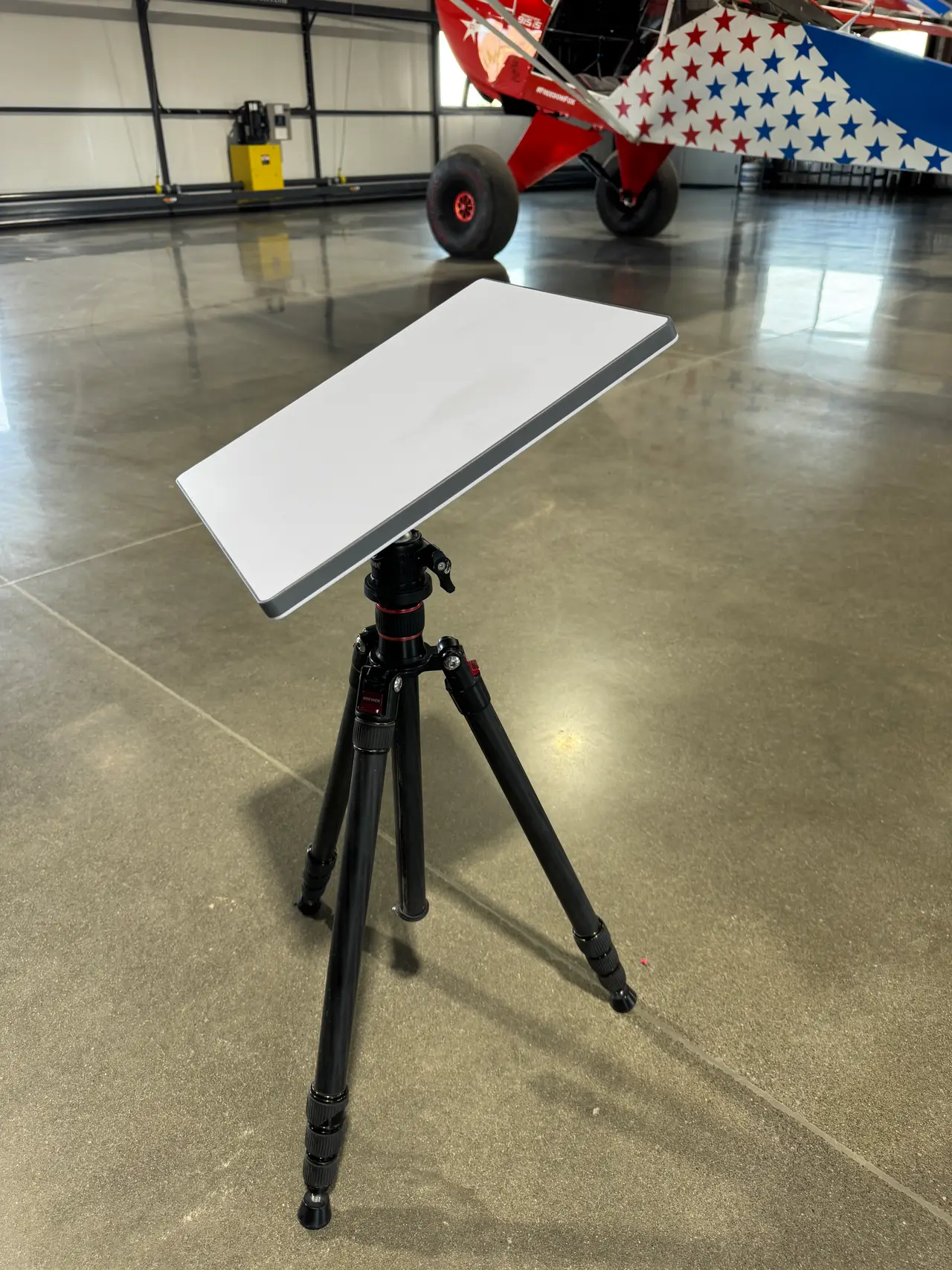

This is an adapter to use the pole mount provided with the Starlink Mini and attached to the top of a photo tripod.

Descargar gratis Ver en Printables

Todos los archivos (5) en un ZIP

Licencia

Solo uso personal

CC BY-NC 4.0 — Atribución, no comercial

Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.

Al descargar aceptas respetar la licencia y dar crédito a Trent Palmer.

Archivos (5)
Categoría
Tecnología
Formatos
STL, STEP, OBJ, F3D
Descargas
1,744
Publicado

Sobre este modelo

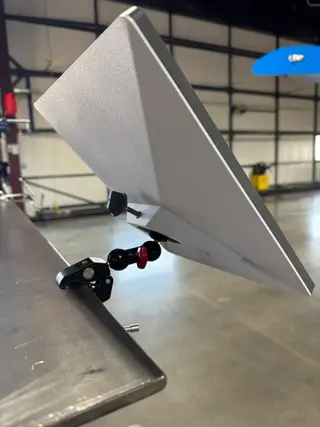

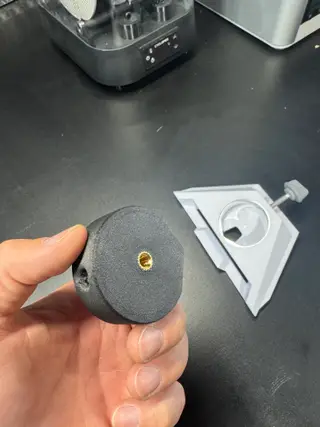

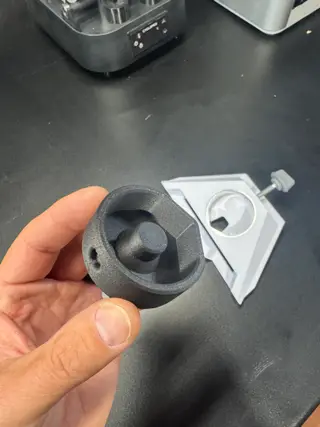

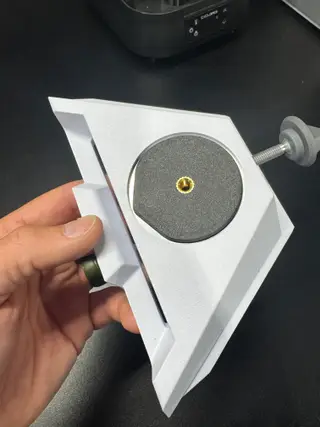

This is an adapter I designed to fit in the pole mount that comes with the Starlink Mini that has a ¼-20 thread insert in it to attach to any tripod or other camera mount (ie clamps, suction cups, really anything that uses a ¼-20 screw). I printed this out of PET-CF for its strength and temperature resistance but any filament should work, I would recommend 6 wall loops and around 25% infill. No Support needed. The threaded insert I used is a Ruthex ¼-20 (https://www.3djake.com/ruthex/threaded-inserts-1-4-20-pieces) but any ¼-20 insert with roughly a 8mm outside diameter should work. I have uploaded a version with no hole to be used as a model to make any other mount off of, its basically just the cup that fits in the pole mount.

Descripción original del autor, publicada en Printables.
