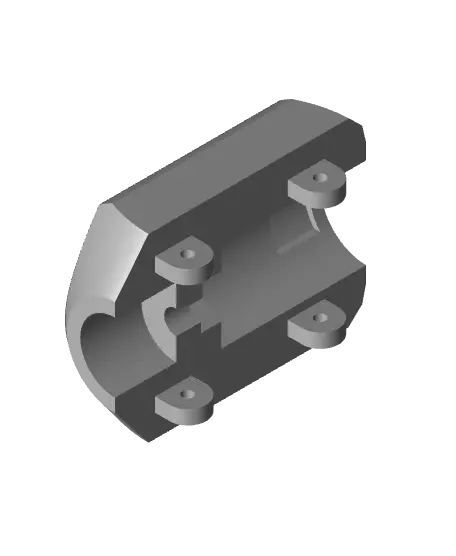

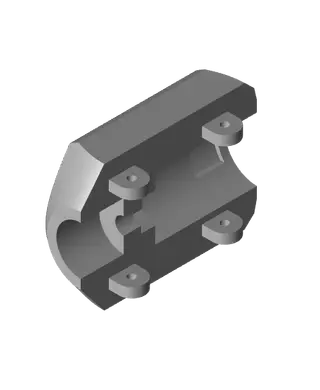

StarLink Dishy Tripod Adapter for 1" post and 3/8-16 Bolt

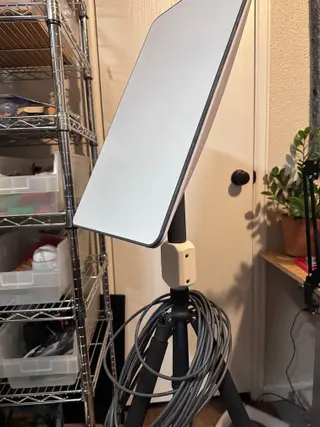

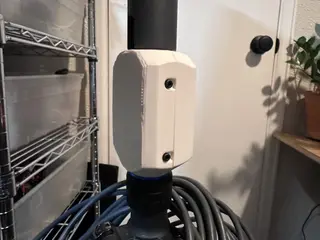

This StarLink adapter will mount Dishy (rectangular) onto a tripod. The bottom hole will fit a 1 inch post (like the one on this tripod (https://www.amazon.com/gp/product/B00NOEH4FS)) and inside the base there's a hole for for a standard large tripod bolt and a recess to hold onto a 3/8-16 nut (https://www.amazon.com/dp/B07KGLDVCR). This should provide a very strong positive clamping force and support the lateral forces on the dish and tripod.

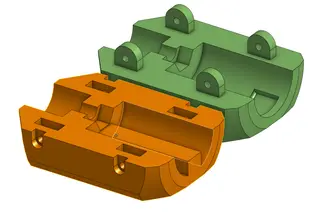

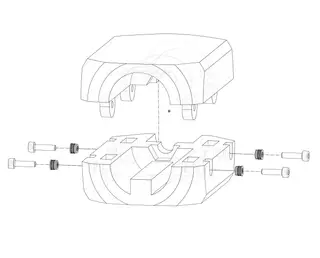

It's designed to be printed without overhangs, in two pieces. I recommend ASA or ABS to survive outdoors, because PLA will soften in the sun and degrade in UV pretty quickly. The two halves are attached with M3x12 screws (https://www.amazon.com/gp/product/B072FKMYMF) and M3 heat-sets (https://www.amazon.com/gp/product/B09TNK8GD6). If you're printing with a 0.4 nozzle you should do at least 4 shells and 50% infill. Larger nozzles require fewer shells.

You could also use strong CA glue to hold the two halves together, with a zip-tie around it all just to make sure it doesn't separate.

If you'd like to work off my CAD file you can find it in OnShape here: https://cad.onshape.com/documents/06ce2764eb8b50d1b2ed4f62/w/06bed2e327c5df4a48a5c7d5/e/b73888040156b4e42777c81d?explodedView=MPgeTWlZRhsawTvVm&renderMode=4&tangentEdgeStyle=1&rightPanel=explodedViewPanel&uiState=655447feeada595258e06023
