Stackable Drawer Storage Box
por euosJad en MakerWorld
Version 2.0 available now! It features built-in drawer stops that prevent the drawers from being accidentally pulled out completely.
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a euosJad.
Archivos (12)
- Version 2 - StackableDrawerBox - Bottom with legs.step STEP · 133 KB
- Version 2 - StackableDrawerBox - Bottom without legs.step STEP · 125 KB
- Version 2 - StackableDrawerBox - Top.step STEP · 167 KB
- Version 2 - StackableDrawerBox - Connector.step STEP · 77 KB
- Version 2 - StackableDrawerBox - Wall Low.step STEP · 291 KB
- StackableDrawerBox - Drawer Low.step STEP · 336 KB
- Version 2 - StackableDrawerBox - Wall High.step STEP · 291 KB
- StackableDrawerBox - Drawer High.step STEP · 336 KB
- StackableDrawerBox-TPU-socks.step STEP · 18 KB
- StackableDrawerBox-TPU-Socks.3mf 3MF · 540 KB
- StackableDrawerBox-Divider.step STEP · 169 KB
- StackableDrawerBox-Divider.3mf 3MF · 38 KB
- Categoría
- Herramientas
- Formatos
- STEP, 3MF
- Descargas
- 19,326
- Publicado
Sobre este modelo

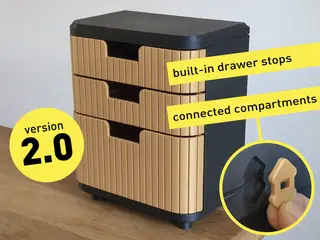

Version 2.0 available now!

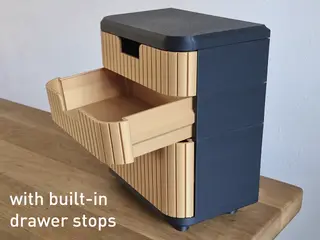

- It features built-in drawer stops that prevent the drawers from being accidentally pulled out completely.

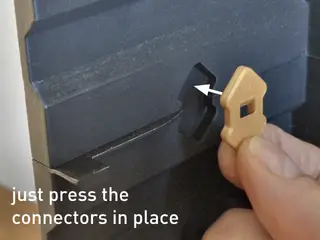

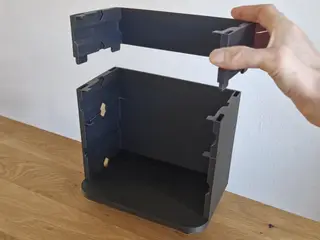

- it includes secure connectors that join the walls together, allowing the Drawer Box to be safely lifted without the risk of it falling apart.
- The drawers are unchanged.
- The dimensions are not changed, so the old parts are still compatible.
This easy-to-assemble model features a bottom and top part and low and high drawers that can be configured to your liking.
An optional divider splits the drawer into nine compartments, ideal for storing small items like screws, nuts or rings. A set of 4 TPU “socks” to slide over the feet provide extra grip (not necessary for everyday use).
Customize the colors and the number of drawers to create the perfect storage solution!
The internal dimensions of the drawers are:
- 187x123x50mm (low drawer)
- 187x123x100mm (high drawer)
The external dimensions are: Width x Depth: 208 x 132,3mm
The heights are:
- Bottom without legs: 15mm
- Bottom with legs: 31,5mm
- Low walls: 53mm
- High walls: 103mm
- Top: 15mm

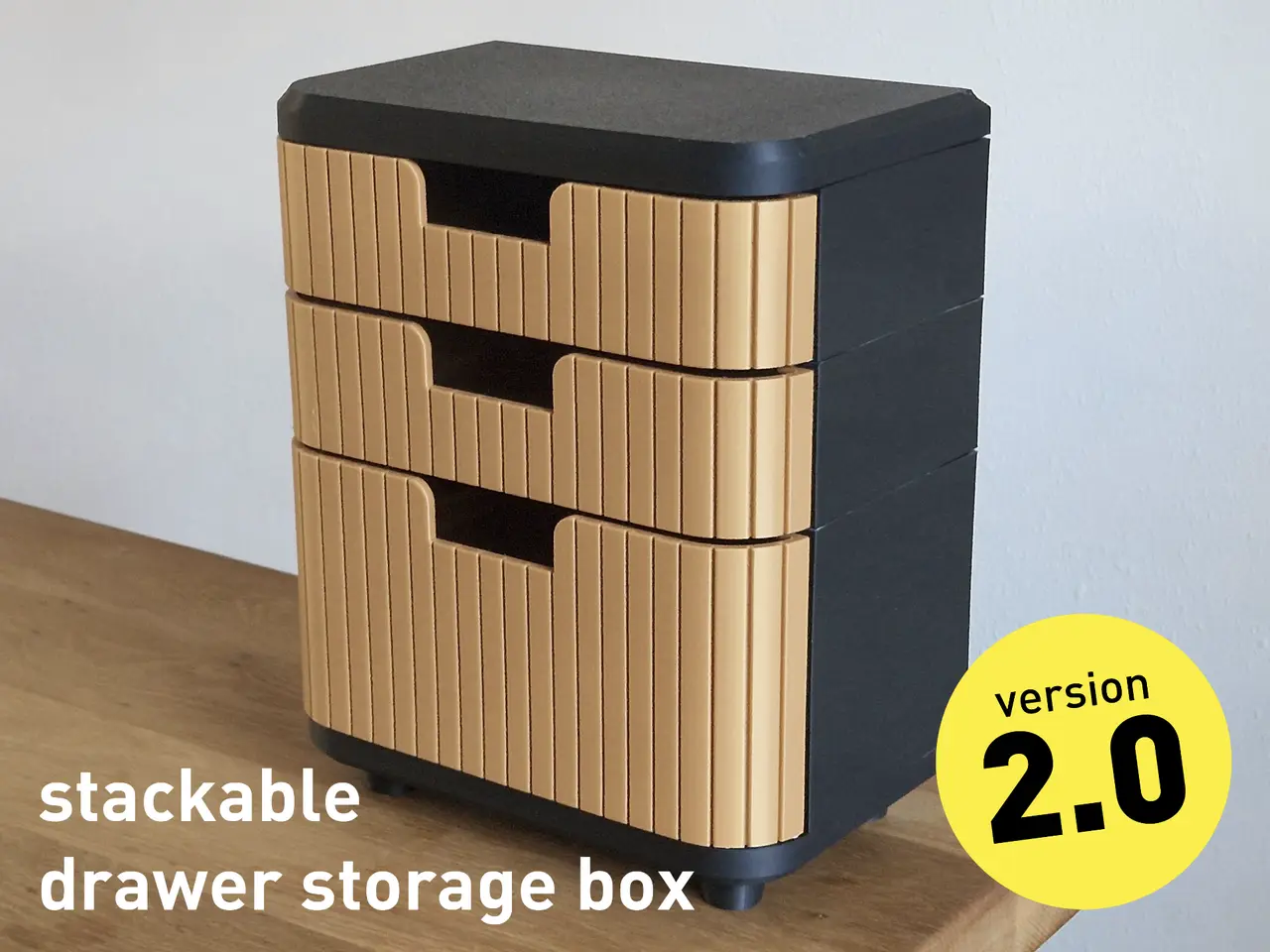

So the configuration as in the main photo is 208x132,3x255,5mm
