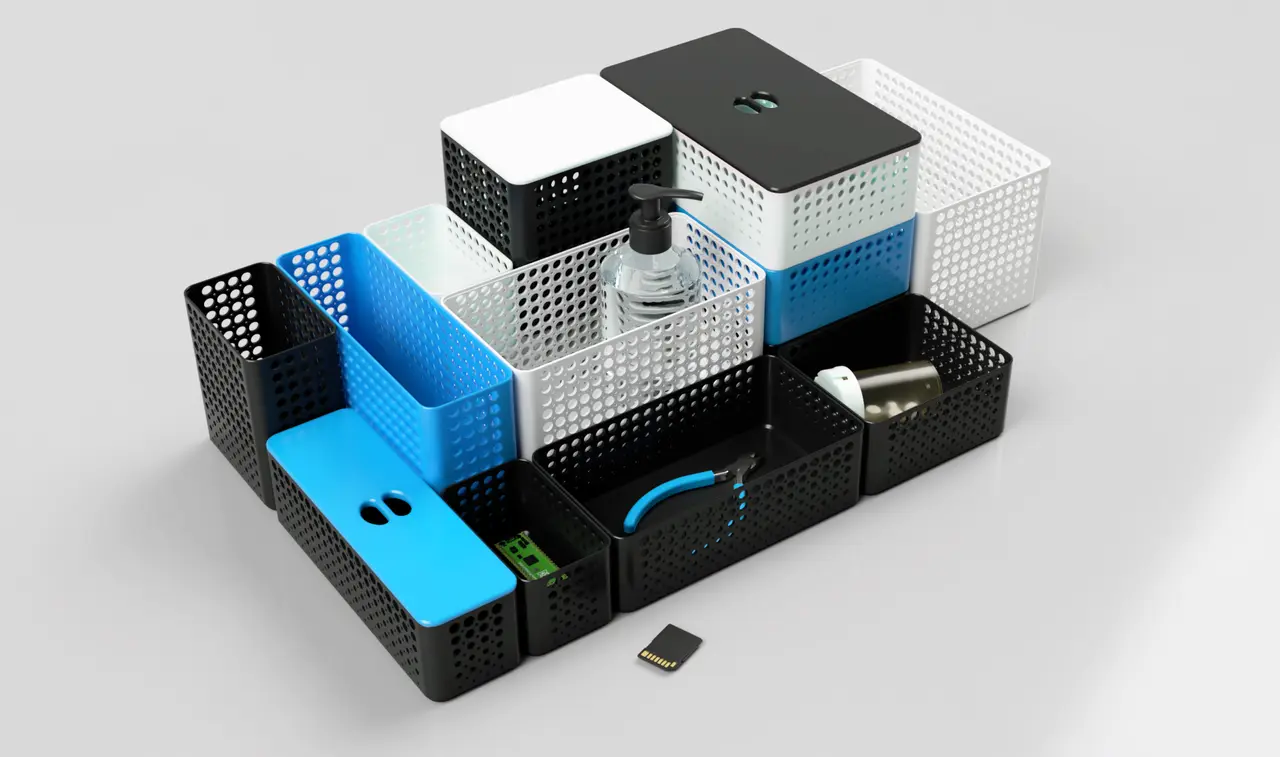

Stackable Baskets Organizer System with Lids (Circle Edition)

I created the stackable version of my Organizer/Basket for Drawer at the request of a user. Model Stackable Baskets with lids. Length [mm]Width [mm]Height [mm] Model XL High Profile204.0124.5117.5 Standard Profile60.0 Low Profile31.25 Model XL Square High Profile187.5187.5117.5 Standard Profile60.0 Low Profile31.25 Model L High Profile187.5101.5117.5 Standard Profile60.0 Low Profile31.25 Model M High Profile124.5101.5117.5 Standard Profile60.0 Low Profile31.25 Model M Long High Profile204.062.0117.5 Standard Profile60.0 Low Profile31.25 Model S High Profile101.562.0117.5 Standard Profile60.0 Low Profile31.25 Each of the baskets has two lid variants. One with and one without a handle. Printing All parts can be printed without supports. A 0.4 mm nozzle and a layer height of 0.20 mm with printer default settings for infill, etc. are sufficient for printing. If you use the STL files, you should pay attention to the alignment of the lids. You should print them with the top side facing down (on the print bed). Assembly There is nothing to assemble. They are ready to use. Remix & Scaling To remix the model or make your own changes, you will find the FreeCad project in the files as always. If you scale the size of the boxes, make sure that you maintain the aspect ratios in length, width and height, as otherwise the circles in the side walls could overhang too much and the boxes may no longer print correctly. If you need special sizes, don't hesitate to write me a message or leave one in the comments.

Updates 2024/03/14 A 187.5 x 187.5 version was added at the request of NDG@NDG_1072766.
