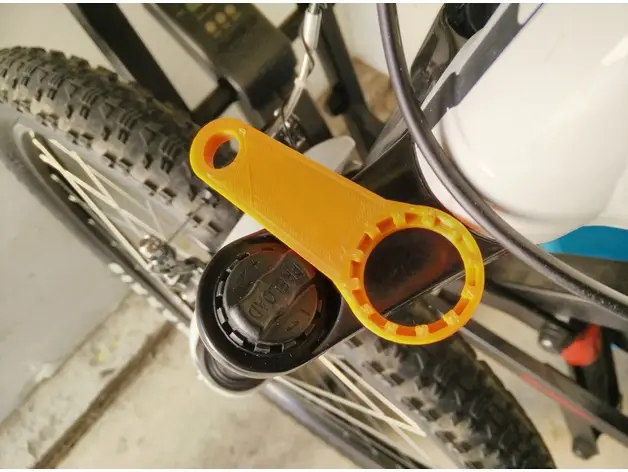

SR Suntour Fork Wrench
por stevehlau en Printables
I need to service my fork recently and I found this (https://www.thingiverse.com/thing:883685) on Thingiverse, so I…
Licencia
Solo uso personalCC BY-NC-ND 4.0 — Atribución, no comercial, sin derivadas
Solo para uso personal, sin modificarlo y dando crédito. No se permite vender ni redistribuir cambios.
Al descargar aceptas respetar la licencia y dar crédito a stevehlau.
Archivos (3)
- Categoría
- Herramientas
- Formatos
- STL, 3MF, GCODE
- Descargas
- 2,179
- Publicado
Sobre este modelo

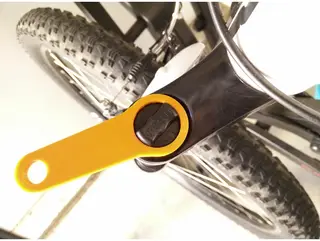

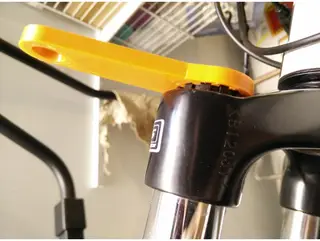

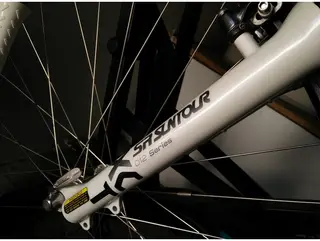

I need to service my fork recently and I found this (https://www.thingiverse.com/thing:883685) on Thingiverse, so I print it out and unfortunately; it is too big and it does not fit my cheap shock. SAD...

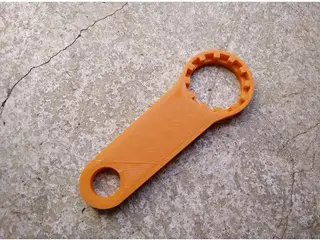

I then fire up my trusty CAD program and create my own. I am not sure how many people need one, but here it is. I printed it in ABS and I am sure PETG should work well too. Happy Printing.
Print instructions Printer Brand: Prusa
Printer: i3 MK2S
Rafts: Doesn't Matter
Supports: Doesn't Matter
Resolution: 200 microns
Infill: 20%
Tips:
More perimeters is necessary to construct a stronger teeth around the ring.
