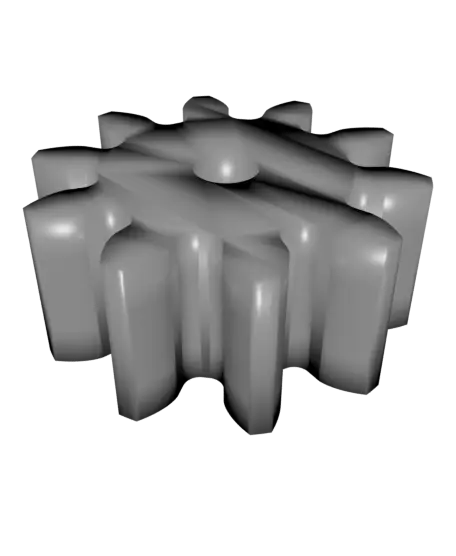

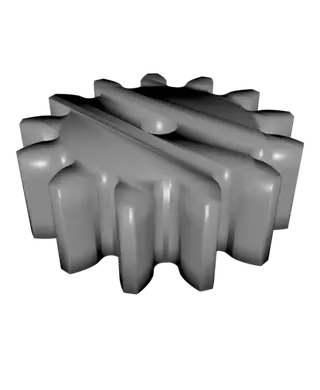

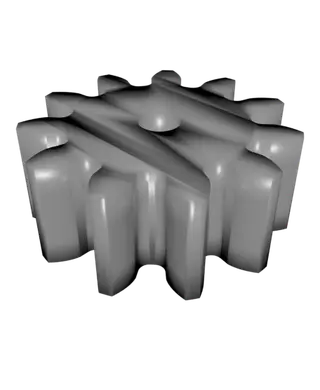

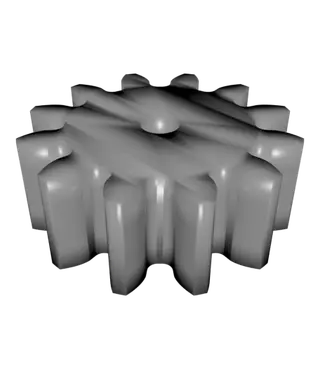

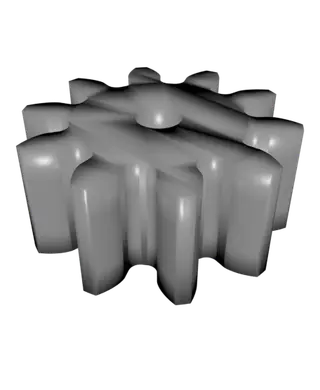

Spur gears set #1 - Module 2 (11 gears)
A set of 11 gears with the following characteristics:
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Andrea P.
Archivos (11)
- Gears_set v1_Gears_set v1_Spur Gear (10 teeth).stl STL · 306 KB
- Gears_set v1_Gears_set v1_Spur Gear (11 teeth).stl STL · 333 KB
- Gears_set v1_Gears_set v1_Spur Gear (12 teeth).stl STL · 366 KB
- Gears_set v1_Gears_set v1_Spur Gear (13 teeth).stl STL · 394 KB
- Gears_set v1_Gears_set v1_Spur Gear (14 teeth).stl STL · 428 KB
- Gears_set v1_Gears_set v1_Spur Gear (15 teeth).stl STL · 457 KB
- Gears_set v1_Gears_set v1_Spur Gear (16 teeth).stl STL · 436 KB
- Gears_set v1_Gears_set v1_Spur Gear (17 teeth).stl STL · 461 KB
- Gears_set v1_Gears_set v1_Spur Gear (18 teeth).stl STL · 487 KB
- Gears_set v1_Gears_set v1_Spur Gear (19 teeth).stl STL · 512 KB
- Gears_set v1_Gears_set v1_Spur Gear (20 teeth).stl STL · 538 KB
- Categoría
- Repuestos
- Formatos
- STL
- Descargas
- 682
- Publicado
Sobre este modelo

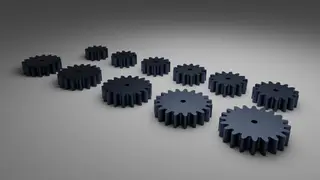

A set of 11 gears with the following characteristics:
Gear module 2mm - Inner hole 4mm - Number of teeth variable from 10 to 20 - Thickness 10mm
To correctly couple them, the axis of the couple you consider, shall be placed at a distance given by:
axis_distance [mm] = number_of_teeth_grear_1 + number_of_teeth_gear_2
Note: this formula is valid only for this specific set of gears with module 2.
Descripción original del autor, publicada en Thangs.
