Sobre este modelo

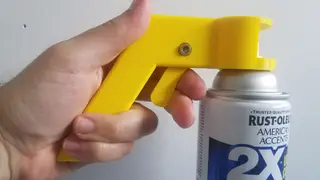

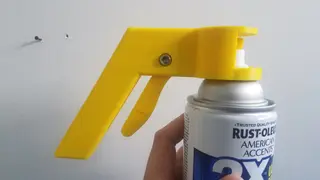

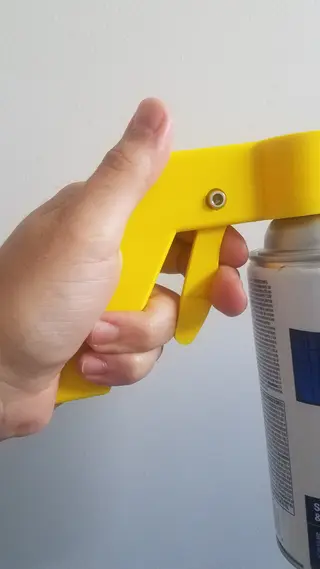

I liked this handle (first seen on Thingiverse), but the trigger is too long. I decided to make a shorter version to use only 1 or 2 fingers to pull it. This way it allows a better and more stable grip on the handle.

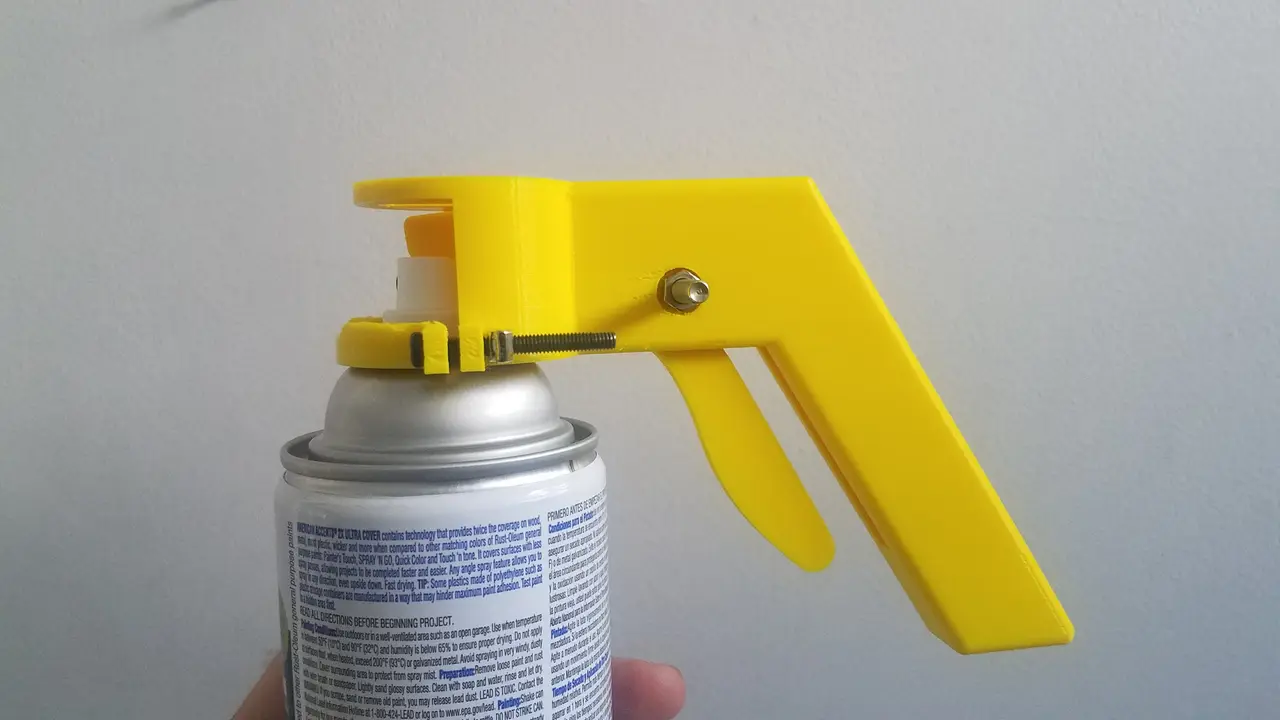

To increase the durability further, the trigger is to be printed horizontally, and attaches to the handle with a M5x15mm bolt that acts as a pivot and a M5 nut.

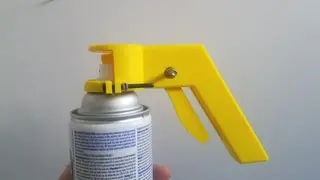

There is a version of the handle that allows to use an M4 bolt and nut to compress the collar, no zip ties needed.
OBS: This is a remixed version of a model published on Thingiverse. I'd give the credits to the creator, but I couldn't find this model publishe here at MyMiniFactory.
=====
If you'd like to support me you can post a make, comment and/or pay me a coffee at PayPal
