Spiral Lamp - Twisted Rib E27 Lamp Shade with Table and Wall Stand

A soft barrel-shaped shade wrapped in 20 helical ribs with a 60-degree twist. Printed in white or translucent filament the ribs glow and throw a gentle spiral of light. The matching stand continues the theme: a smooth swan-neck arm, a twisted ribbed column and a soft rounded base.

One design, three ways to use it:

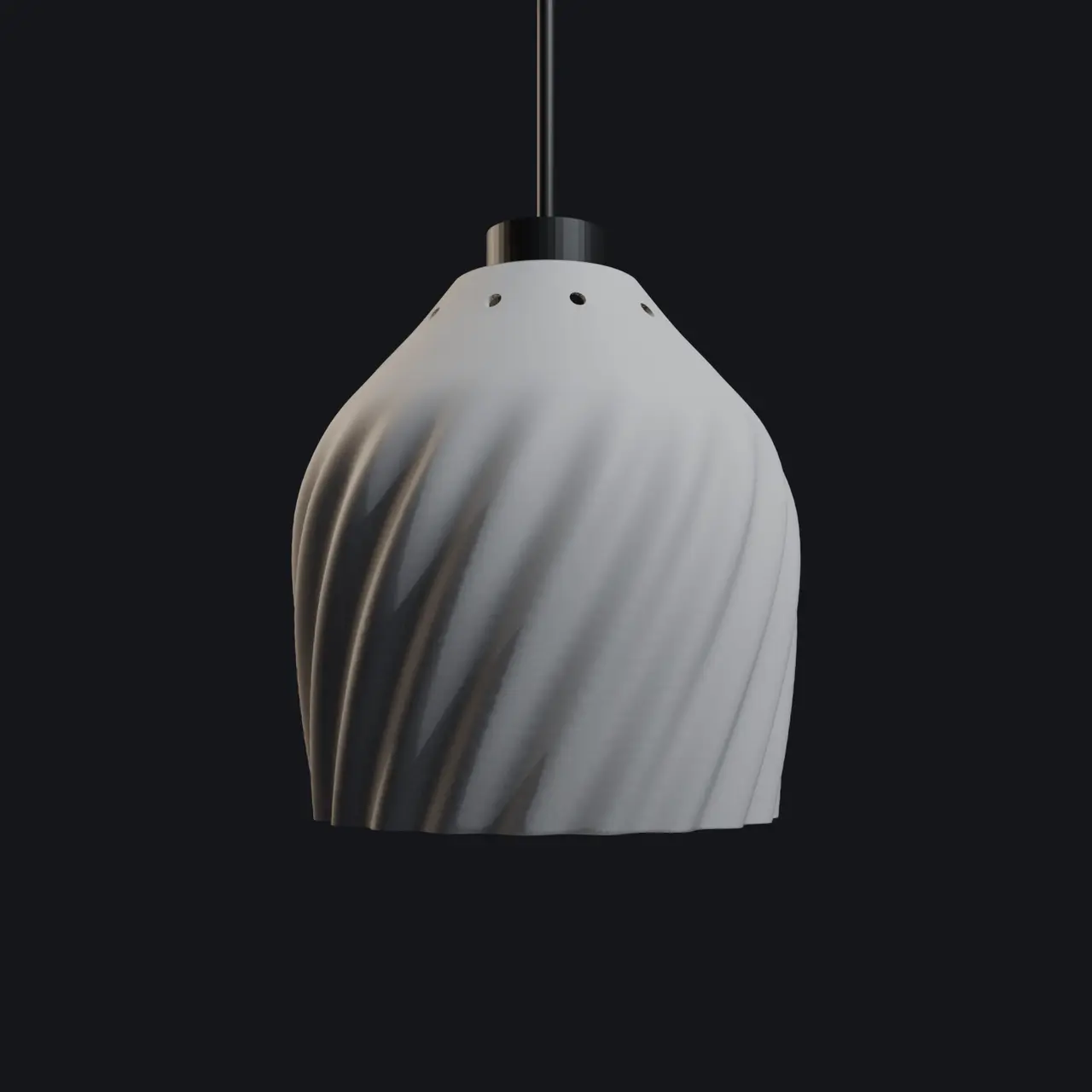

- PENDANT: hang the shade from the ceiling on any standard E27 pendant cord set.

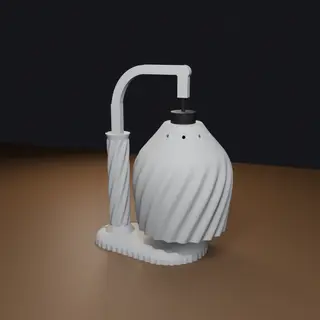

- TABLE LAMP: the shade hangs from the arm of a minimalist stand. The shade hangs over a wide base,

so the lamp is very stable (it needs a tilt of about 24 degrees to tip over).

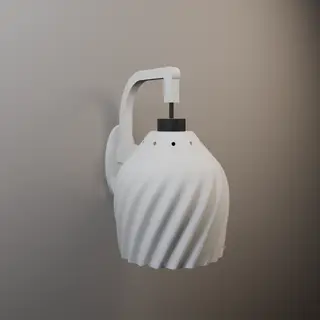

- WALL LAMP: the same arm drops into a wall plate fixed with two screws.

No rewiring, no glue, no screws in the lamp itself: you only need a standard E27 pendant cord set

(cable + lamp holder with shade ring) and an LED bulb. The cable snaps into hidden channels of the

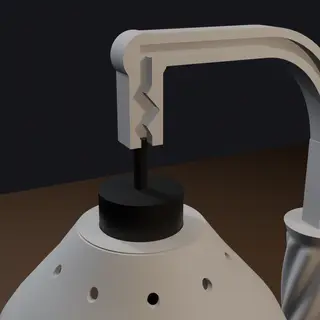

stand, and a zig-zag cable grip at the tip of the arm holds the shade at the height you choose.

Every part prints without supports and is already oriented in the STL files.

WHAT TO PRINT

- Pendant lamp ...... Shade

- Table lamp ........ Shade + Arm + Table_Column + Table_Base

- Wall lamp ......... Shade + Arm + Wall_Plate

PARAMETERS

- Shade: 164 mm diameter x 176 mm high. 20 helical ribs (60 deg twist), 2.2 mm wall, 10 small vent holes on the shoulder.

- Stand: smooth swan-neck arm, twisted ribbed column, rounded wavy base, oval wall plate.

- Mounting hole: 40.5 mm diameter with a 3 mm thick flat clamping area (standard E27 holder

with threaded sleeve and shade ring).

- Table lamp assembled: 243 x 164 x 310 mm (L x W x H), about 769 g printed

including the shade. Static tip-over angle about 24 deg in the weakest direction.

- Wall lamp: projects 216 mm from the wall, 265 mm high in total.

- Joints: 12 x 14 mm rectangular pegs in 12.5 x 14.5 mm sockets (0.25 mm clearance per side).

- Cable channel: snap-in, 5.4 mm mouth / 6.8 mm inside, for round 2-core cords of 6-7 mm.

- Bulb: A60 LED (60 x 108 mm) or LED filament ST64 / G80; at least 24 mm from glass to plastic.

- Approximate filament: shade 224 g, arm 36 g, column 107 g,

base 290 g, wall plate 53 g.
