Spice Rack Pullout with Metal Rods

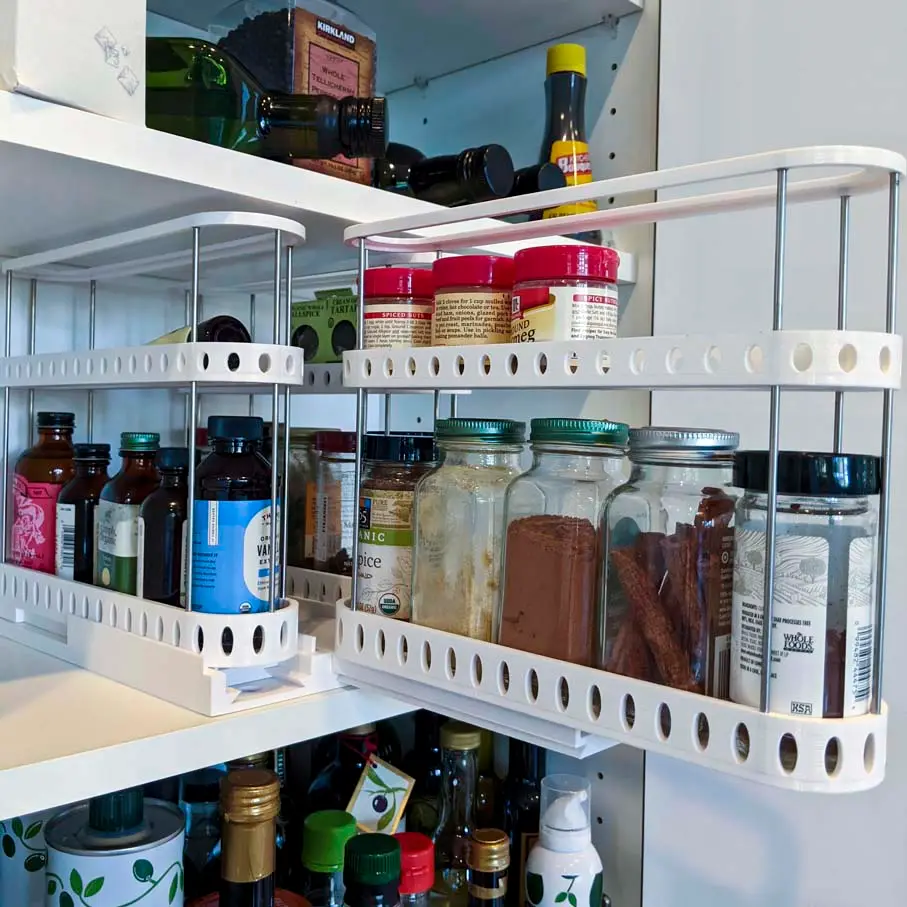

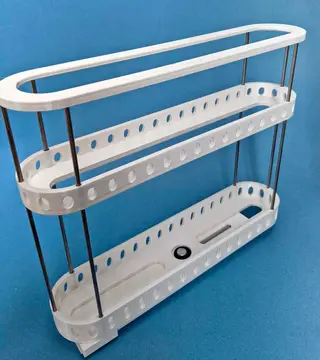

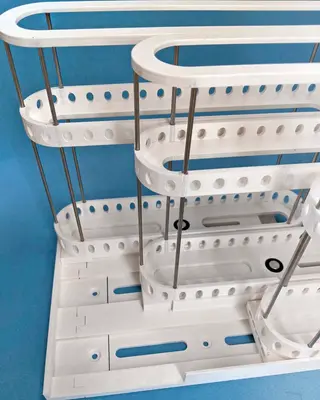

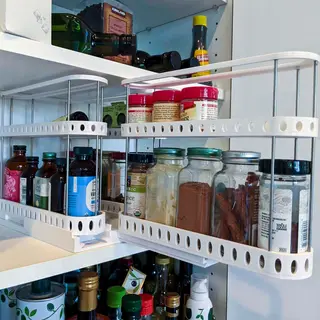

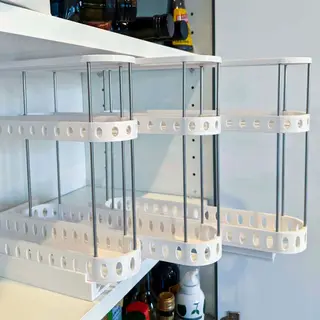

I am glad so many of you are enjoying this design. No, this design is not available to license or to sell. I redesigned my original Spice Rack Pullout I designed this pullout spice rack to allow for one, two, or three pull out shelves for spices. The rack pulls out and rotates 90 degrees in either direction just like the original design. There are two shelves on the rack which allow for the short spice containers on the top and larger round or square bottles on the bottom. You will need to print one, two, or three of all the four parts that don't end in XN.stl based on whether you are building a single, double, or triple spice rack. You will need to print one of trackXN.stl and endtrackendXN parts, where ‘N’ is 1, 2, or 3 based on the number of spice racks you wish to print. You can modify the lengths of the stainless steel rods for your needs, but I used: - 6 x 3mm x 136mm for the bottom shelf - 6 x 3mm x 63mm for the top shelf

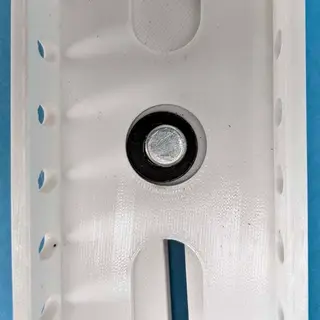

Hardware parts - Small flat head screws to fasten bottom rail and end-cap to cabinet. - 2 fender washers - Book binding post (15mm size) or equivalent. If using nut and bolt, you may have to cut the bolt to length to prevent it from rubbing against the track. - 3mm stainless steel rods. I purchased these: https://www.amazon.com/gp/product/B085QMML79/
