Spherical Gears CV joint
por 6 9 en Thingiverse
I made this as to see if this mechanism could've been used for my mechanical snake design, but it ended up being too bulky and not quite reliable, so I went with a simple UV joint for that. These are basically two spur gears that their teeth profiles got sweep toward the center of an arch or a...
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a 6 9.
Archivos (1)
- Categoría
- Educación
- Formatos
- STL
- Descargas (todas las plataformas)
- 687
- Publicado
También en
Sobre este modelo

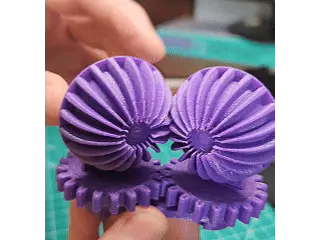

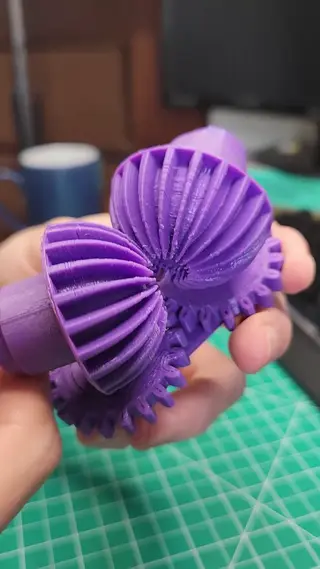

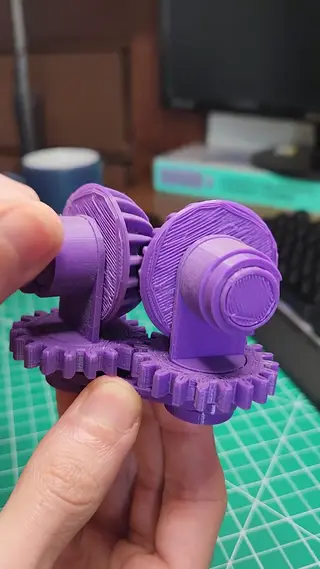

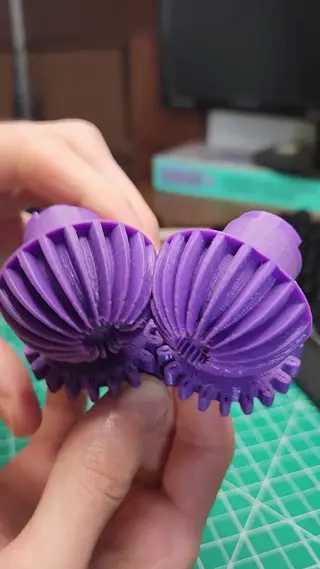

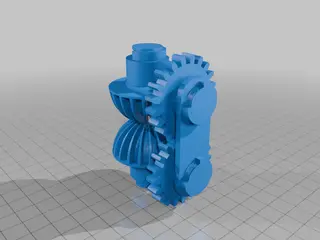

I made this as to see if this mechanism could've been used for my mechanical snake design, but it ended up being too bulky and not quite reliable, so I went with a simple UV joint for that. These are basically two spur gears that their teeth profiles got sweep toward the center of an arch or a sphere, then they are jointly linked with the use of two simple flat spur gears to keep them moving in a rolling joint fashion. All the parts are on one file, just split them up and print them with default settings. Here it is in action on my TikTok here https://www.tiktok.com/@3dmakerking69/video/7691364297036942606?is_from_webapp=1&sender_device=pc Printer- QIDI Xmax model 1 Filament- PLA Purple settings- Default Hardware- Super Glue
