Spherical Differential
por savage rodent en Thingiverse
Just to repeat, this is a work in progress. At some point I will give it a drive shaft etc. However for the time being I've just given it a stand so you can spin the ring wheel by hand till your hart's content :) The photos are out of date. Check out the stl of the assembled parts for the most up...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a savage rodent.
Archivos (9)
- frame_half_00.STL STL · 494 KB
- gear_spider_00_.STL STL · 317 KB
- gear_axle_02_.STL STL · 328 KB
- core_half_00.STL STL · 204 KB
- stand_half_02.STL STL · 177 KB
- stand_middle_02.STL STL · 19 KB
- wheel_01.STL STL · 1,5 MB
- NOT_FOR_PRINTING_visulization_only_01.STL STL · 4,7 MB
- NOT_FOR_PRINTING_visulization_only_EX.STL STL · 4,7 MB
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 25,369
- Publicado
Sobre este modelo

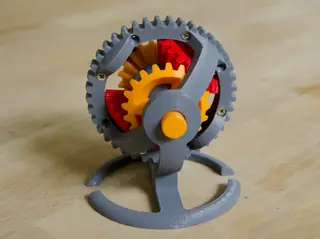

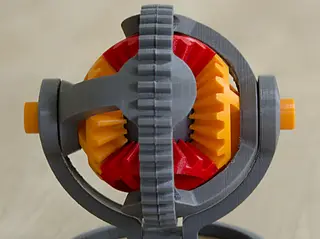

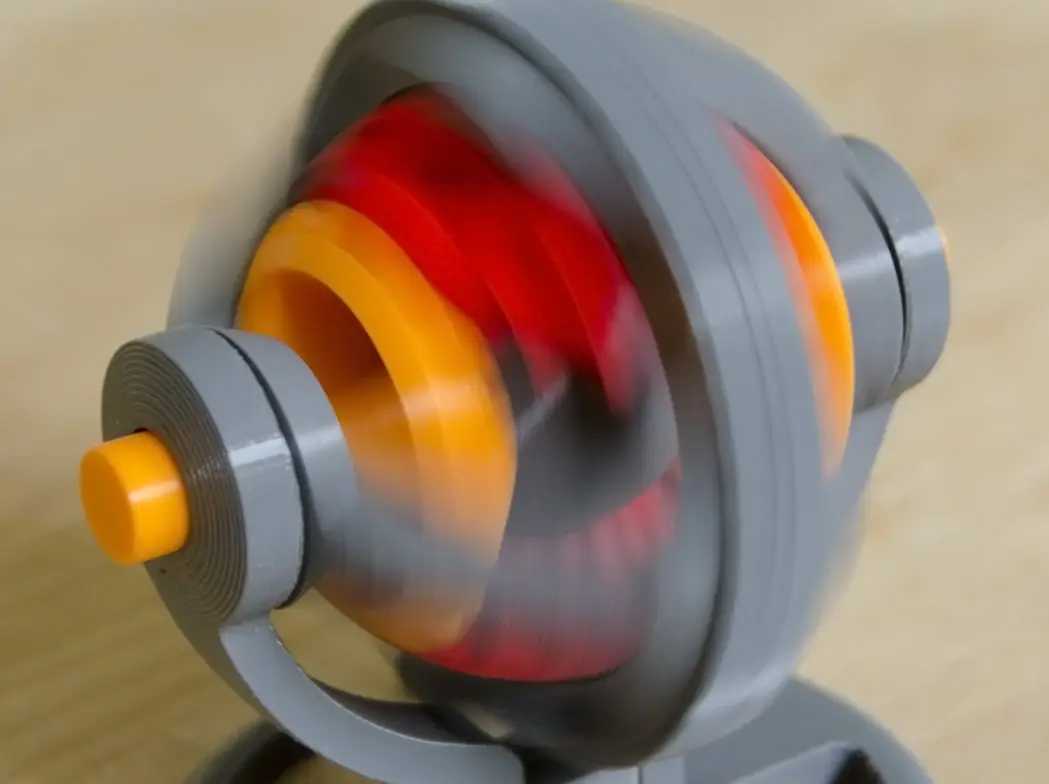

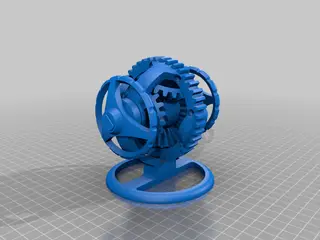

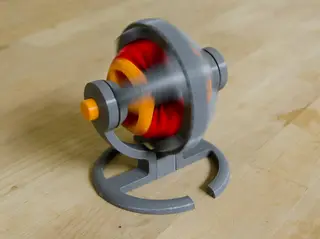

Just to repeat, this is a work in progress. At some point I will give it a drive shaft etc. However for the time being I've just given it a stand so you can spin the ring wheel by hand till your hart's content :) The photos are out of date. Check out the stl of the assembled parts for the most up to date view. I'm using four 3x10 screws to hold the frame together and one 3x20 to hold the two halves of the core together.
Descripción original del autor, publicada en Thingiverse.
